Alignment Specifications

WARNING: This page is about a different car, the 2004 Dodge Pickup, 2004 Dodge Cab & Chassis, 2003 Dodge Pickup, and 2003 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

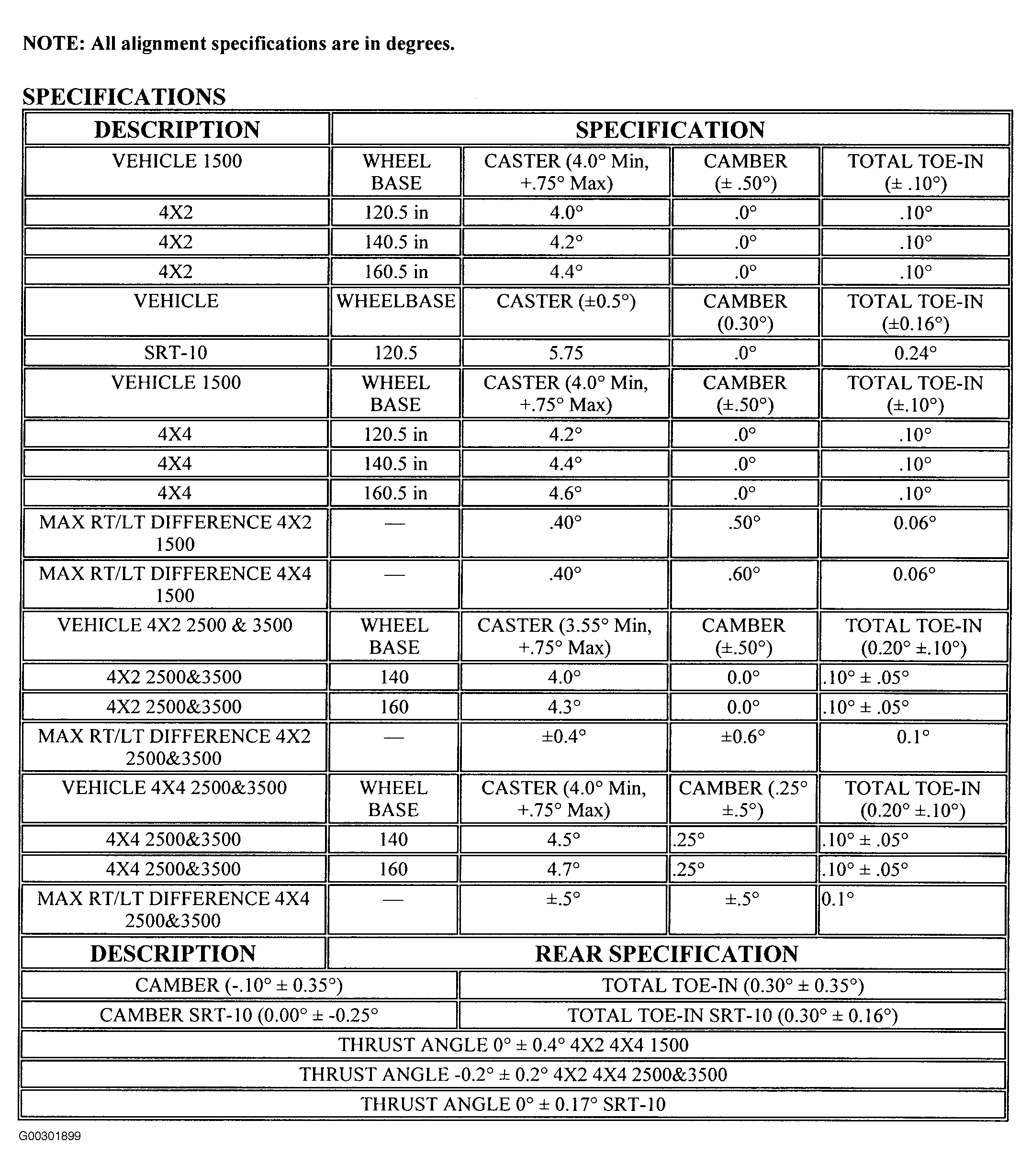

Fig 1: Wheel Alignment Specifications (2003)

Courtesy of DAIMLERCHRYSLER CORPORATION

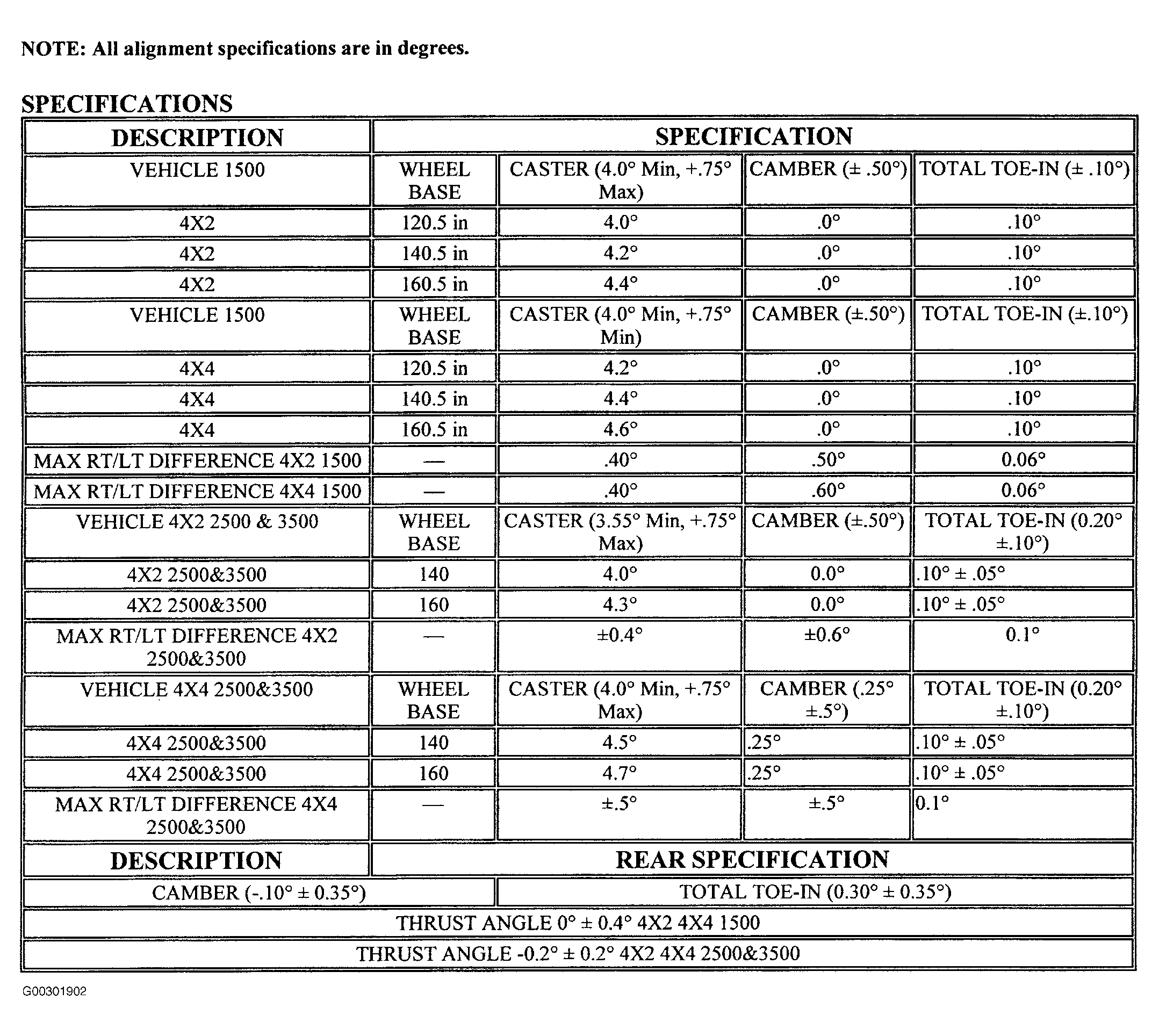

Fig 2: Wheel Alignment Specifications (2004)

Courtesy of DAIMLERCHRYSLER CORPORATION
