Diesel Engine

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

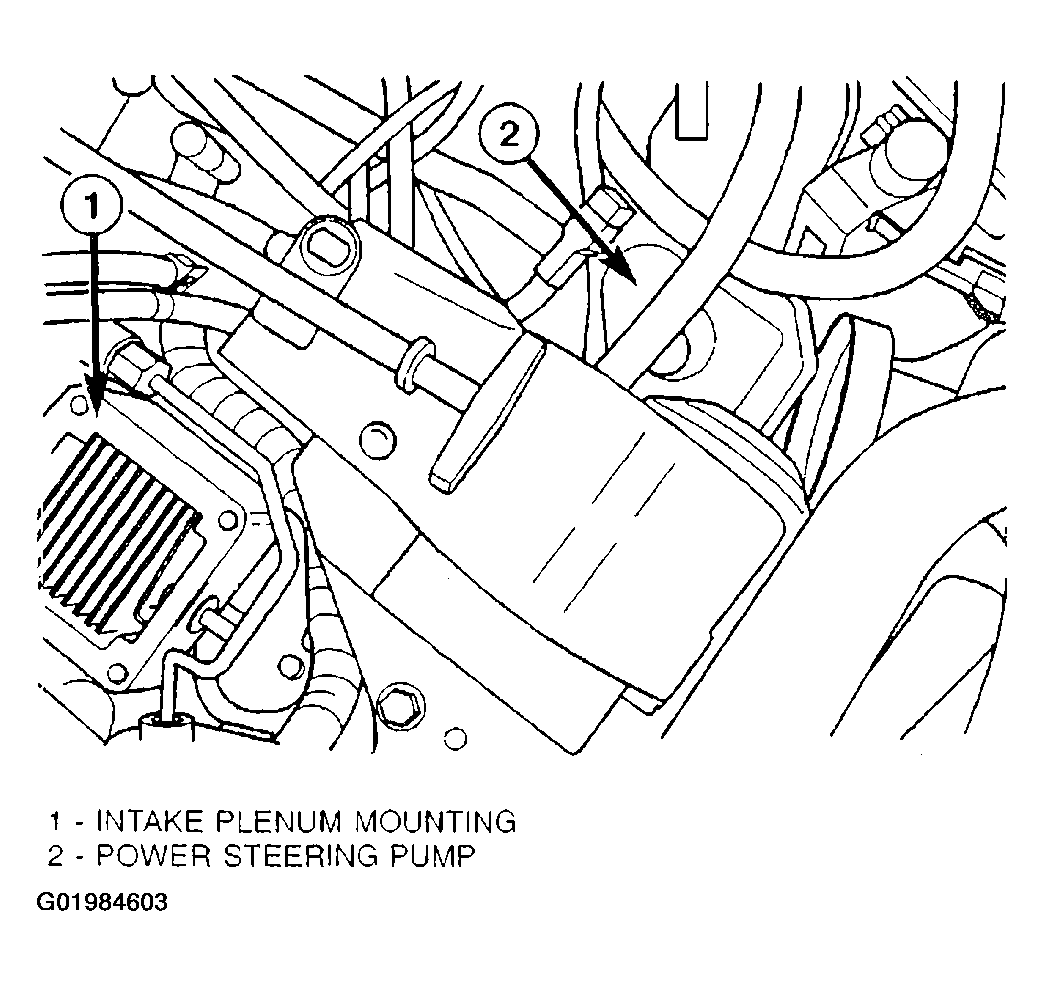

  1. Set the power steering pump in place in the engine compartment from the top. (Figure)
  2. Install the inner cooler tube.
  3. Tighten the inner cooler tube clamp at the radiator support side.
  4. Install the 6 intake plenum bolts. (Figure)
  5. Tighten the inner cooler tube clamp at the intake plenum.
  6. Install 3 pump mounting bolts through the pulley access holes. Tighten the bolts to 28 N.m (21 ft. lbs.).
  7. Tighten the pump bracket to the block.
  8. Reconnect the pressure line and return hose to the pump and reservoir. Tighten the pressure line to 37 N.m (27 ft. lbs.). (Figure)
  9. Install the serpentine drive belt.
  10. Fill the power steering pump, (Refer to STANDARD PROCEDURE ).
