Control Module, A/T

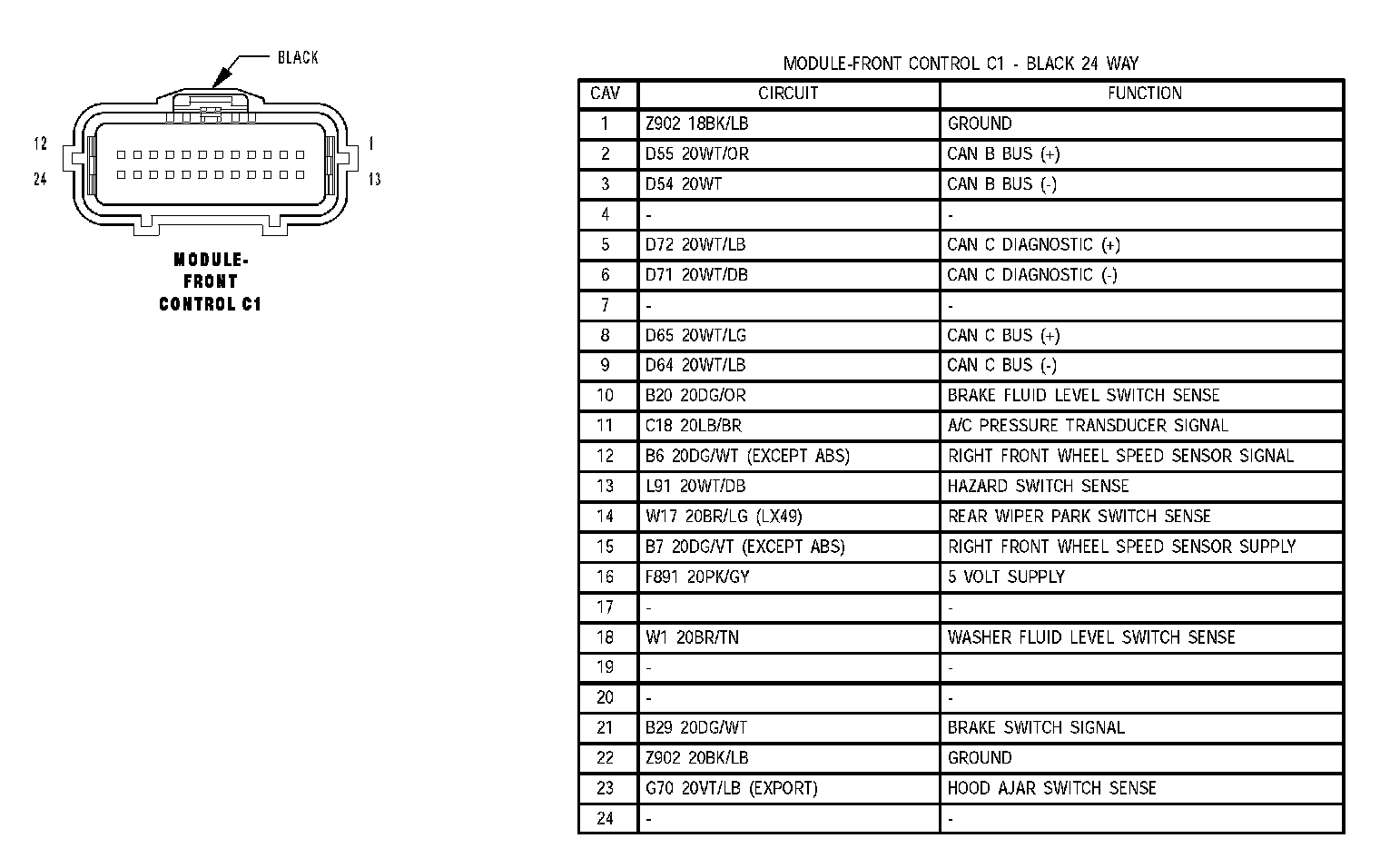

Module - Front Control C1:



Module - Front Control C2:

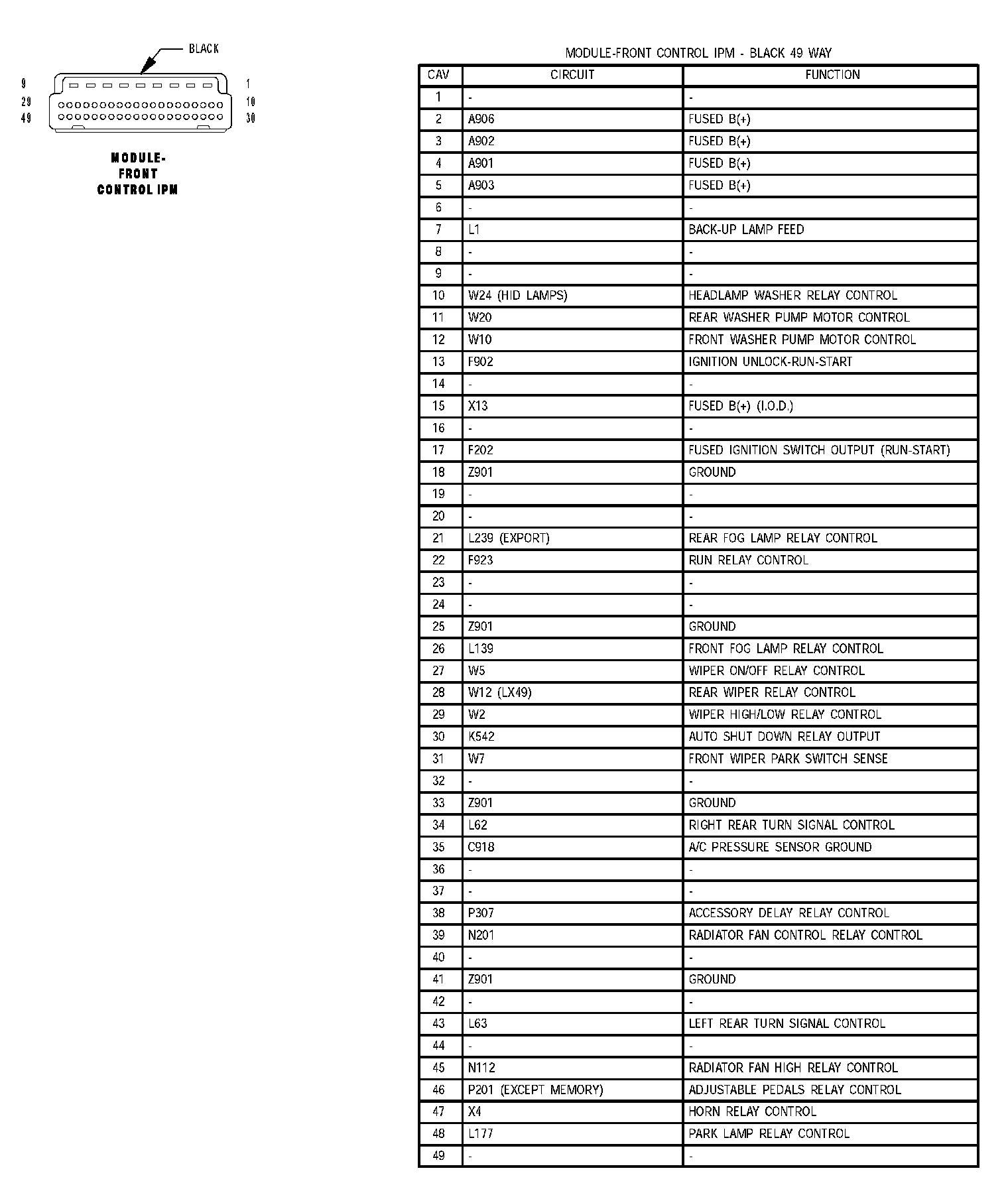

Module - Front Control IPM:



Module - Transmission Control C1 (NAG1):



Module - Transmission Control C2 (NAG1):
