Power Distribution Module

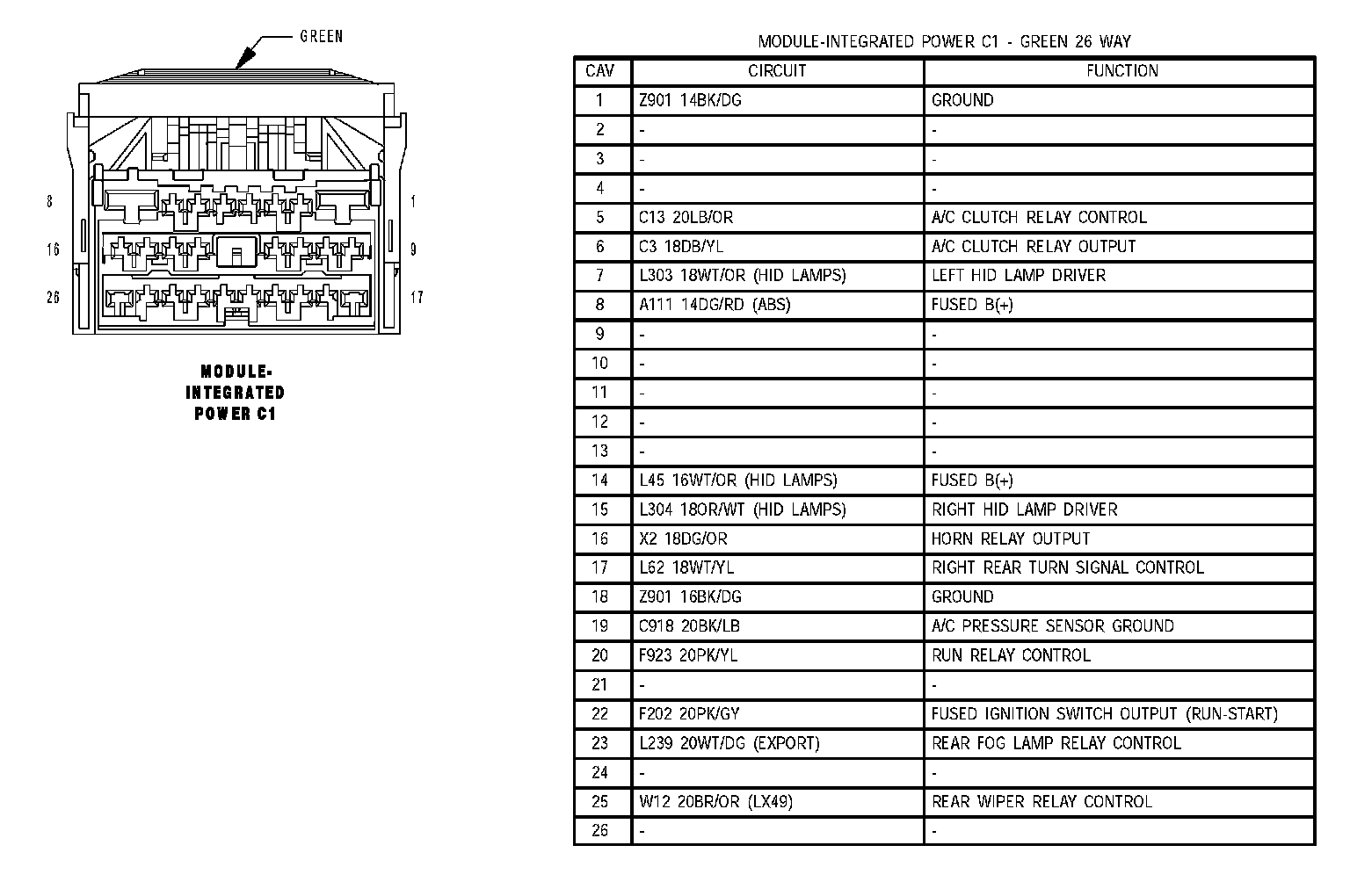

Module - Integrated Power C1:



Module - Integrated Power C2:



Module - Integrated Power C3:

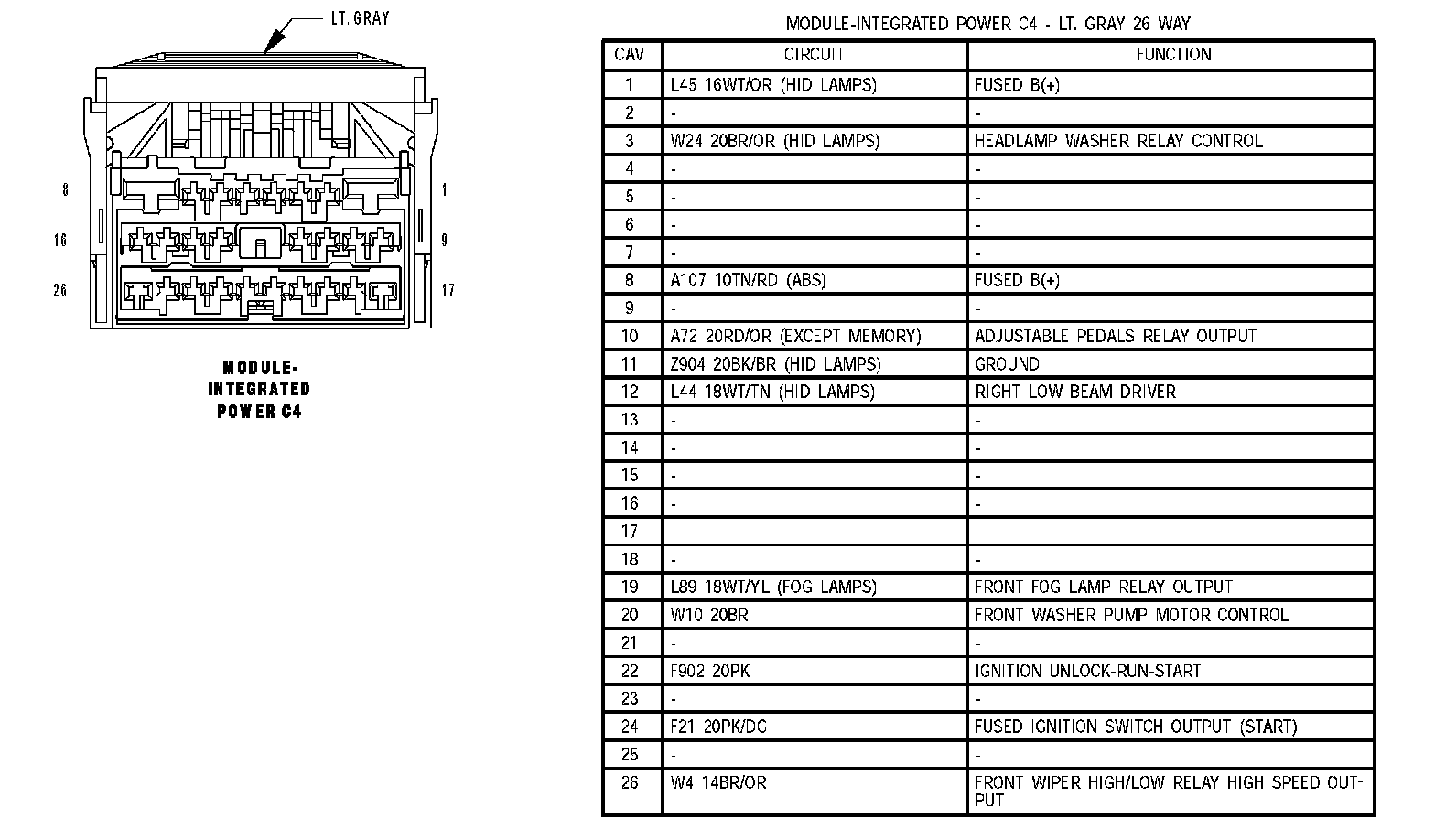

Module - Integrated Power C4:

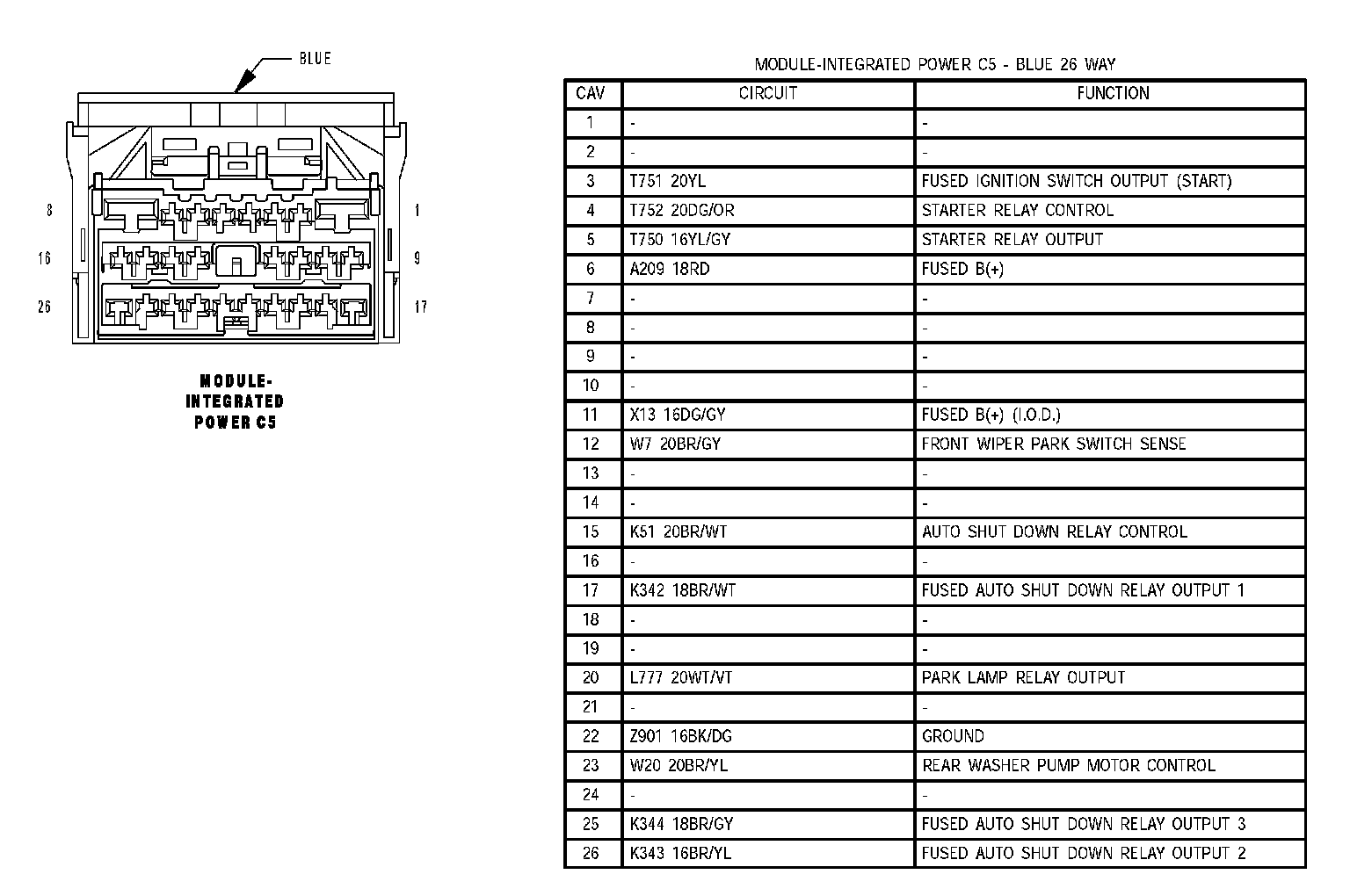

Module - Integrated Power C5:
