Wheel Alignment Specifications

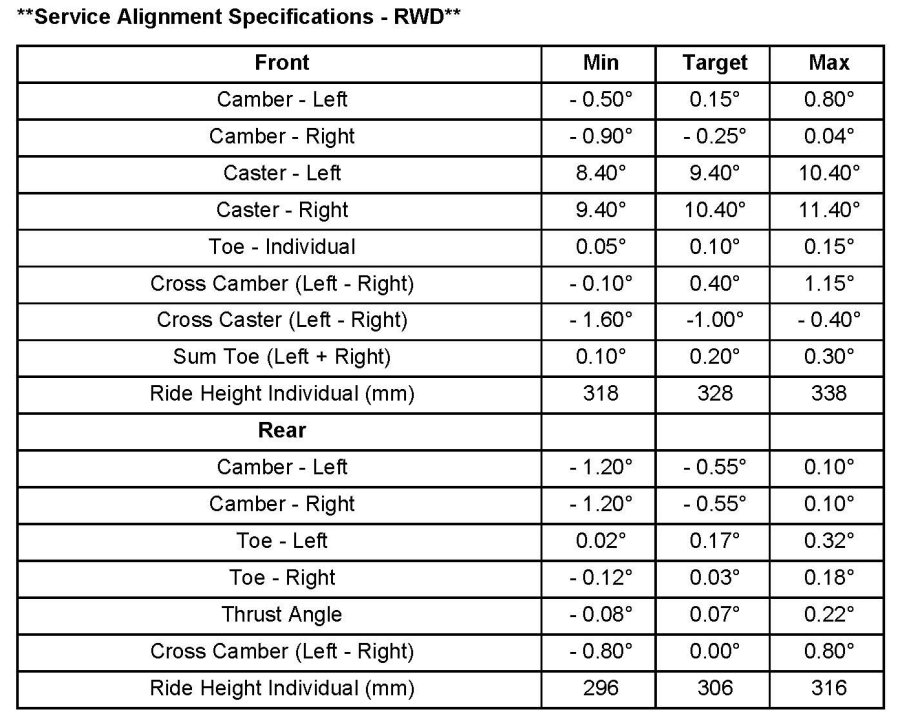

RWD:







Rear-Wheel Drive (RWD)

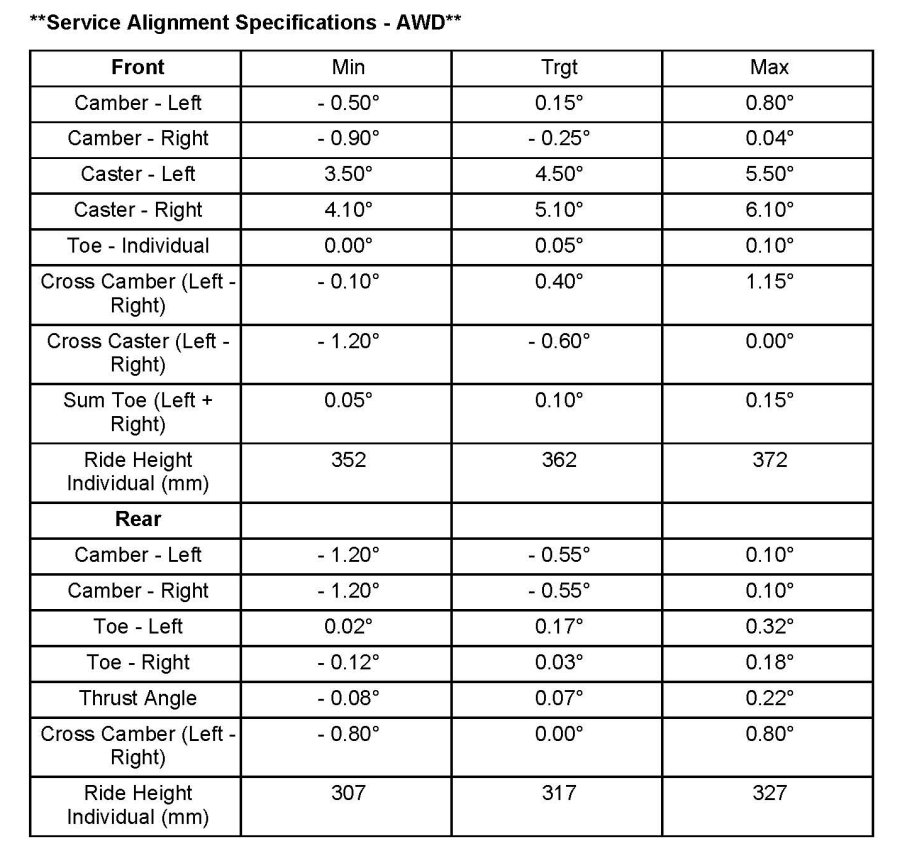

AWD:






All-Wheel Drive (AWD)

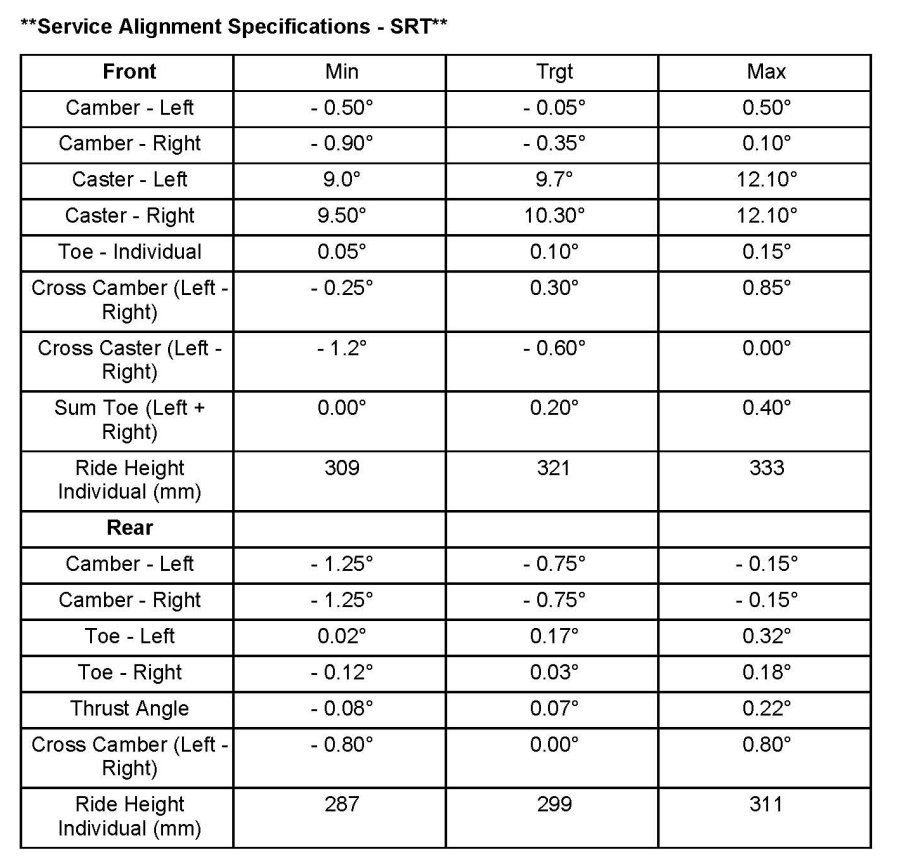

SRT:







SRT
