Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL

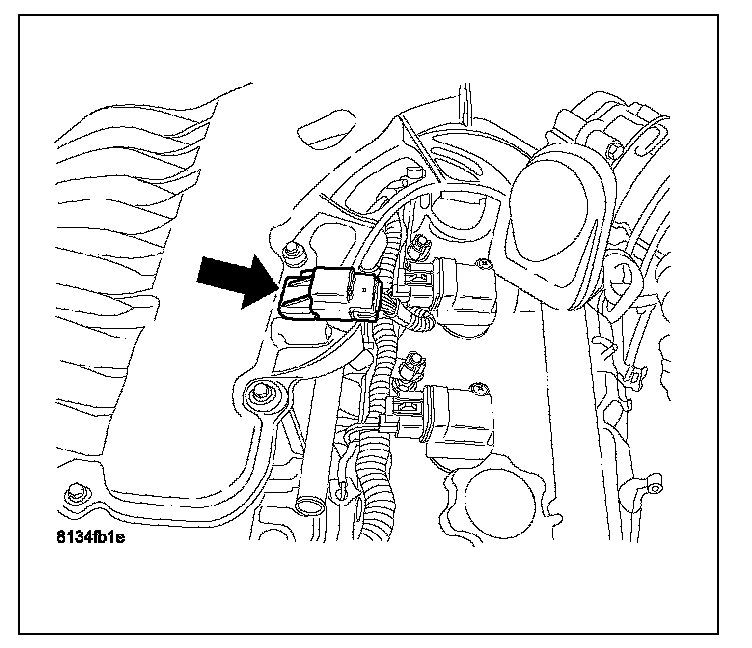

1. Sensor location.
2. Disconnect negative battery cable.




3. Unlock the electrical connector.

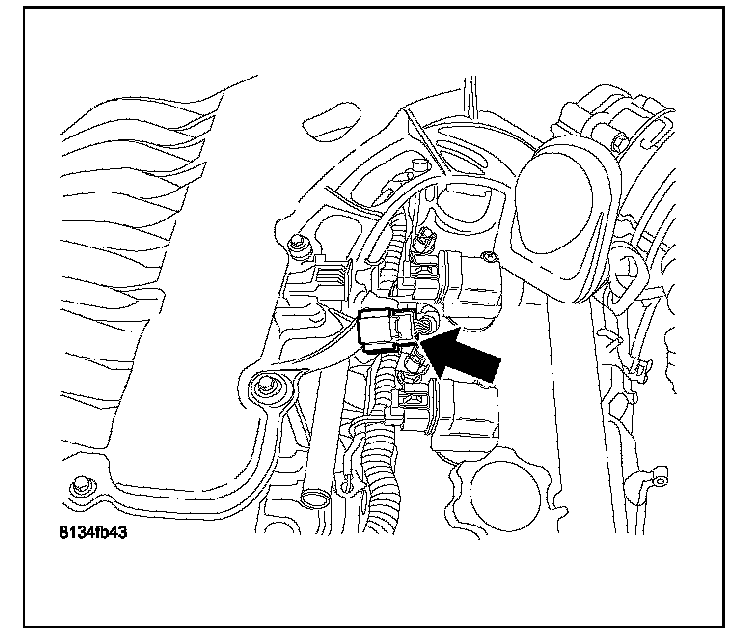

4. Disconnect the electrical connector.

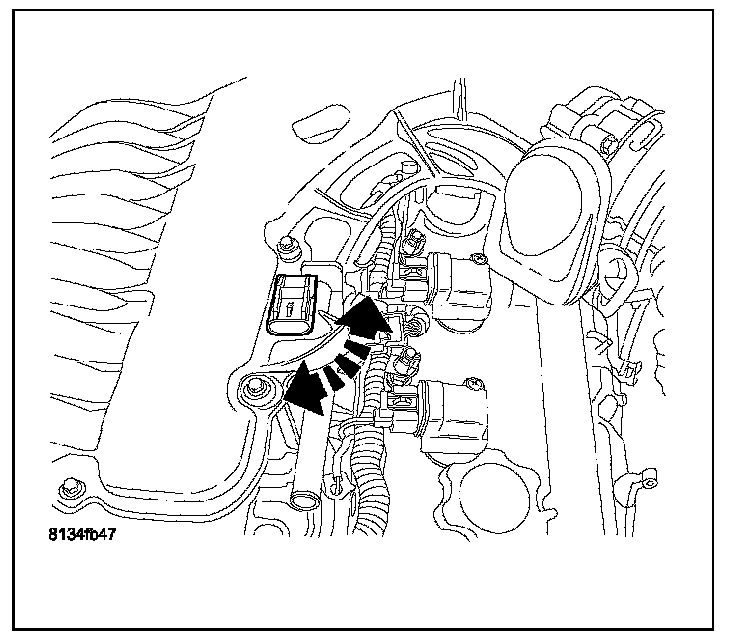

5. Rotate sensor 1/4 turn clockwise.
6. Pull up on sensor.

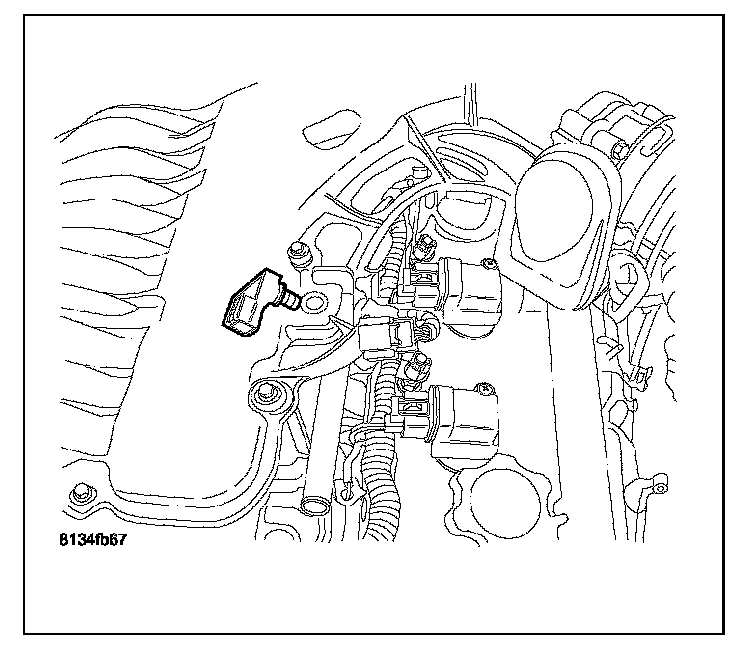

7. Remove sensor

INSTALLATION




1. Clean MAP sensor mounting hole at intake manifold.
2. Check MAP sensor O-ring seal for cuts or tears.

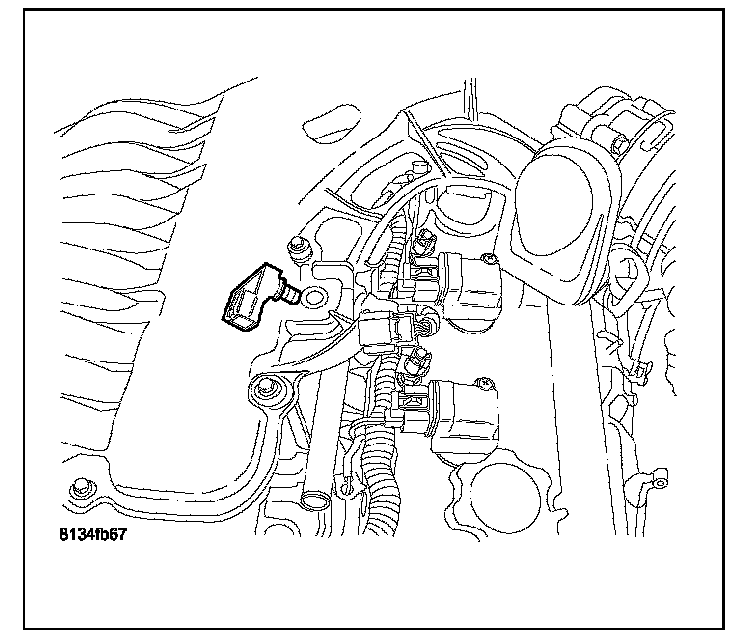

3. Position sensor into intake manifold.

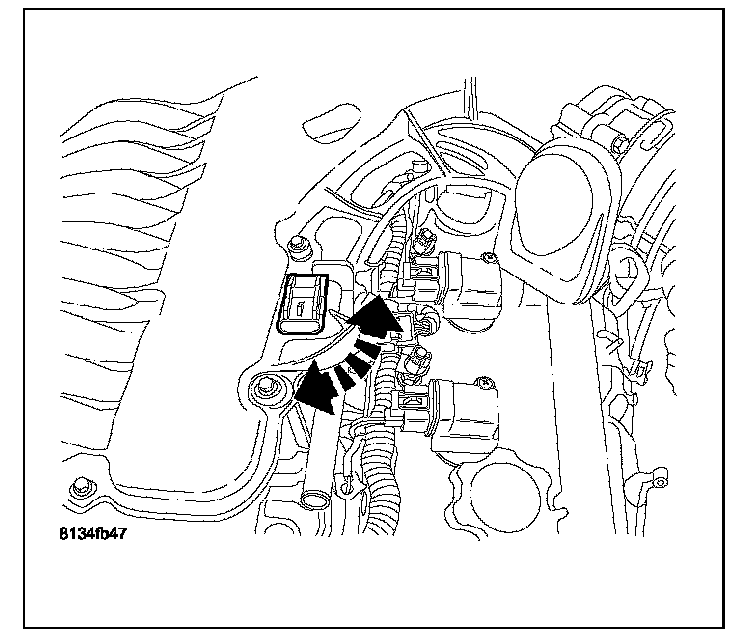

4. Rotate sensor 1/4 turn clockwise for installation.

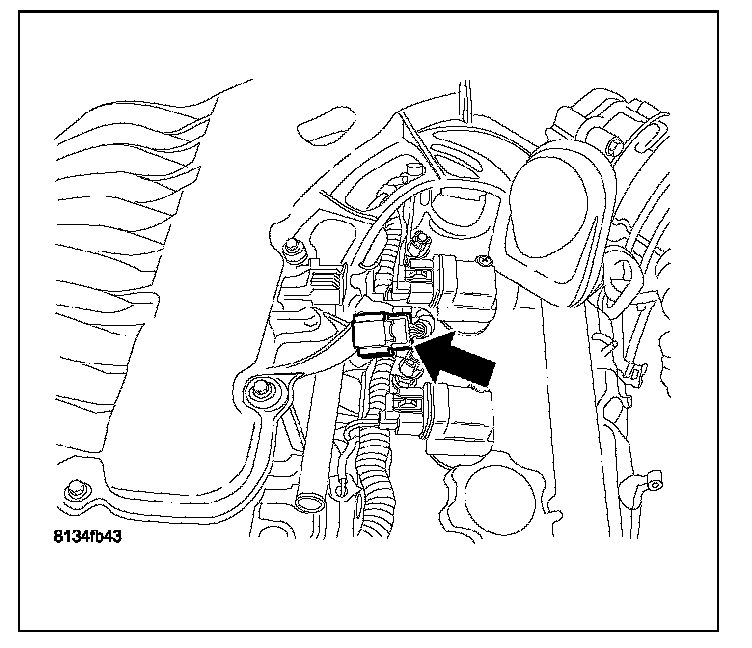

5. Connect electrical connector to sensor.
6. Lock electrical connector.
7. Connect negative battery cable.
