Sentry Key Remote Entry Module: Removal: Notes

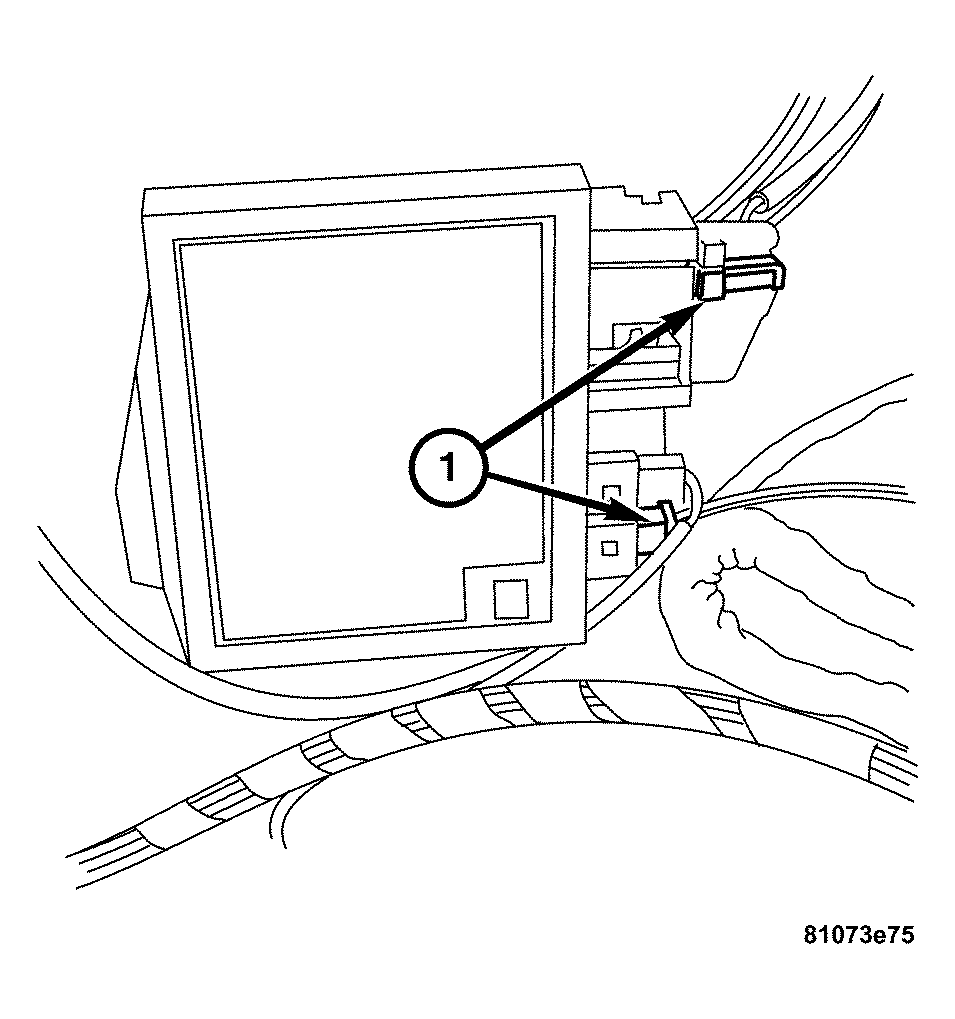

Fig 1: Identifying SKREEM Harness Connectors
GC0033562Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove the Instrument Cluster. (Refer to ELECTRICAL/INSTRUMENT CLUSTER - REMOVAL) .
  3. Disconnect the 2-pin CAN BUS harness connector (1) from the SKREEM module.
  4. Disconnect the 2-pin harness connector for the sentry key antenna ring.
  5. Disconnect the 18-pin harness connector (1) from the SKREEM module.
  6. Press the retaining tabs apart.
  7. Remove the SKREEM module from the base plate.
