*No Response From Transmission Control Module: Notes
| POSSIBLE CAUSES |
|---|
| TRACTION SYSTEM RELAY OUTPUT CIRCUIT OPEN |
| GROUND CIRCUIT OPEN |
| SCI TRANSMIT CIRCUIT OPEN |
| SCI TRANSMIT CIRCUIT SHORTED TO GROUND |
| SCI TRANSMIT CIRCUIT SHORTED TO VOLTAGE |
| TRANSMISSION CONTROL MODULE |

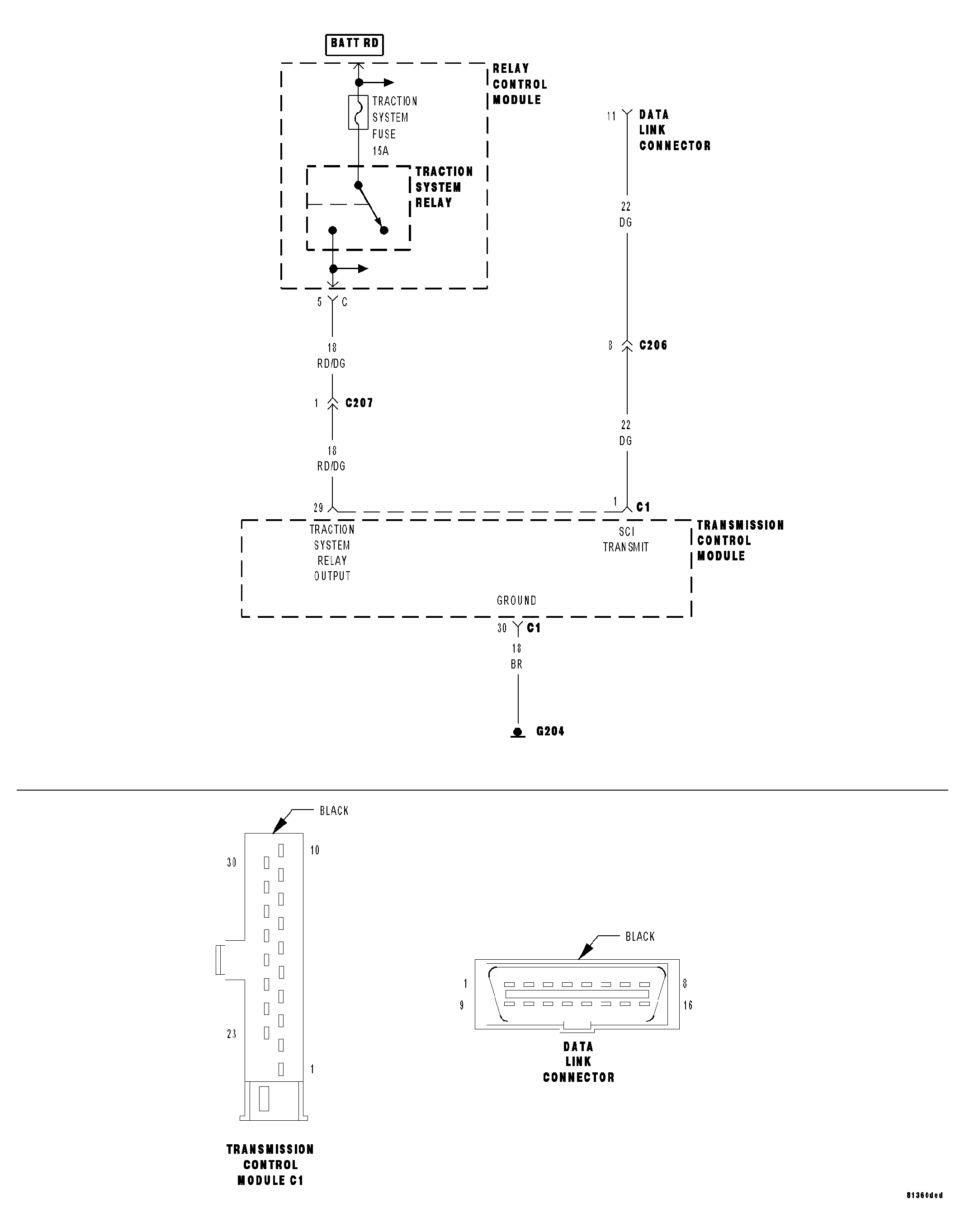

For a complete Data Link Connector Circuit Diagram, (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES - SCHEMATICS AND DIAGRAMS) .
