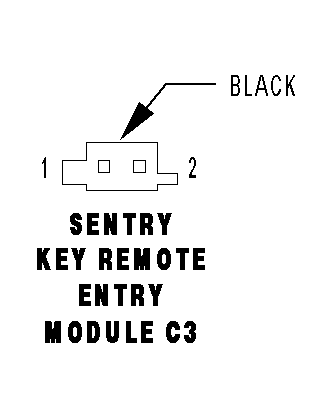

Sentry Key Remote Entry Module Connector End View (C3)

SENTRY KEY REMOTE ENTRY MODULE C3 - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	16BK	SENTRY KEY ANTENNA
2	SHIELD	SHIELD
