DTC 1100: Left Front Wheel Speed Sensor Circuit: Notes

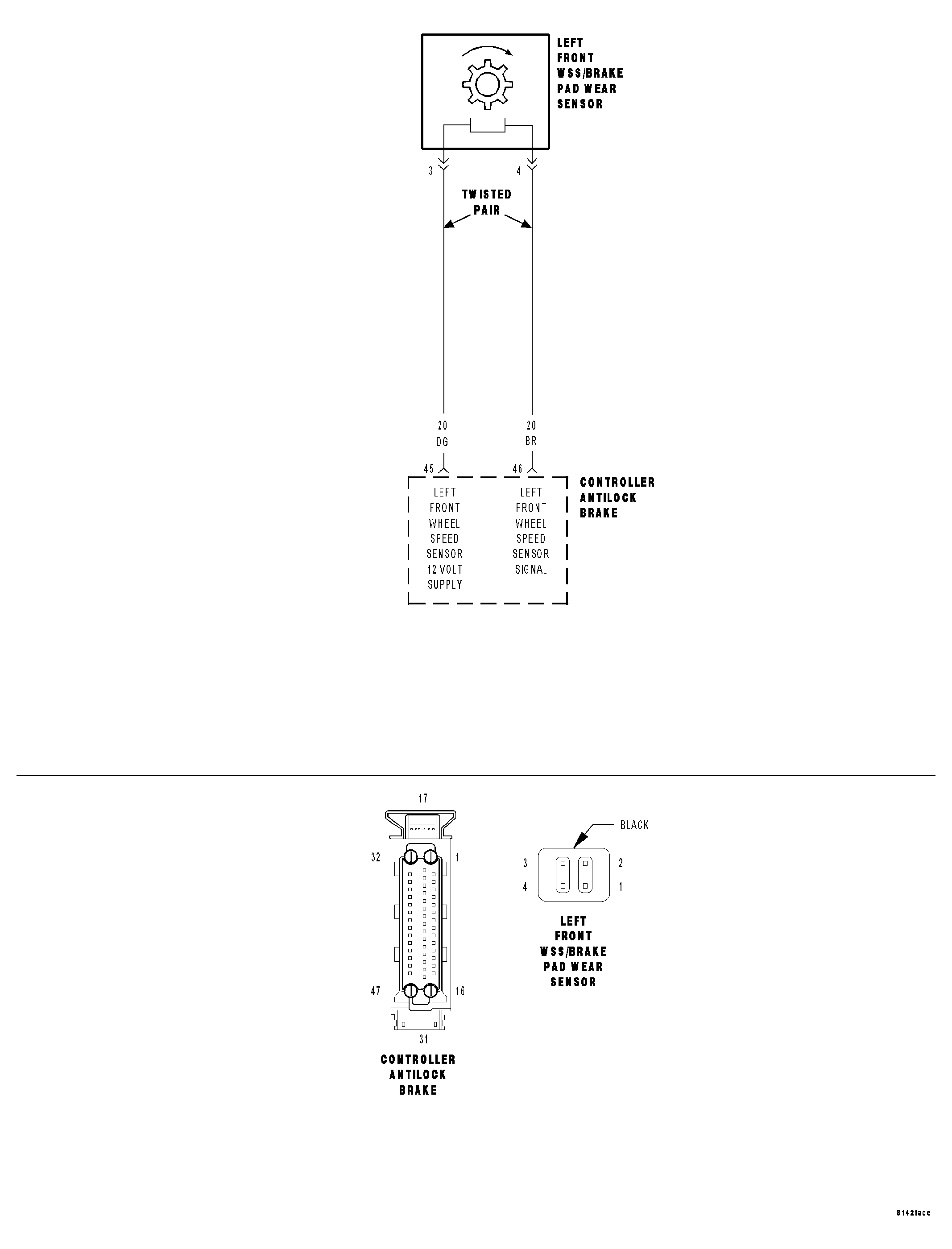

Fig 1: Left Front Wheel Speed Sensor Circuit Schematic
GC0033818Courtesy of DAIMLERCHRYSLER CORP.
