Oil Level/Temperature Sensor: Installation

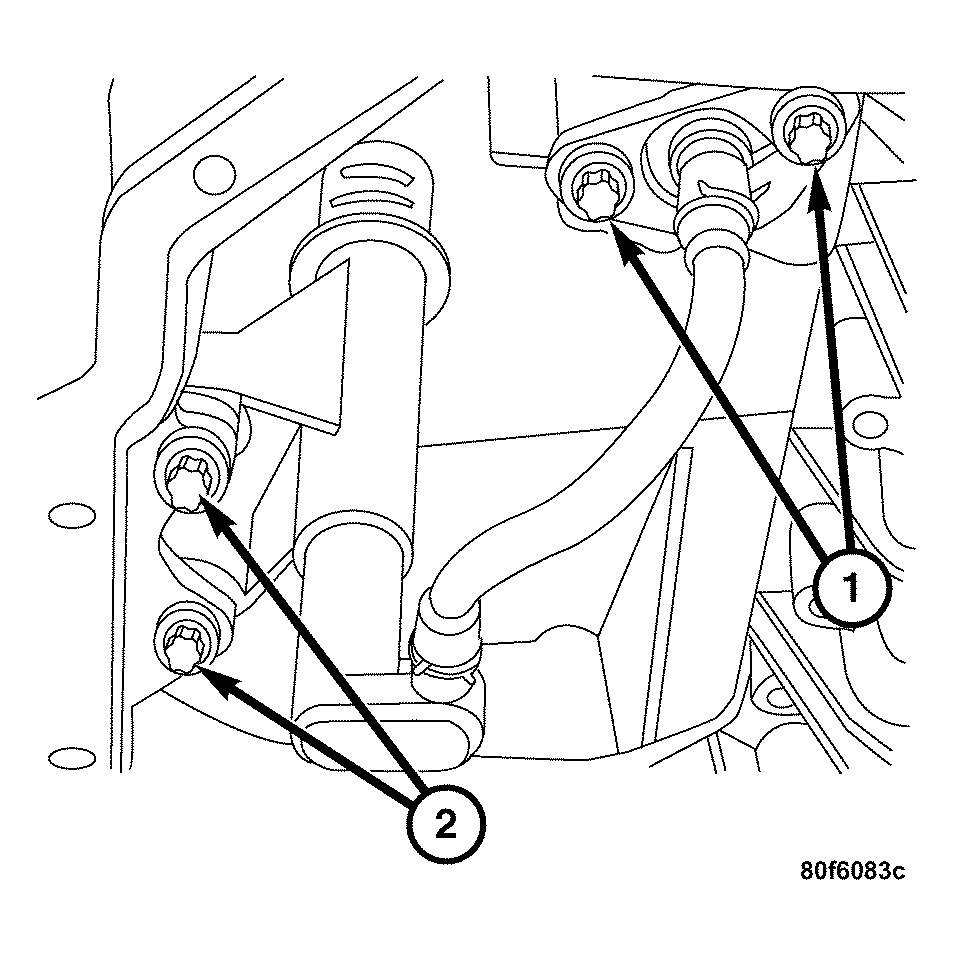

Fig 1: Identifying Oil Level/Temperature Sensor Screws & Harness Retainer Screws
GC0034492Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the oil level/temperature sensor in the upper oil pan with the screws (1).
  2. Position the harness retainer in the upper oil pan with the screws (2).
  3. Tighten all screws for the oil level/temperature sensor to 10 N.m (89 in. lbs.).

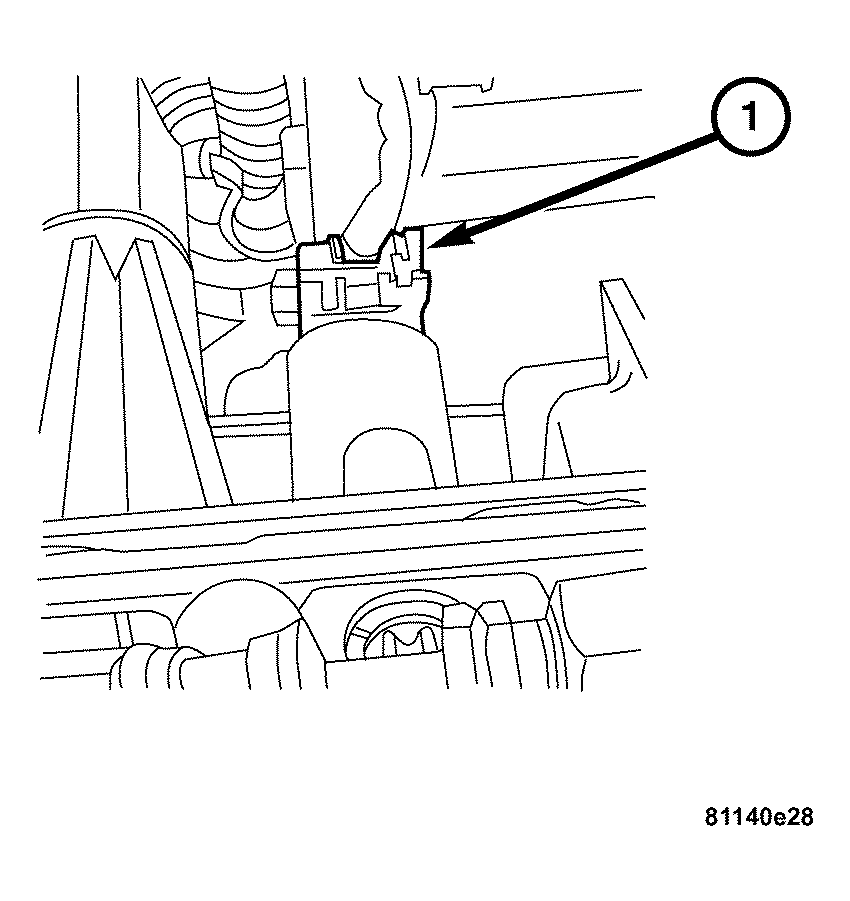

    Fig 2: Disconnecting/Connecting Oil Level/Temperature Sensor Harness Connector
    GC0034493Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the oil level/temperature sensor harness connector (1).
  5. Install the lower oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
