Airbag Restraint System - Electrical Diagnostics
>>
DTC Troubleshooting
>>
Driver Airbag Squib Circuit
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Airbag Squib Circuit: Notes

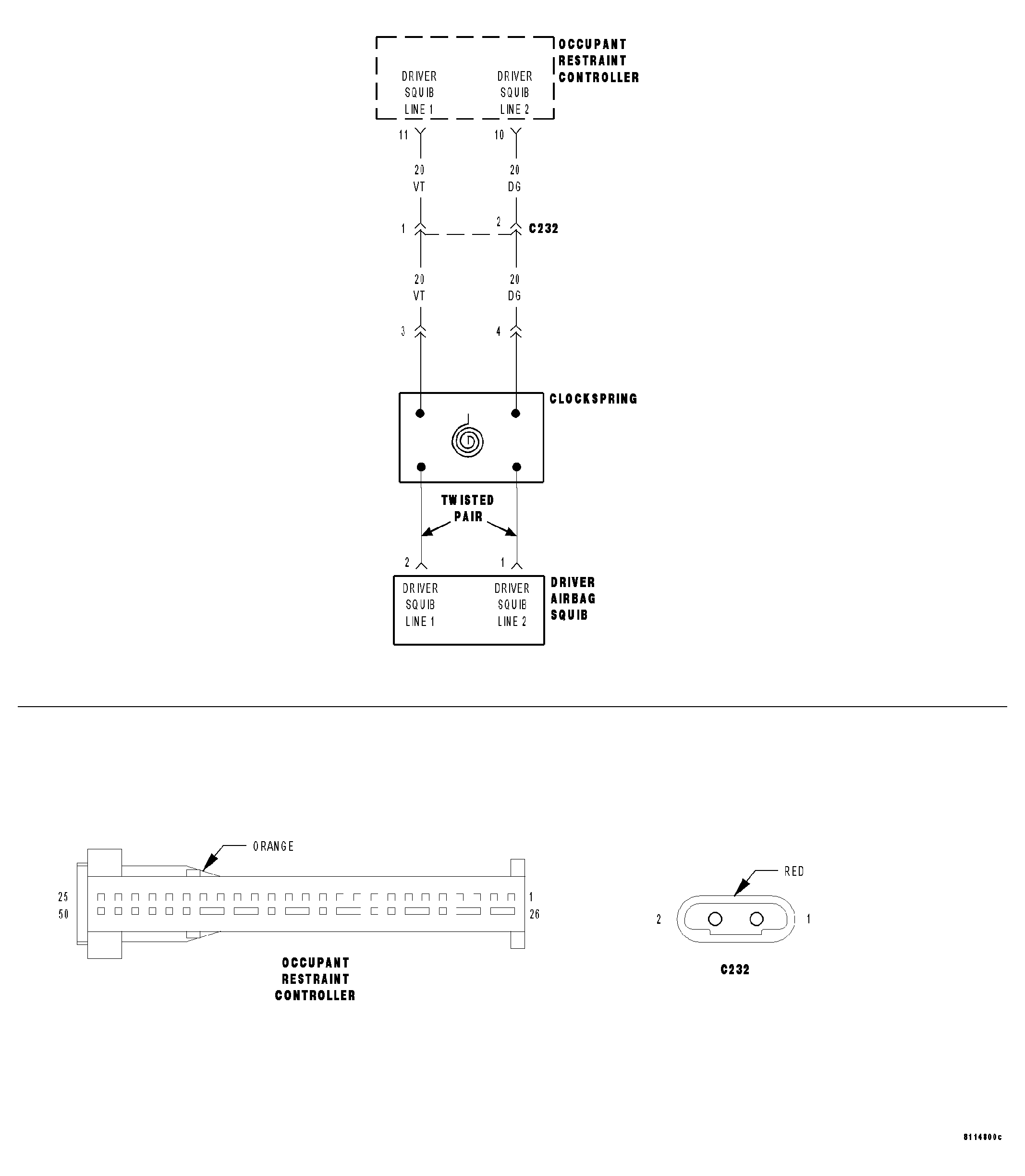

Fig 1: Driver Airbag Squib Circuit Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
