Front Suspension: Hub/Bearing: Removal: Notes

Fig 1: Removing/Installing Front Disc Brake Caliper
GC0033641Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise and support the vehicle.
  2. Remove the front wheel and tire assembly.
  3. Remove and inspect the front disc brake caliper (1). (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - REMOVAL) . Inspect for any damage or wear.
    Fig 2: Identifying Disc Brake Rotor
    GC0033644Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove and inspect the front disc brake rotor (1). (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL) . Inspect for any damage or wear.

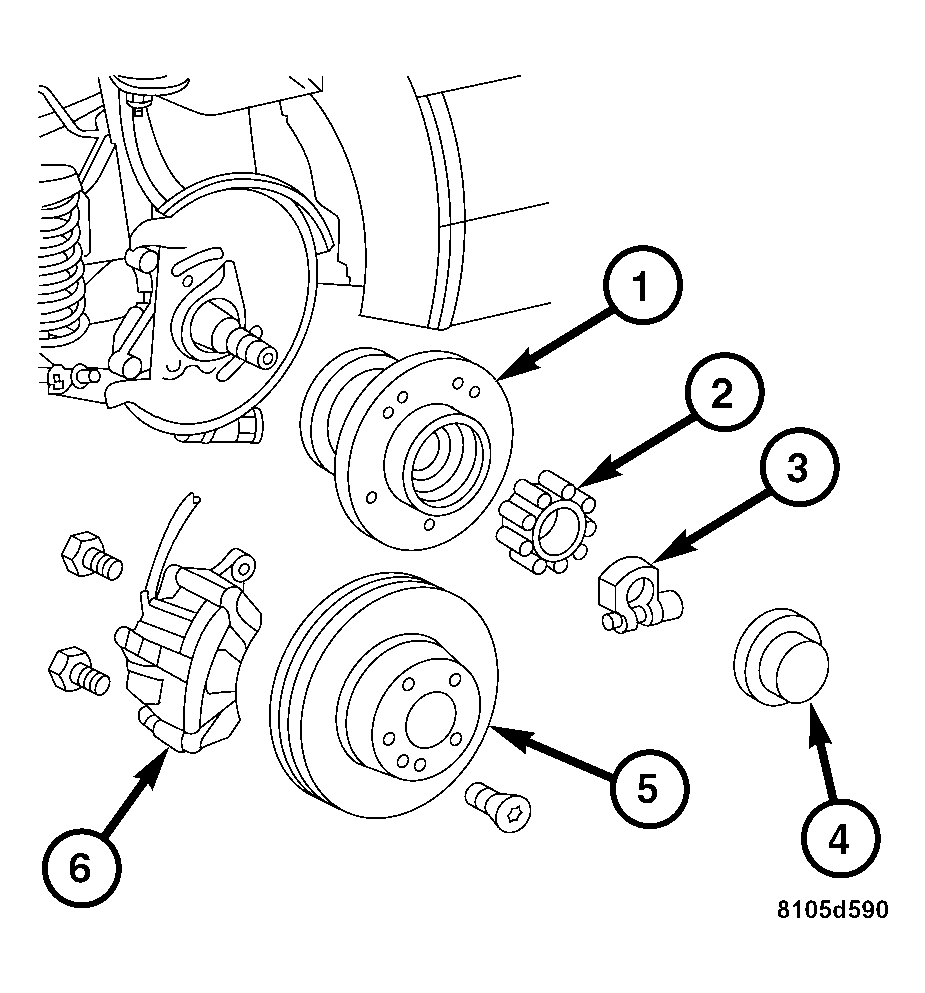

    Fig 3: Locating Dust Cap, Hub Nut, Roller Bearing & Wheel Hub
    GC0032966Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the front wheel hub dust cap (4).
  6. Loosen the hub nut bolt then remove the hub nut (3) and then remove the tapered roller bearing (2).
  7. Remove the front wheel hub (1) from the spindle.
