Lower Control Arm: Removal

Fig 1: Locating Front Spring

Courtesy of DAIMLERCHRYSLER CORP.

Raise and support the vehicle.
Remove the front wheel and tire assembly.
Remove the front spring. (Refer to SUSPENSION/FRONT/SPRING - REMOVAL) .

Fig 2: Locating Shock Absorber Bolt & Nut
Courtesy of DAIMLERCHRYSLER CORP.
Remove the shock absorber lower mounting nut and bolt (1).
Pull the shock absorber out of the mounting bracket.

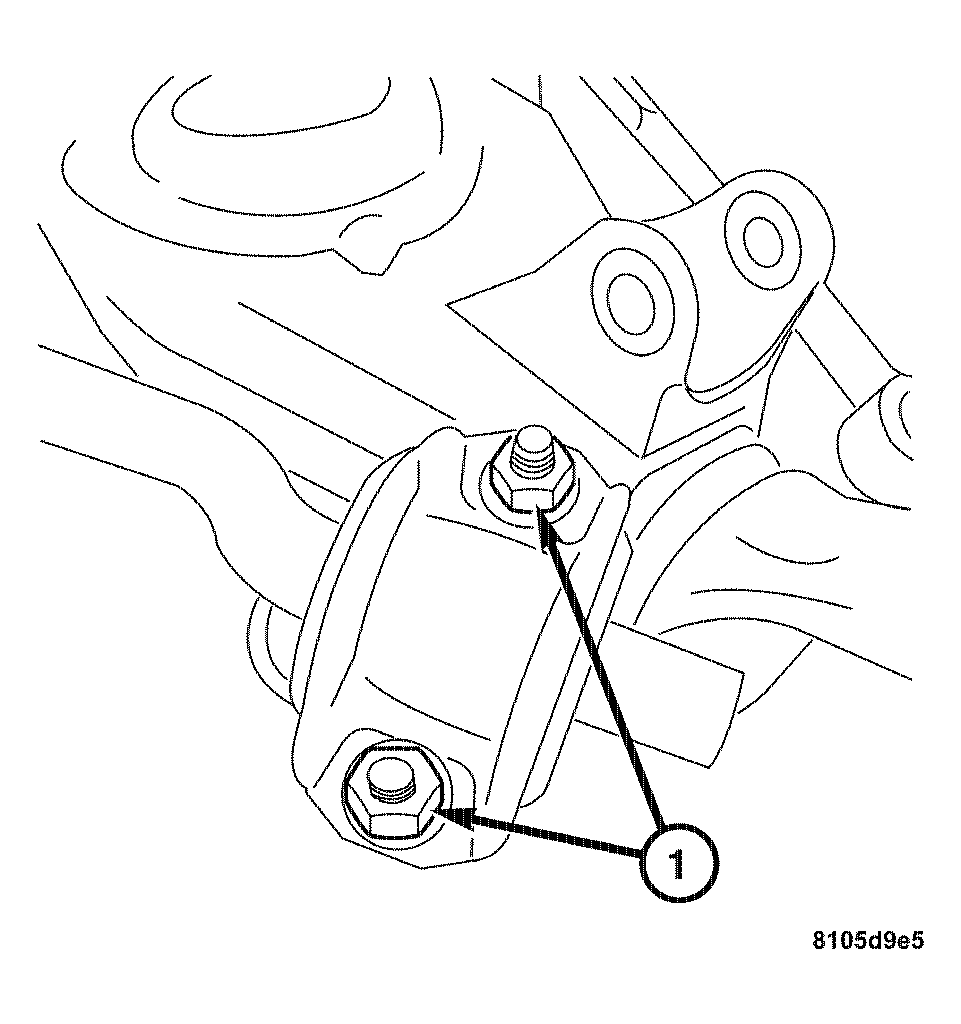

Fig 3: Locating Sway Bar Clamp Nuts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the sway bar from the lower control arm by removing the two nuts (1) then removing the clamp.

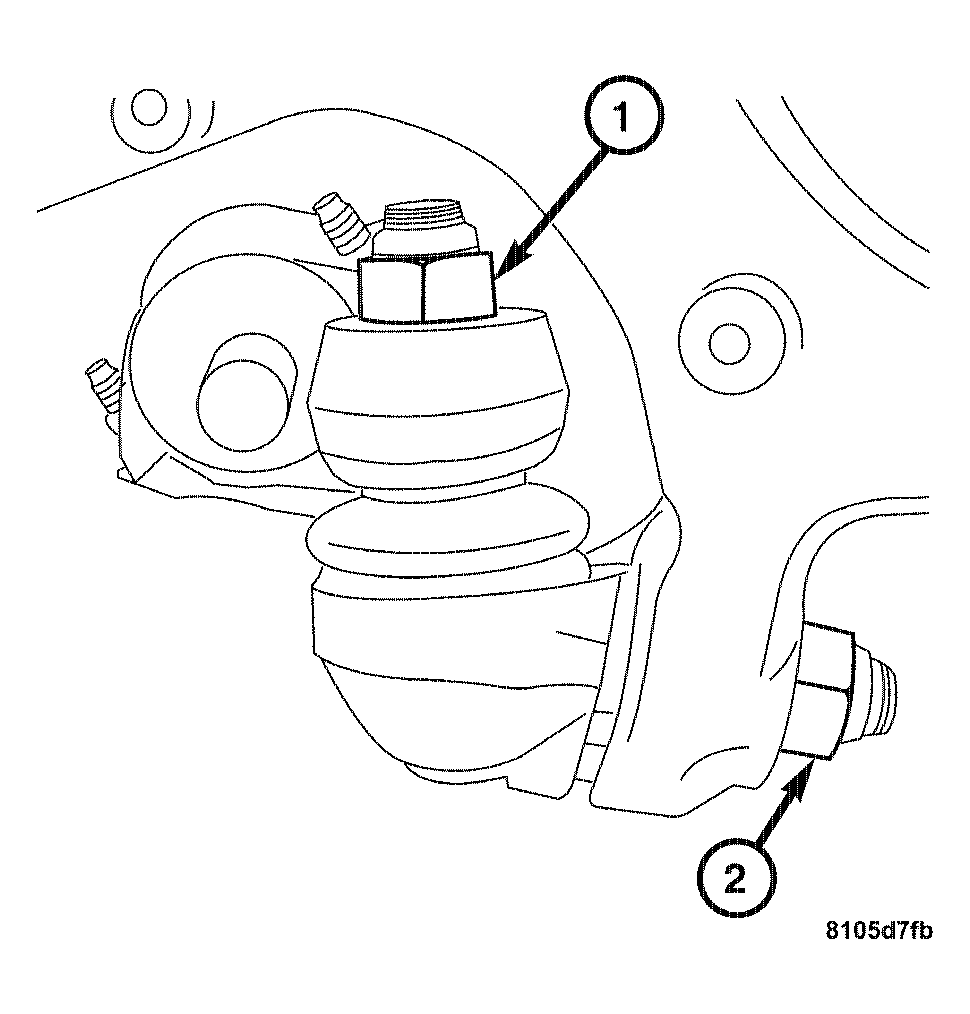

Fig 4: Locating Lower Ball Joint Nuts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the nut (2) attaching the lower control arm to the lower ball joint.

Fig 5: Pressing Ball Joint Out Of Steering Knuckle
Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Do not use pneumatic tools to tighten the bolt on the special tool.
Using Special Tool 9168 Ball Joint Puller (1) press out the lower ball joint stud from the steering knuckle.

Fig 6: Locating Bolts Attaching Lower Control Arm To Frame
Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Support the lower control arm before removing mounting bolts.
Remove the two bolts (1) attaching the lower control arm to the frame.
Remove the lower control arm from the vehicle.
