Keyless Entry Module

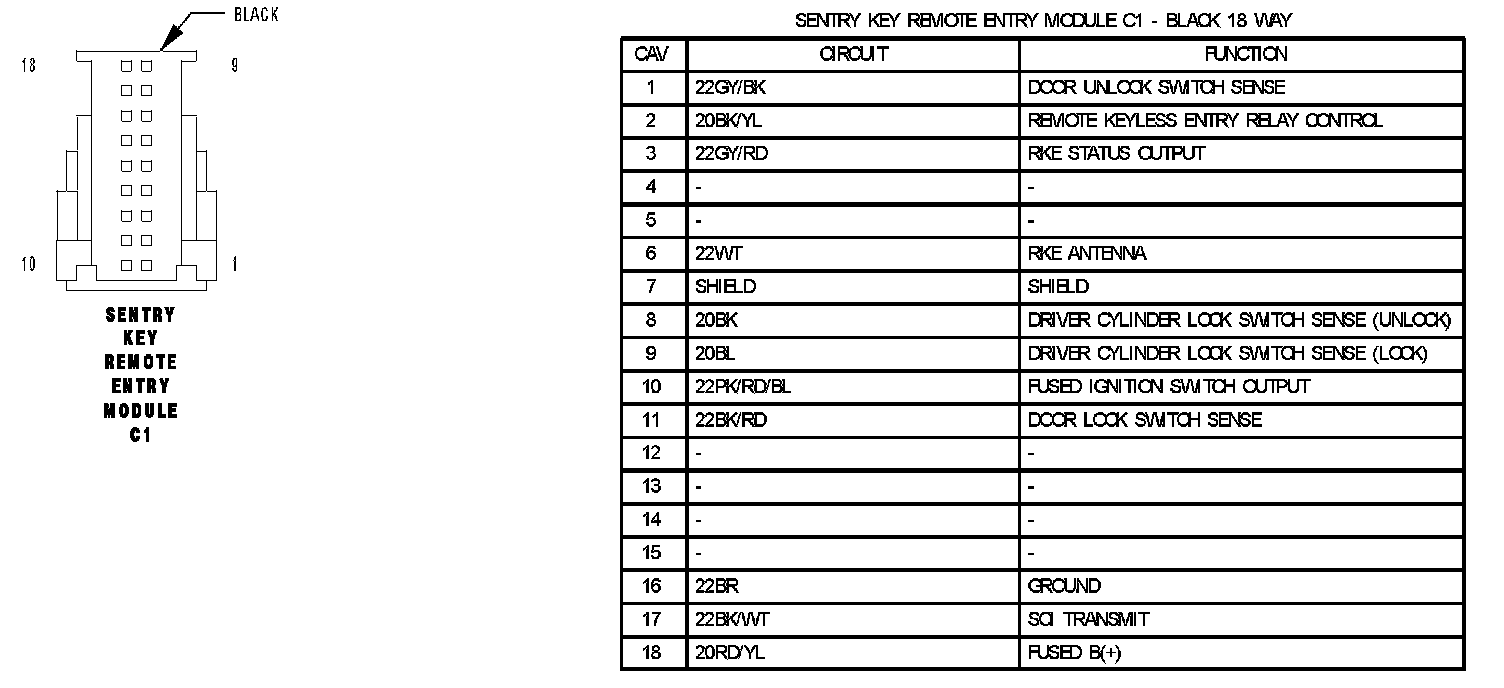

Sentry Key Remote Entry Module C1:

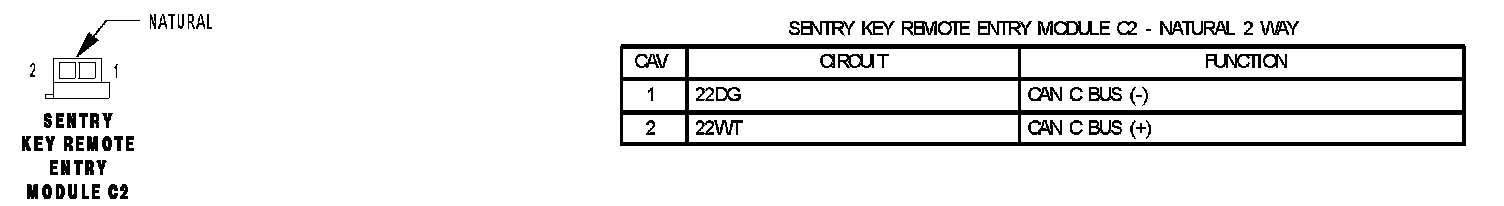

Sentry Key Remote Entry Module C2:

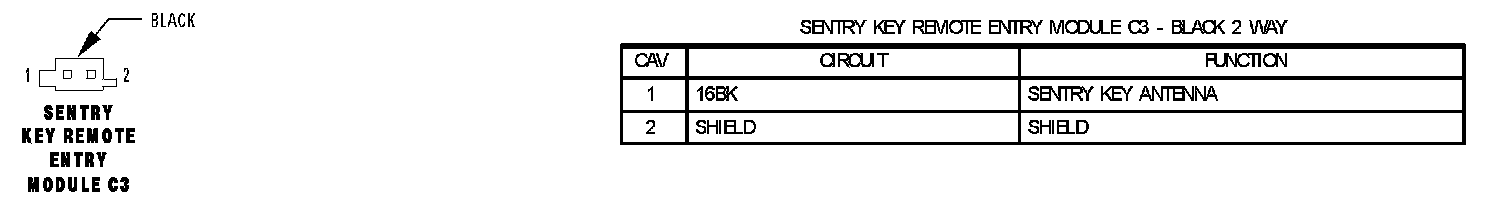

Sentry Key Remote Entry Module C3:
