Remote Keyless Entry Module Wiring Diagram

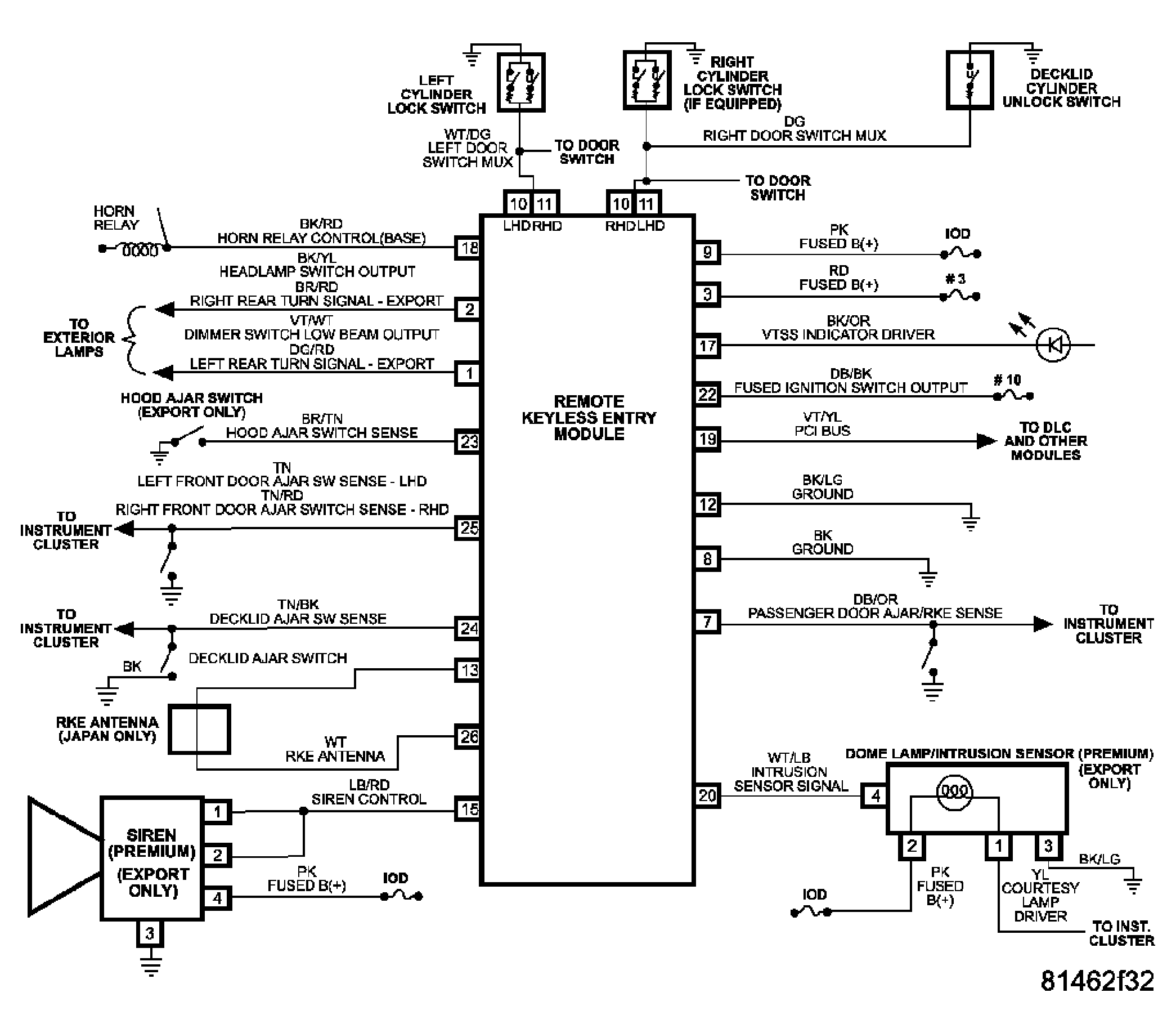

Fig 1: Vehicle Theft Security System - Schematic Diagrams
G04549131Courtesy of DAIMLERCHRYSLER CORP.
