Engine Control Module-Diesel Engine: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable.
Disconnect ECM electrical connectors. See Fig 1.
Remove ECM bracket to inner fender retaining nuts. See Fig 1.

Remove ECM and bracket assembly from vehicle. See Fig 1.

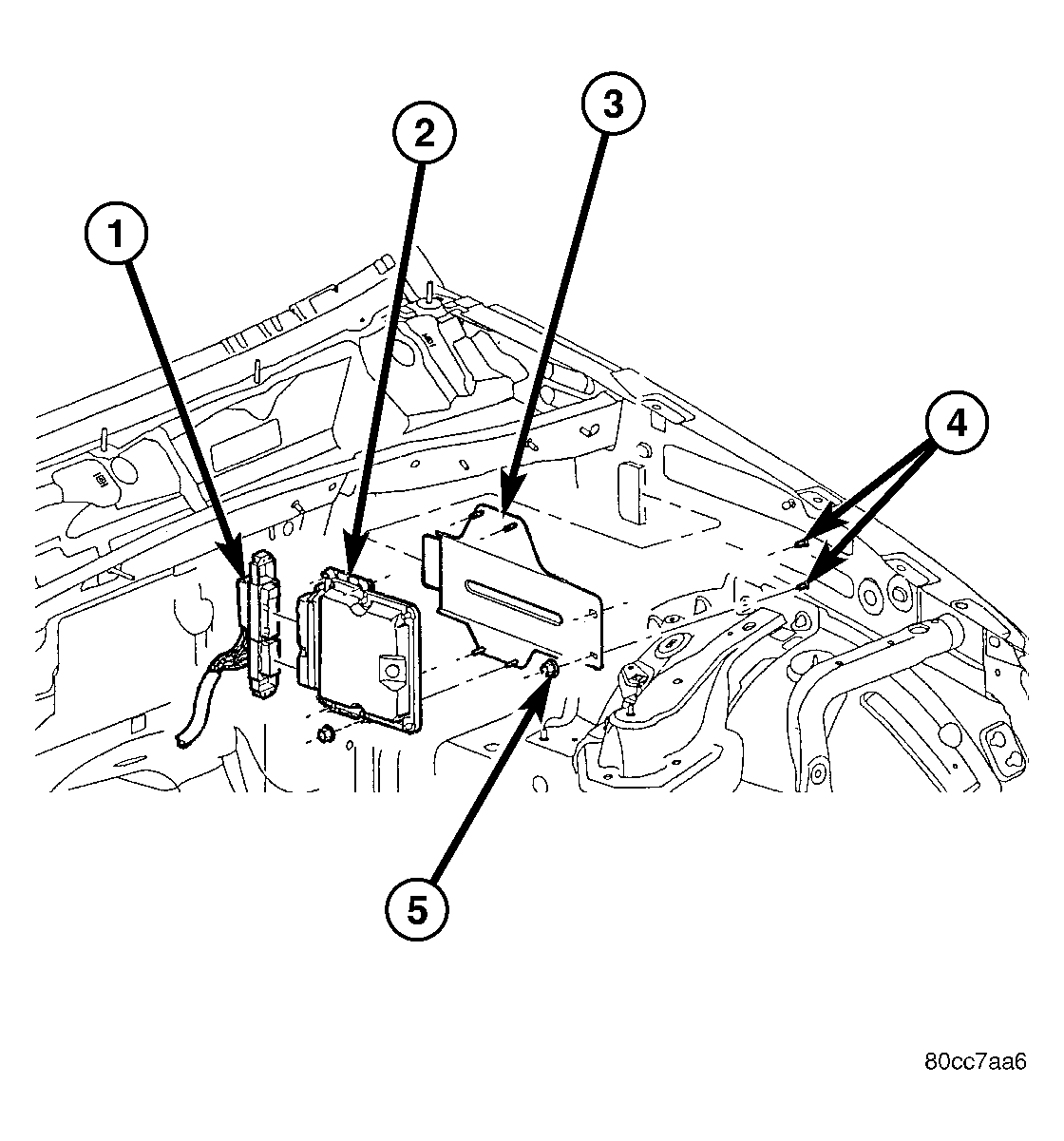

Fig 1: ENGINE CONTROL MODULE (ECM) REMOVAL/INSTALL

Courtesy of DAIMLERCHRYSLER CORP.

1 - ECM ELECTRICAL CONNECTORS

2 - ENGINE CONTROL MODULE (ECM)

3 - ECM MOUNTING BRACKET

4 - ECM MOUNTING BRACKET MOUNTING STUDS

5 - MOUNTING BRACKET RETAINING NUTS

Separate ECM from bracket.
