Front Control Module: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

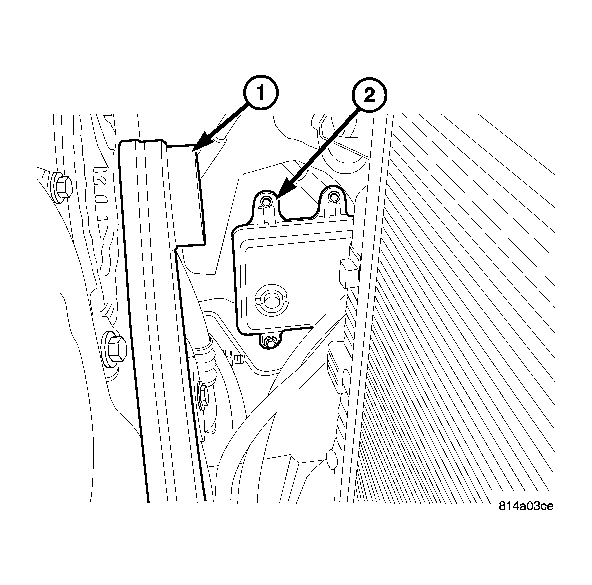

| 1 - GENERATOR |
| 2 - FCM |
- Disconnect the negative battery cable.
- Remove the charge air inlet hose.
- Remove the front control module mounting fasteners and disconnect the wiring harness connector. See Fig 1.
