Description - Pcm

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The Powertrain Control Module (PCM) is located in the engine compartment. See Fig 1.

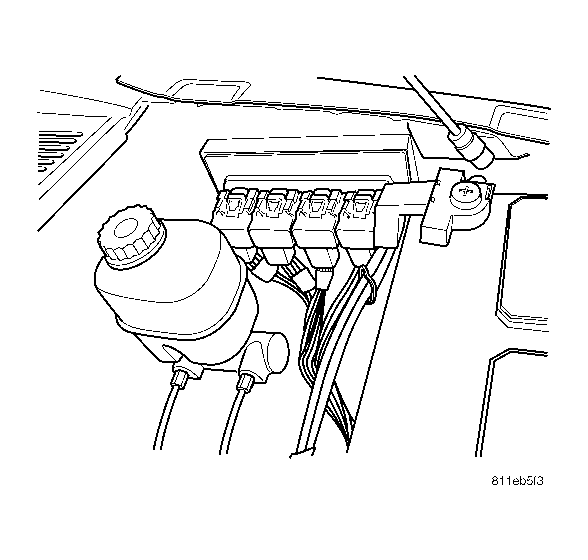

Fig 1: PCM LOCATION
GC0026397Courtesy of DAIMLERCHRYSLER CORP.
