Integrated Power Module: Removal

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative and positive battery cables.
Remove the battery thermal guard.
Remove the battery (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - REMOVAL) .
Using a flat-bladed screwdriver, twist the Integrated Power Module (IPM) bracket retaining latch outward to free the IPM from its mounting bracket. See Fig 1.

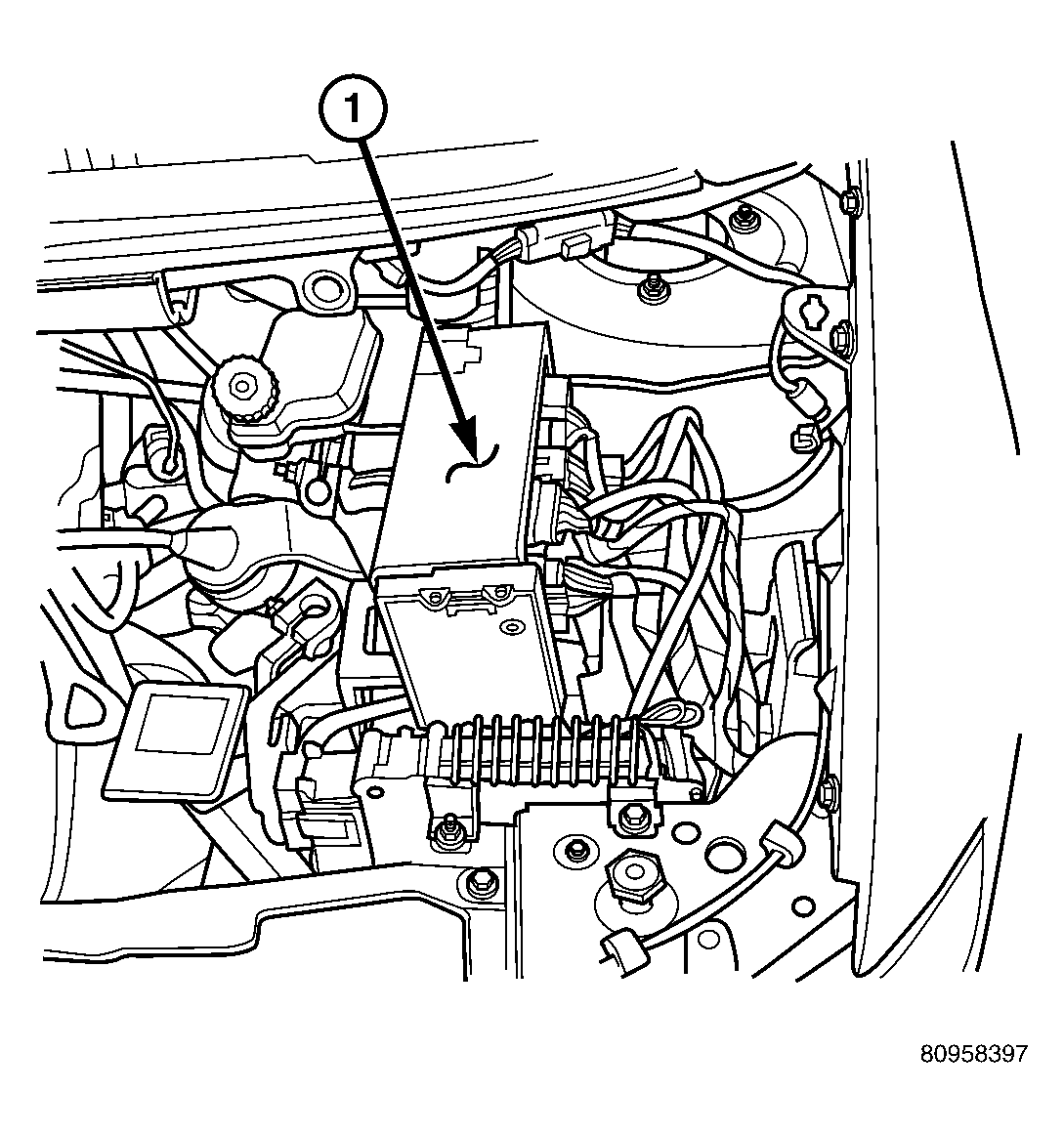

Fig 1: Removing/Installing Integrated Power Module
Courtesy of DAIMLERCHRYSLER CORP.
Rotate the IPM counter-clockwise to access and disconnect the electrical connectors. See Fig 2.

Fig 2: Disconnecting IPM
Courtesy of DAIMLERCHRYSLER CORP.

1 - INTEGRATED POWER MODULE
Remove the IPM bracket clips from the hinge.
