Transmission Temperature Sensor Specifications

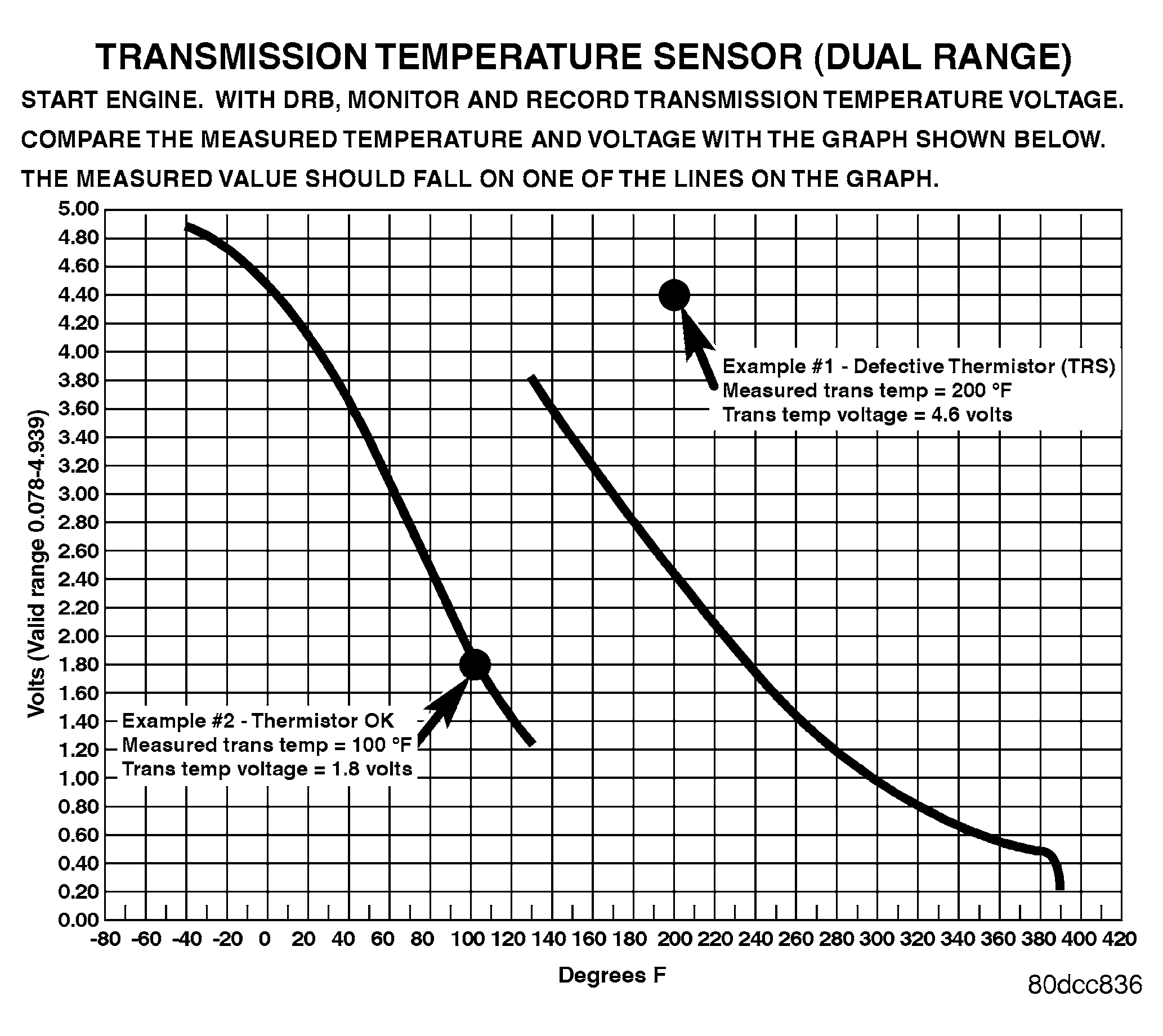

Fig 1: Identifying 11.5 Transmission Temperature Sensor (Dual Range) - Graph
G04549186Courtesy of DAIMLERCHRYSLER CORP.
