Sentry Key Immobilizer Module: Installation

NOTE: If the SKIM is replaced with a new unit, a DRB lll® scan tool MUST be used to initialize the new SKIM and to program at least two Sentry Key transponders (Refer to ELECTRICAL/ELECTRONIC CONTROL MODULES/SENTRY KEY IMMOBILIZER MODULE - STANDARD PROCEDURE) .
  1. Place the SKIM into position.

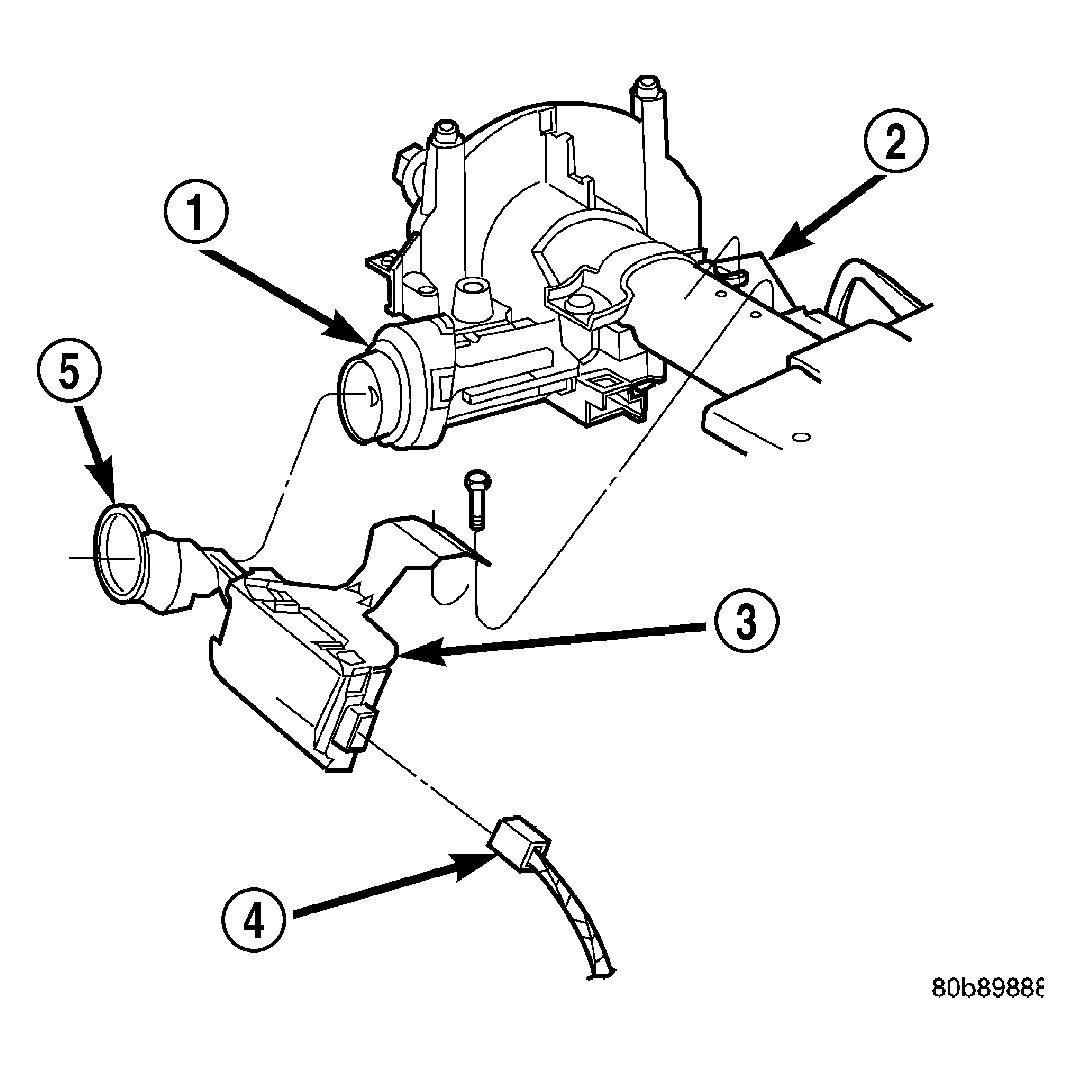

  2. Rotate the SKIM and its mounting bracket downwards and then to the side towards the steering column. See Figure.
  3. Install the two screws securing the SKIM to the top of the steering column. See Figure.
  4. Engage the steering column wire harness to the Sentry Key Immobilizer Module (SKIM). See Figure.
  5. Install the steering column upper and lower shrouds. Refer to SHROUD - UPPER/LOWER .
  6. Install the Lower Instrument Panel Cover. Refer to INTERIOR/EXTERIOR .
  7. Connect the battery negative cable.
