Audio System: Notes

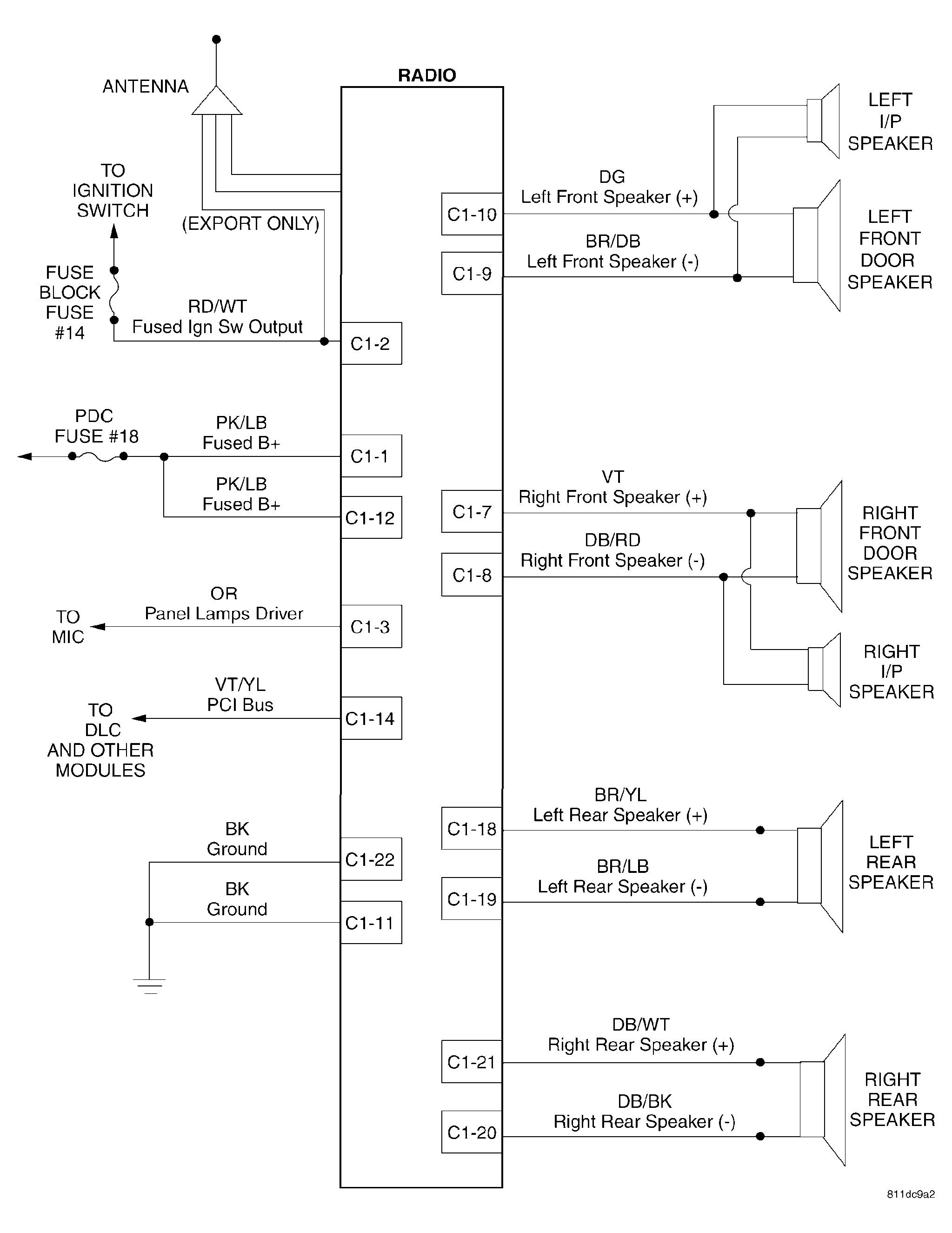

Fig 1: Audio System - Schematic Diagrams

G04549118

Courtesy of DAIMLERCHRYSLER CORP.
