Controller Antilock Brake: Installation

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect 24-way wiring connector to CAB and push in connector lock.

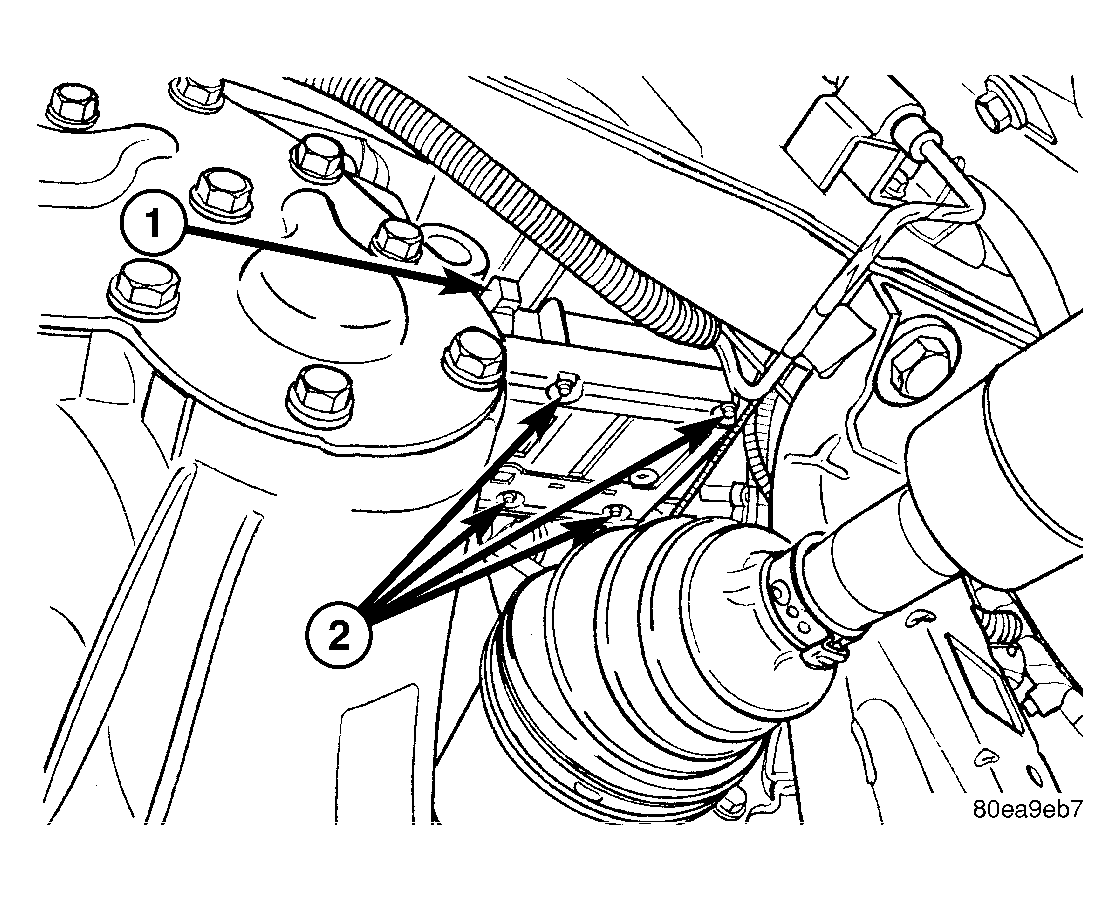

  2. Align CAB with HCU half of ICU, then slide CAB up over HCU valves. Install four CAB mounting screws. See Figure. Tighten mounting screws to 2 N.m (17 in. lbs.) torque.
  3. Connect pump/motor connector. See Figure.
  4. Lower vehicle.
  5. Connect battery negative cable.
  6. Connect DRBIII® to vehicle to initialize system. Check and clear any faults.
