Power Liftgate Control Module: Removal
WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the left D-pillar trim panel from the vehicle. (Refer to BODY/INTERIOR/LEFT D-PILLAR TRIM PANEL - REMOVAL)
- Disconnect the wire harness connections from the power liftgate motor assembly.

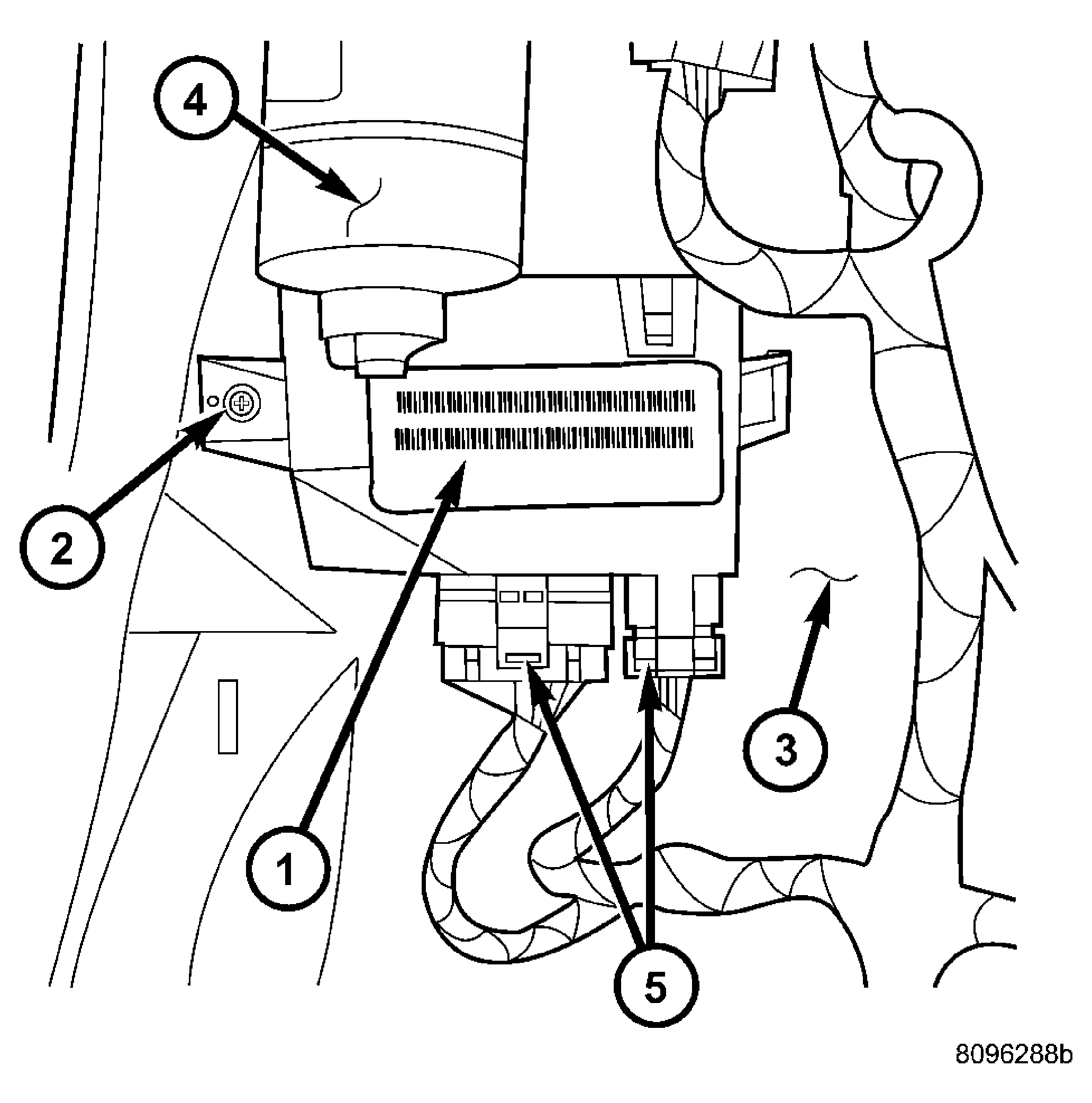

- Remove the screw holding the power liftgate control module to the D-pillar. See Fig 1.
- Remove the power liftgate control module from the vehicle.
| 1 - POWER LIFTGATE CONTROL MODULE |
| 2 - RETAINING SCREWS |
| 3 - D-PILLAR |
| 4 - POWER LIFTGATE MOTOR |
| 5 - ELECTRICAL CONNECTORS |
