INOP No Fault Codes - SDARS

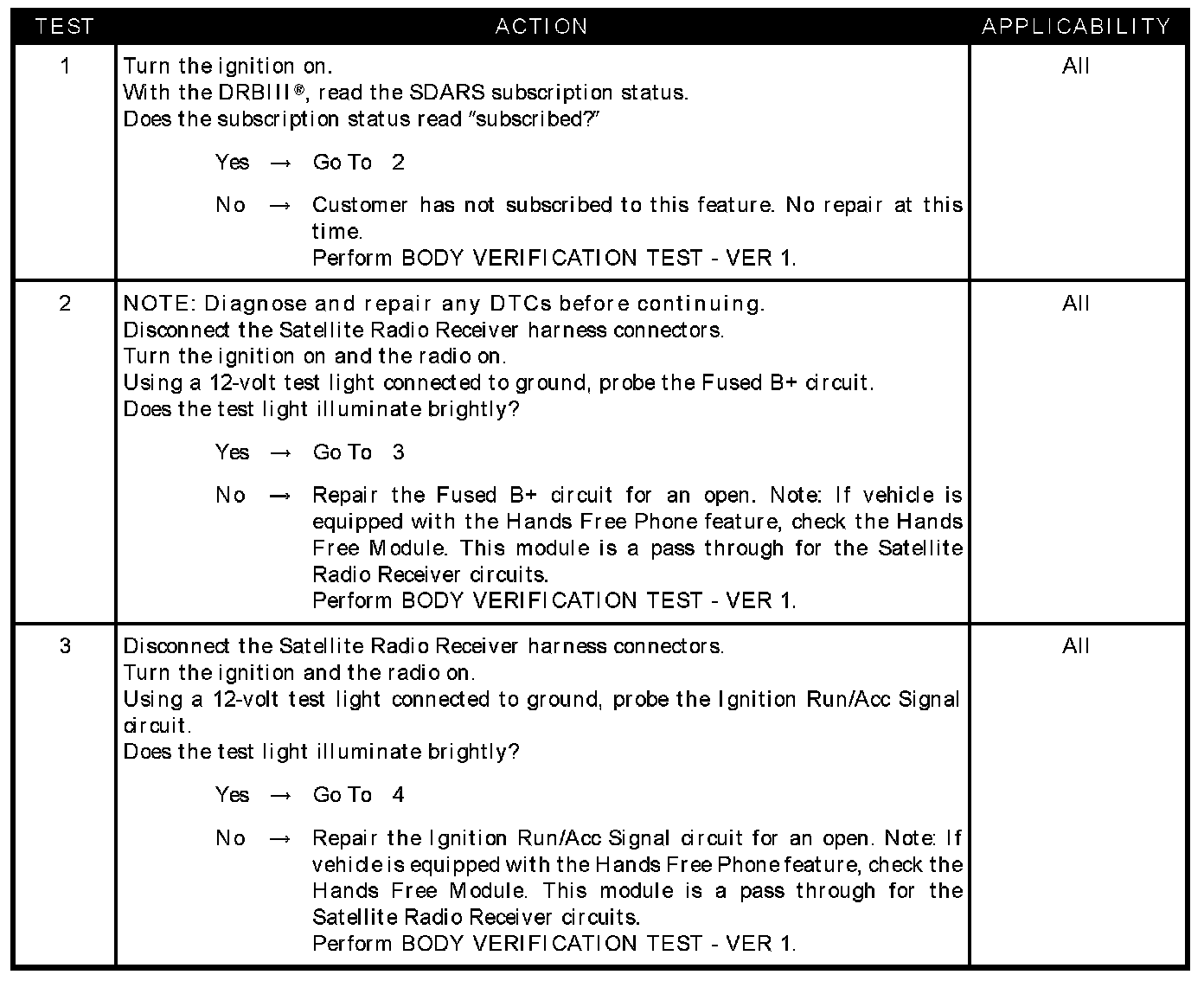

Test 1 - 3:

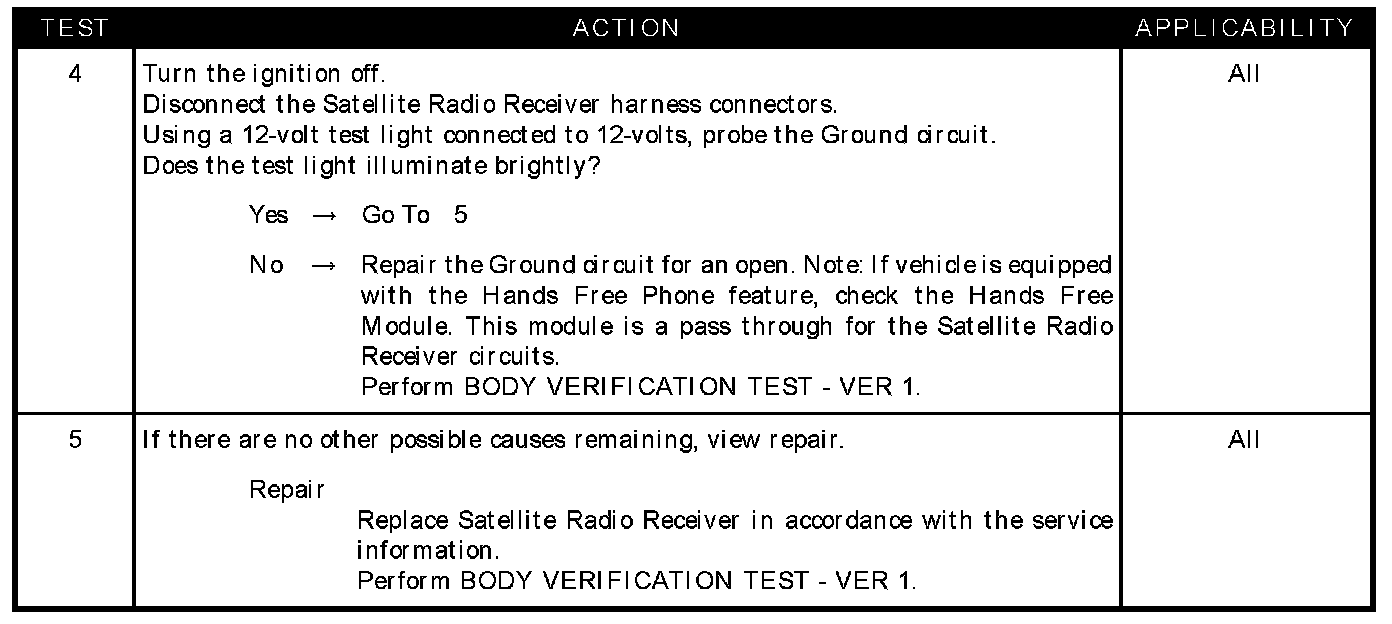

Test 4 - 5:

SYMPTOM
INOP NO FAULT CODES - SDARS

POSSIBLE CAUSES
- SDARS subscription
- Fused B+ circuit
- Ignition RUN/ACC signal circuit
- Ground circuit open
- Satellite radio receiver
