Door Ajar Circuit Open

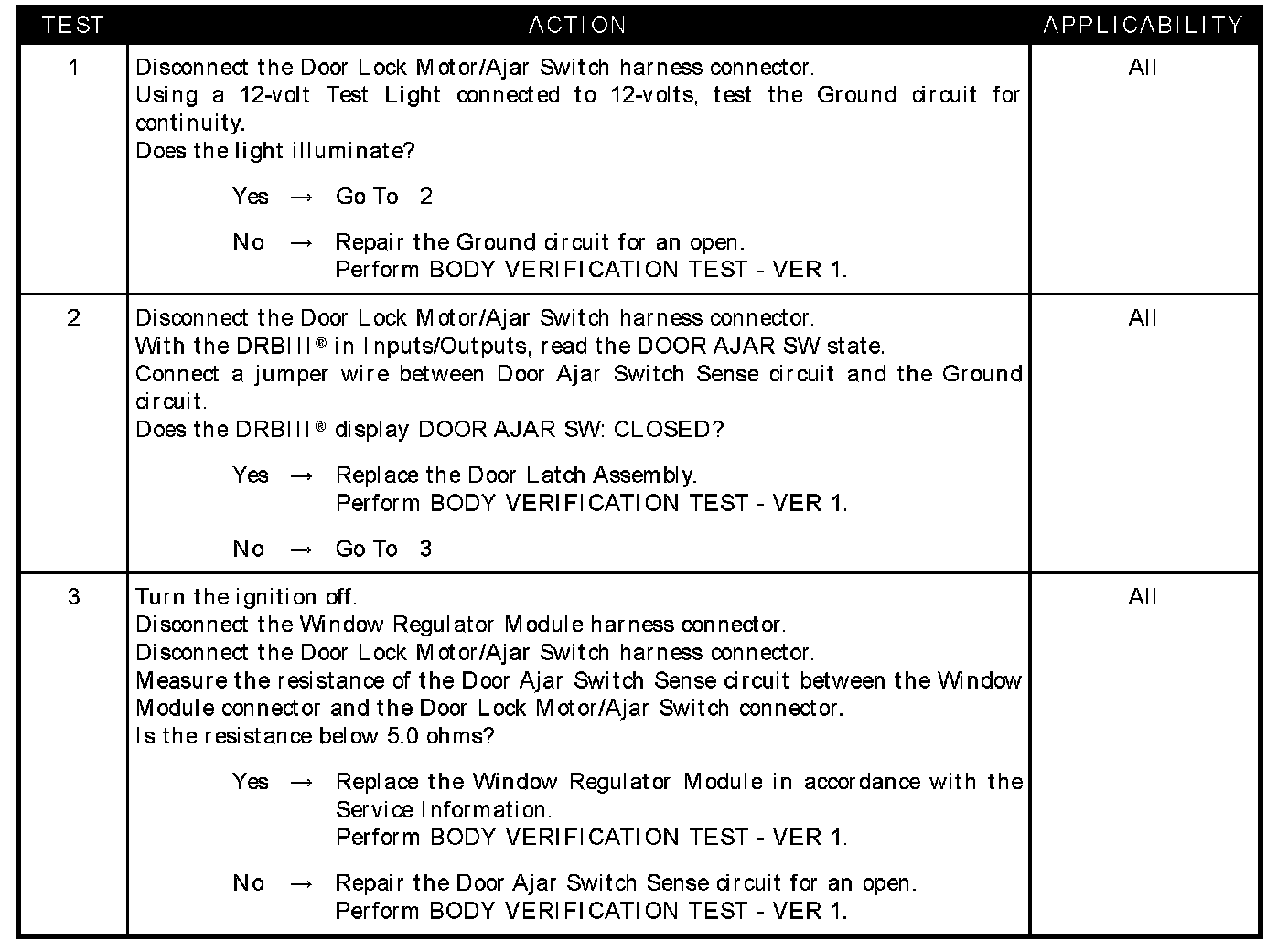

Test 1 - 3:






SYMPTOM
DOOR AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Door ajar ground circuit open
- Door ajar switch open
- Door ajar switch sense circuit open
- Window module
