Door Windows Stay In Drop Down Position

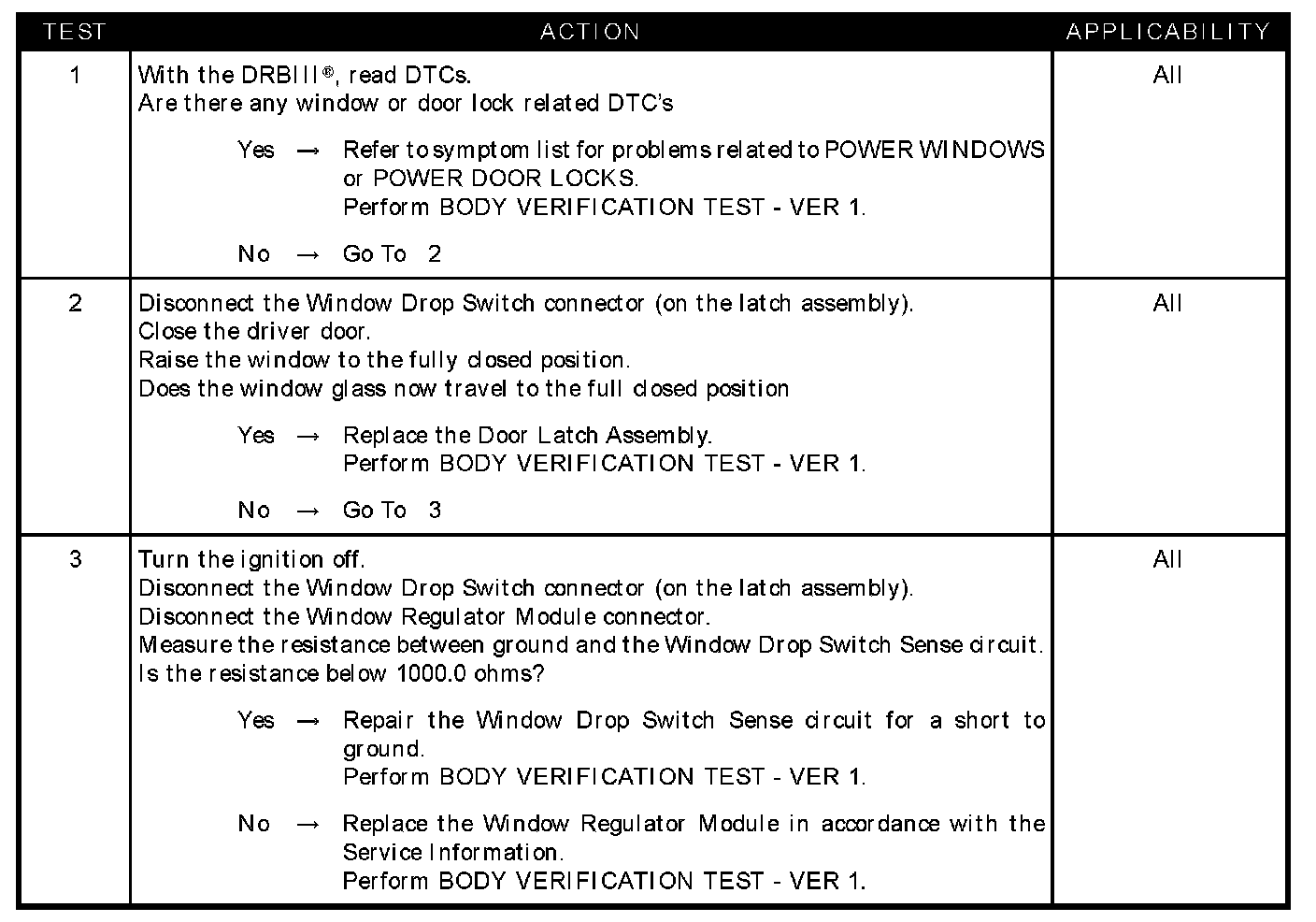

Test 1 - 3:






SYMPTOM
DOOR WINDOWS STAY IN DROP DOWN POSITION

POSSIBLE CAUSES
- Trouble code present
- Window drop switch shorted
- Window drop switch sense circuit short to ground
- Window module shorted
