System Specifications

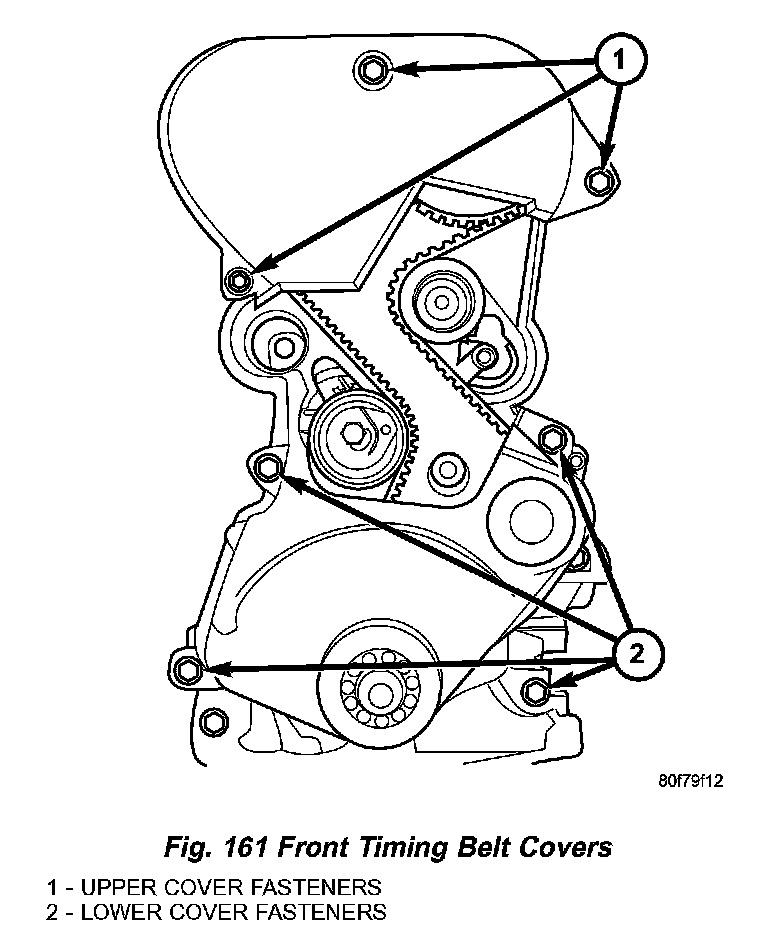

Timing Belt Cover - Front
Upper and Lower-Bolts 6 Nm (50 in.lbs.)

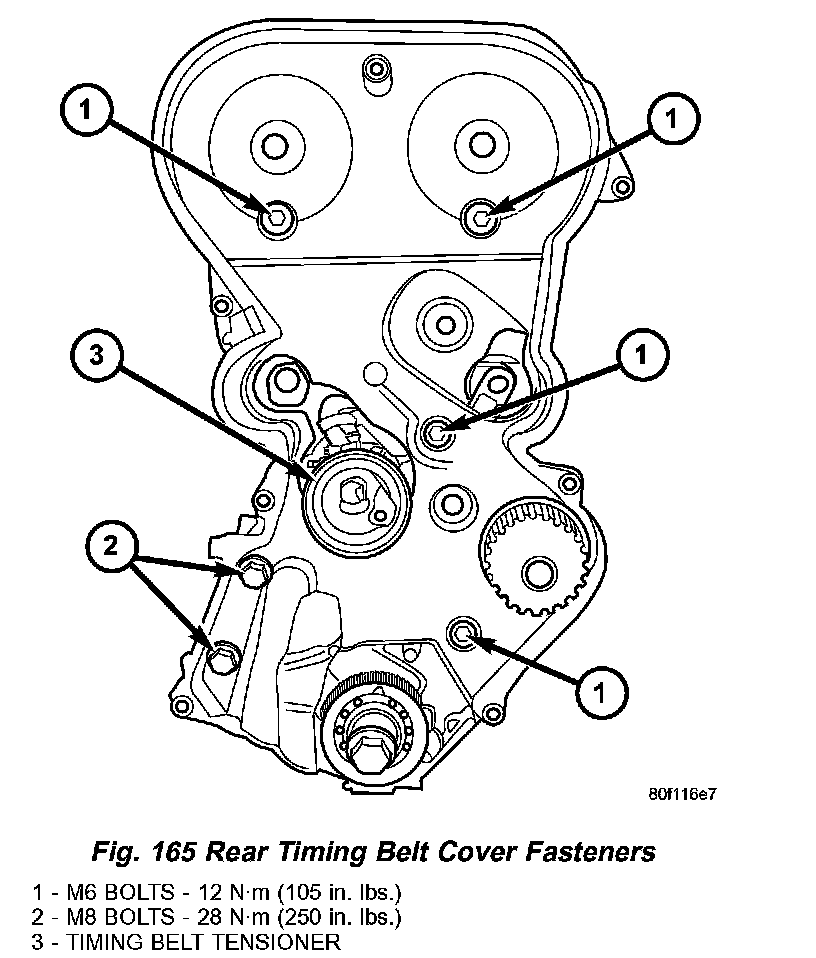

Timing Belt Cover - Rear
M6 Bolts 12 Nm (105 inch lbs.)
M8 Bolts 28 Nm (250 inch lbs.)
Timing Belt Idler Pulley 61 Nm (45 ft. lbs.)
Timing Belt Tensioner
Lock Bolt 25 Nm (220 inch lbs.)
Assembly-Bolts 61 Nm (45 ft. lbs.)
Crankshaft Damper-Bolt 136 Nm (100 ft. lbs.)
Camshaft Sprocket Bolt 115 Nm 85 ft. lbs.
