Transmission Temperature Sensor

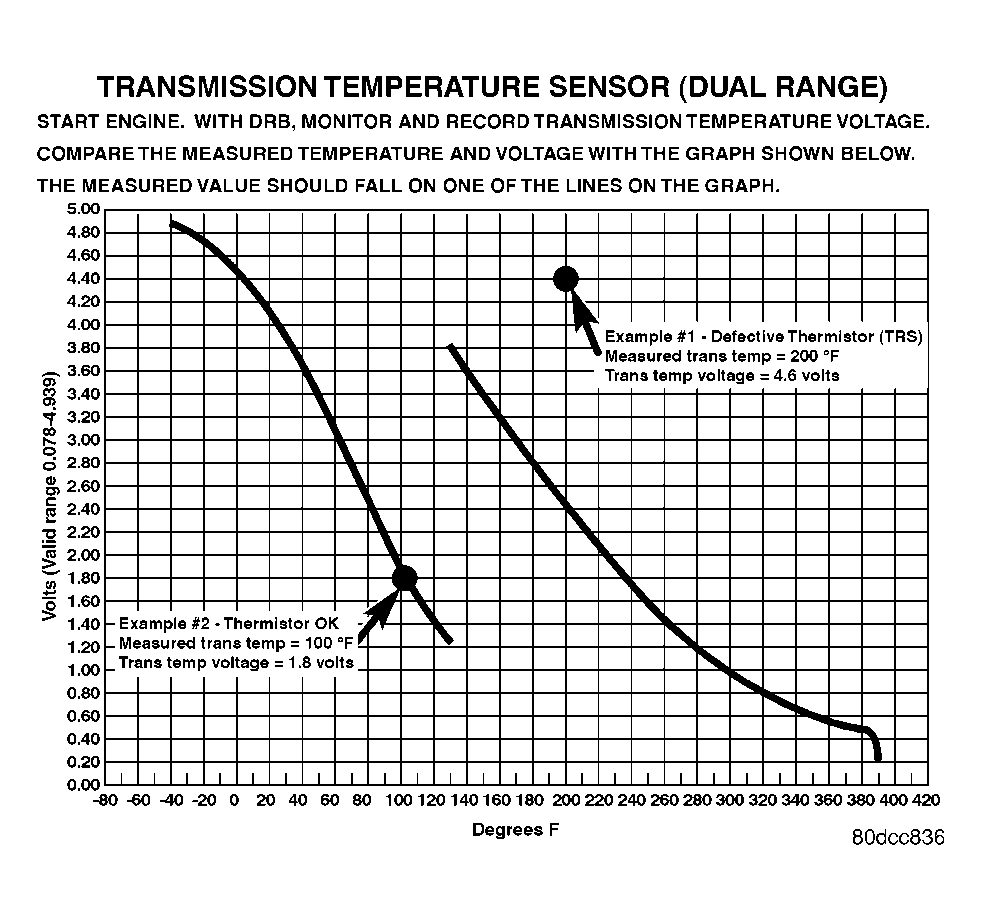

Fig 1: Transmission Temperature Sensor Temperature And Voltage Graph
G04528436Courtesy of DAIMLERCHRYSLER CORP.
