Navigation Module: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove rear floor stowage tray.

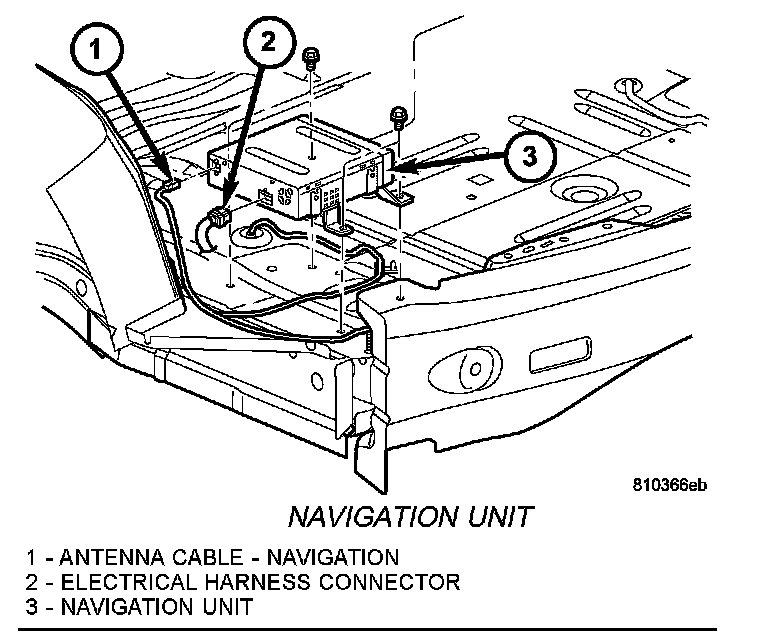

Navigation Unit:

3. Remove mounting fasteners.
4. Disconnect electrical harness connector and antenna cable from navigat3ion unit.
5. Remove navigation unit from mounting bracket.

INSTALLATION
1. Install navigation unit to mounting bracket.
2. Connect electrical harness connector and antenna cable to navigation unit.
3. Position navigation unit and install mounting fasteners.
4. Install rear floor stowage tray.
5. Connect battery negative cable.
