Cruise Control Switch: Service and Repair

REMOVAL

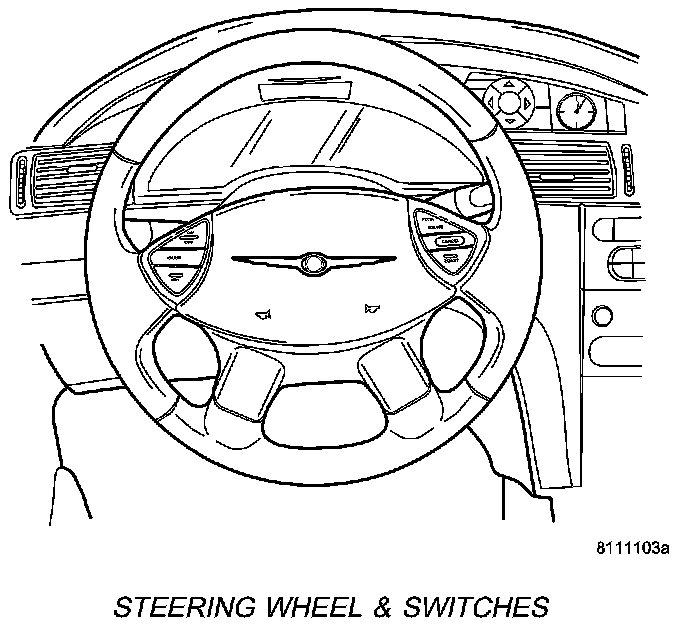

Steering Wheel & Switches:

1. Disconnect the negative battery cable.

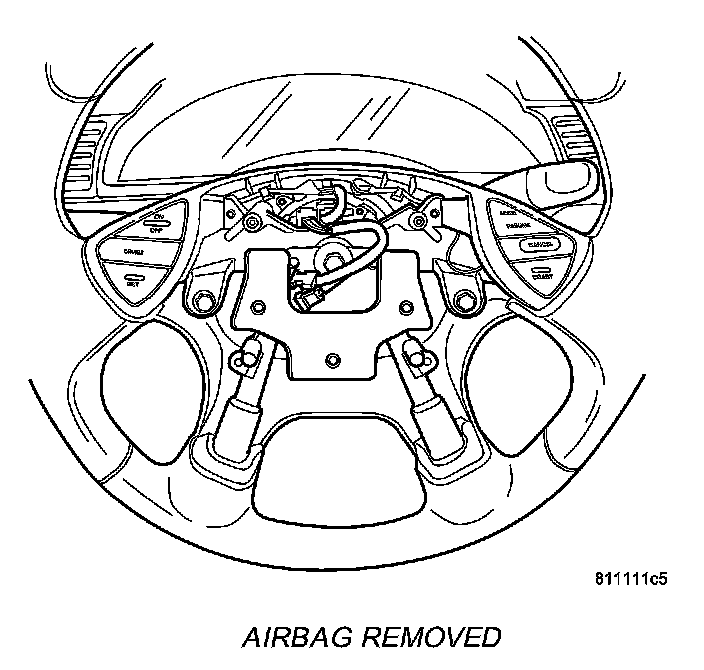

Airbag Removed:

2. Remove the Driver side Airbag.

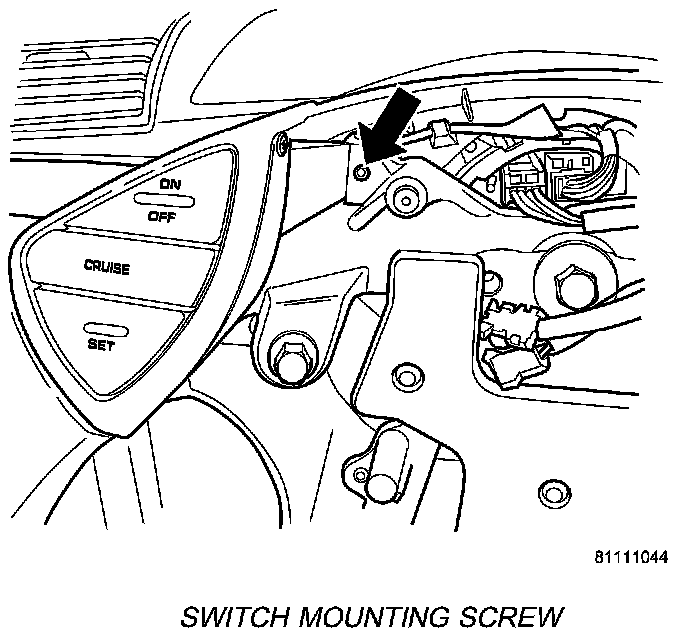

Switch Mounting Screw:

3. Remove the speed control switch mounting screw.
4. Disconnect the electrical connector from switch.
5. Remove switch.

INSTALLATION
1. Connect the electrical connector to switch.
2. Install switch.
3. Install the speed control switch mounting screw.
4. Tighten screw.
5. Install the Driver Side Airbag.
6. Connect the negative battery cable.
