Door Module

Door Module - Driver C1:



Door Module - Driver C2:



Door Module - Driver C3:



Door Module - Passenger C1:



Door Module - Passenger C2:

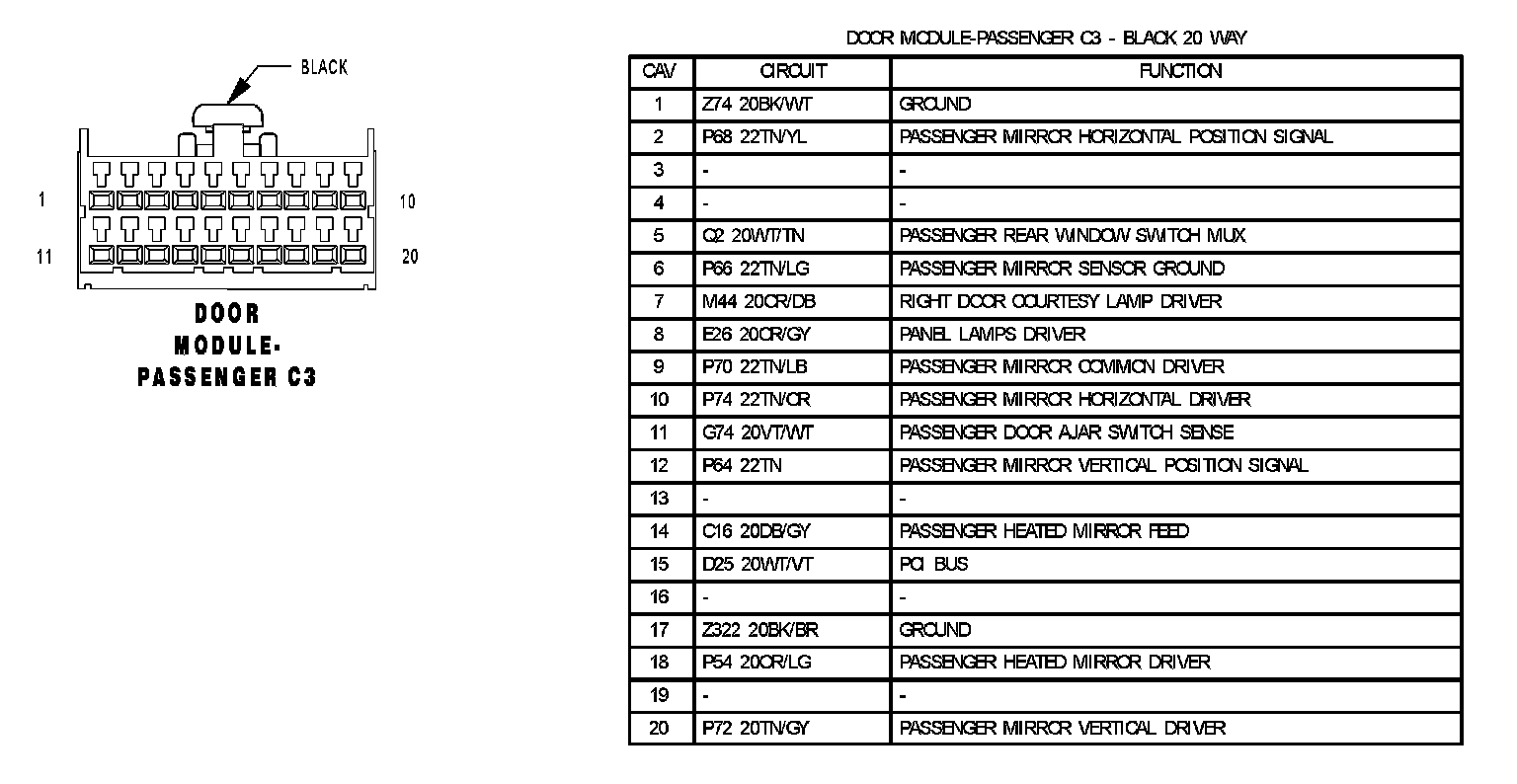

Door Module - Passenger C3:
