Driver Side View Mirror Movement Inoperative From Adjusting Switch

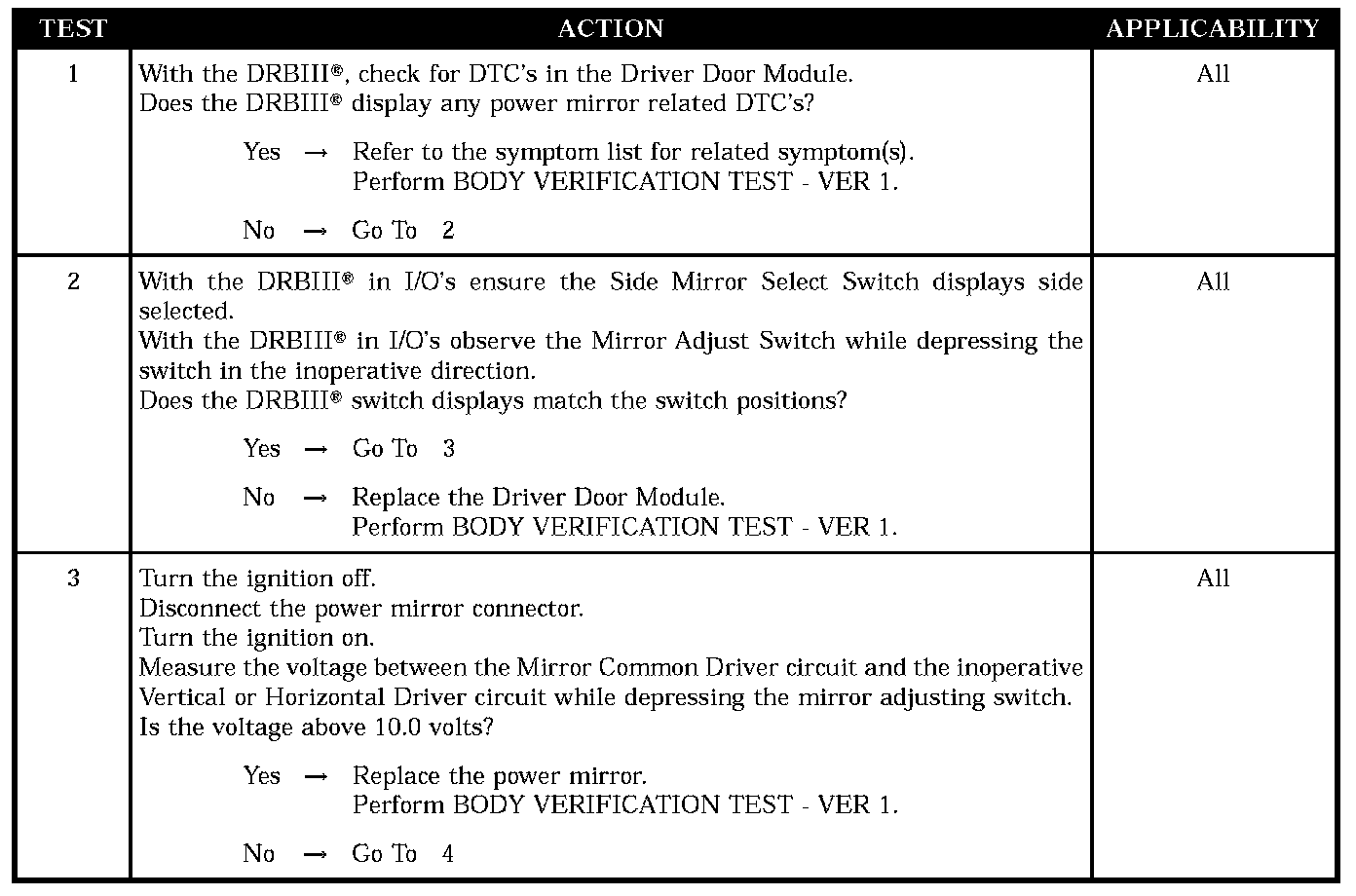

Test 1 - 3:




Test 4:






SYMPTOM
DRIVER SIDE VIEW MIRROR MOVEMENT INOPERATIVE FROM ADJUSTING SWITCH

POSSIBLE CAUSES
- DTC present
- Mirror adjusting switch
- Power mirror
- Mirror driver wire open
- Driver door module
