Front Blower Runs At Only One Speed - ATC

Test 1:

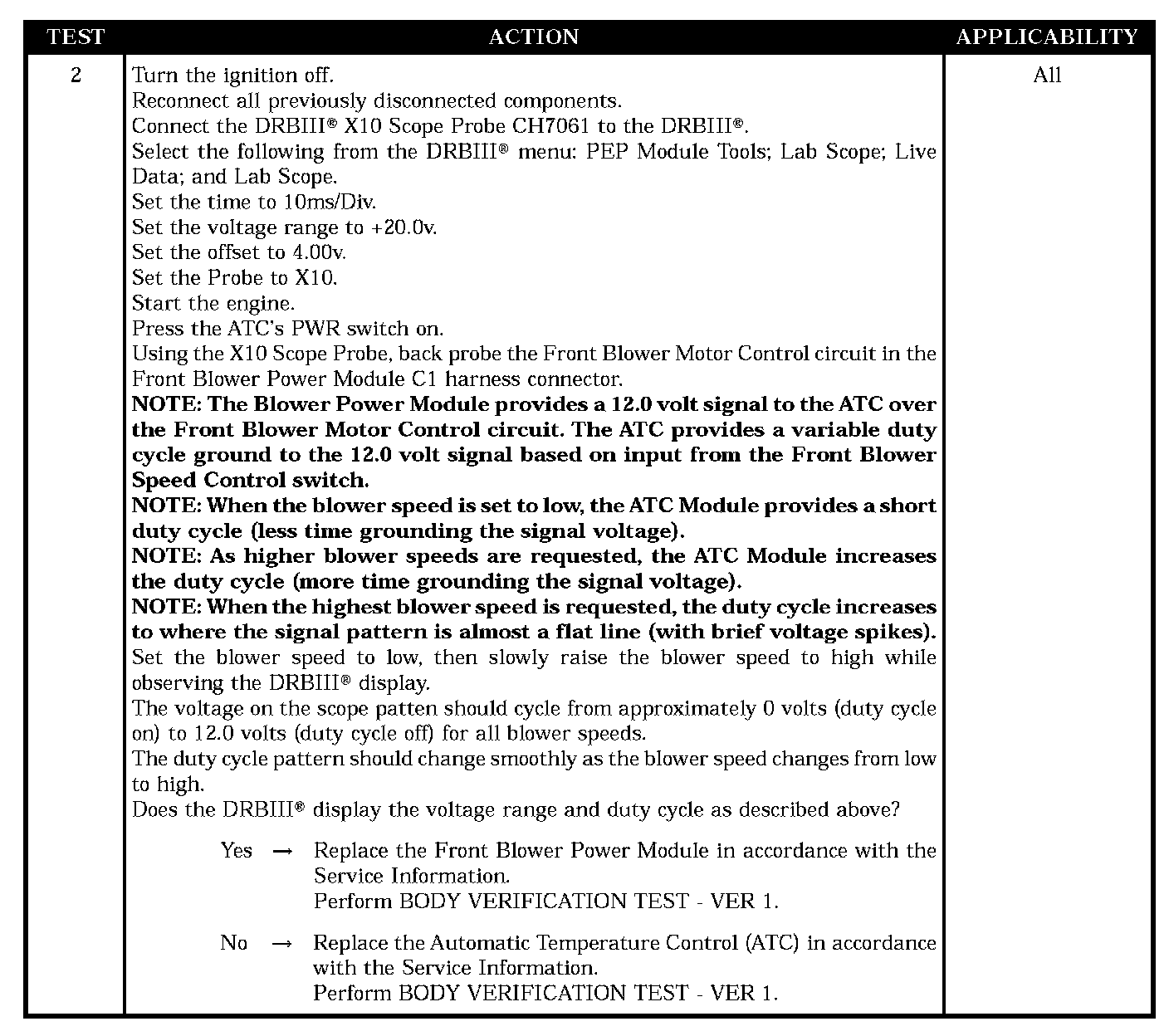

Test 2:






SYMPTOM
FRONT BLOWER RUNS AT ONLY ONE SPEED - ATC

POSSIBLE CAUSES
- Front blower motor control circuit shorted to ground
- Automatic temperature control (ATC)
- Front blower power module
