Power Liftgate Inoperative

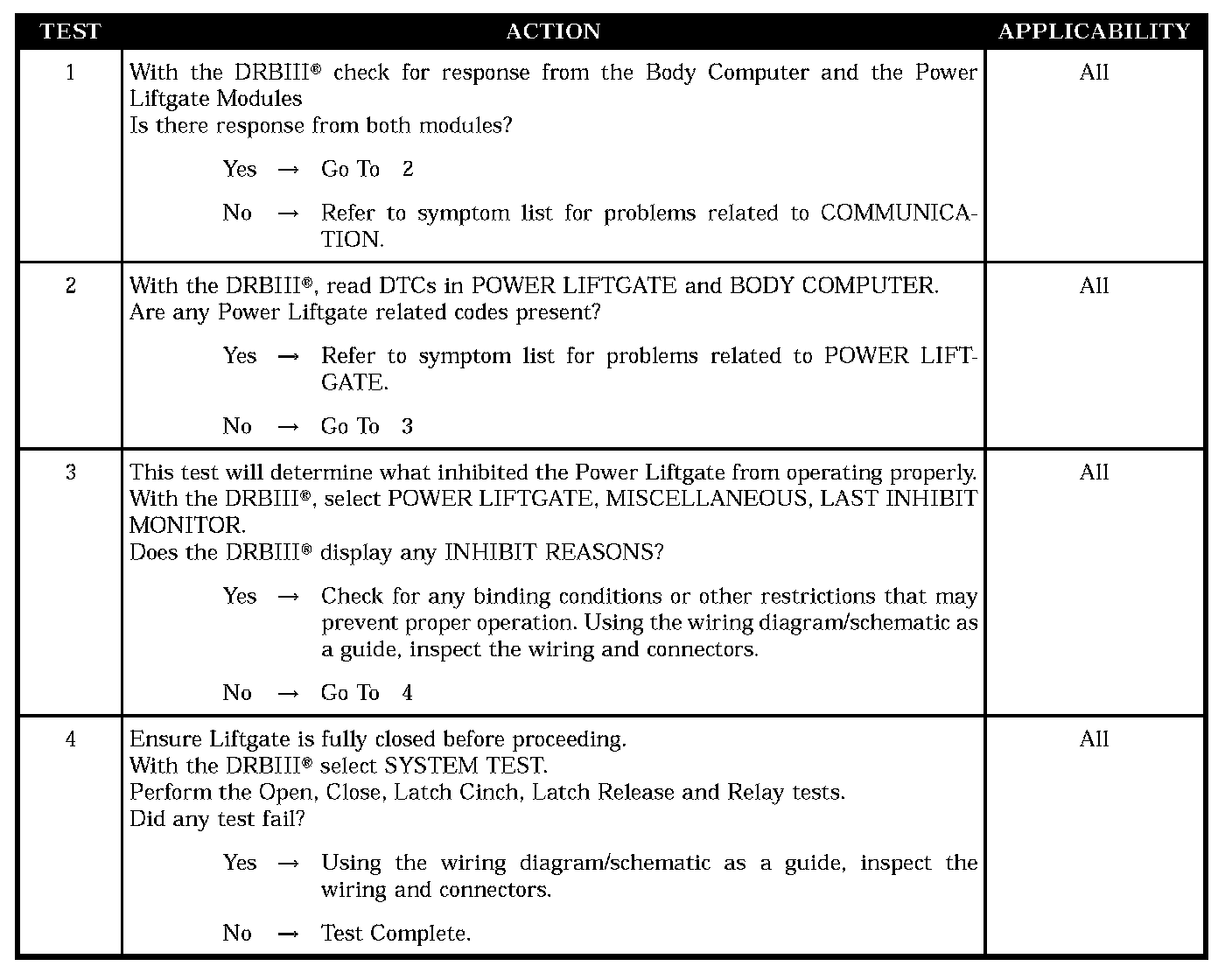

Test 1 - 4:






SYMPTOM
POWER LIFTGATE INOPERATIVE

POSSIBLE CAUSES
- DTC's present
- Module response
- Intermittent problem
- System tests
