No Response From Sentry Key Remote Entry Module

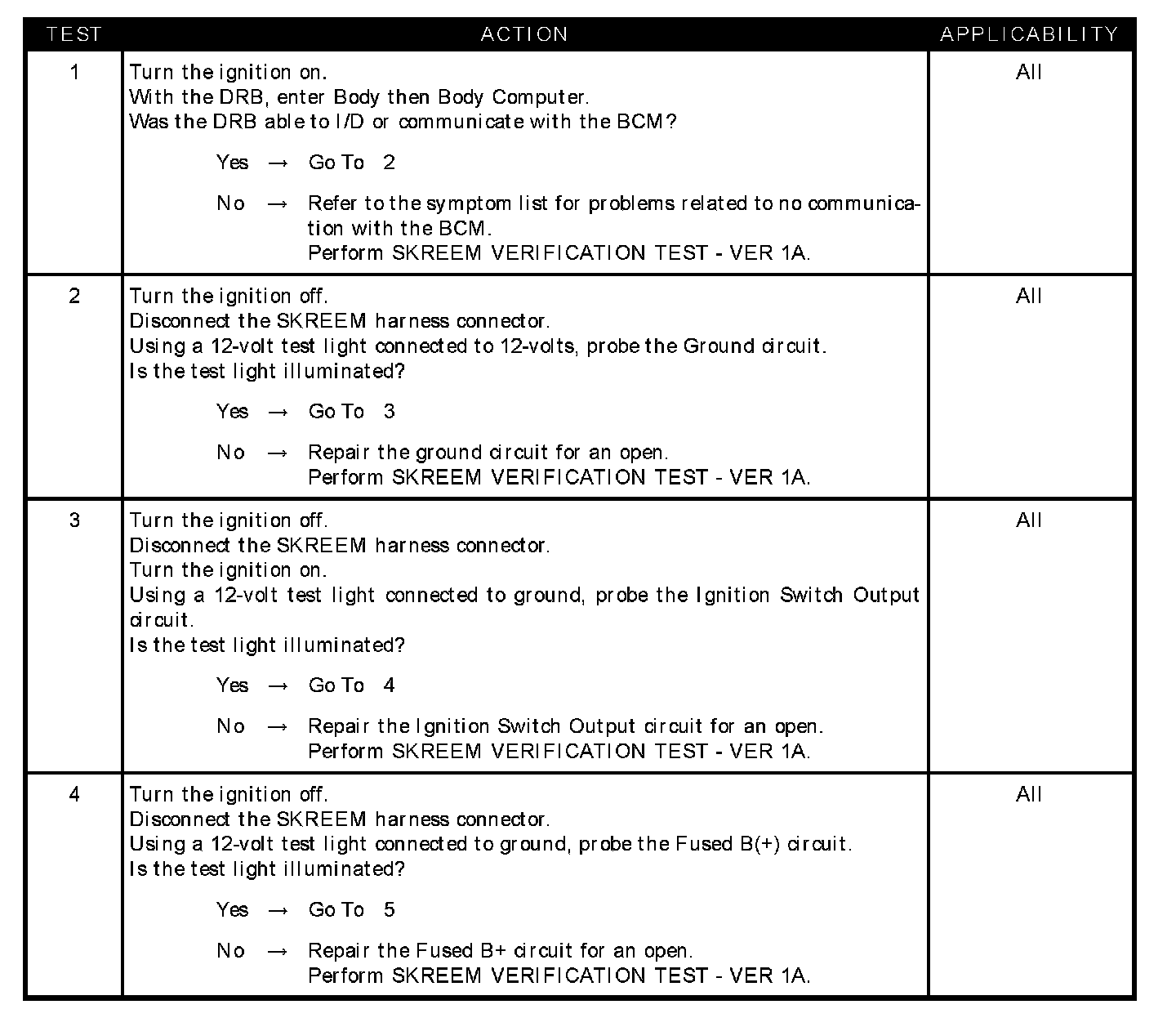

Test 1 - 4:

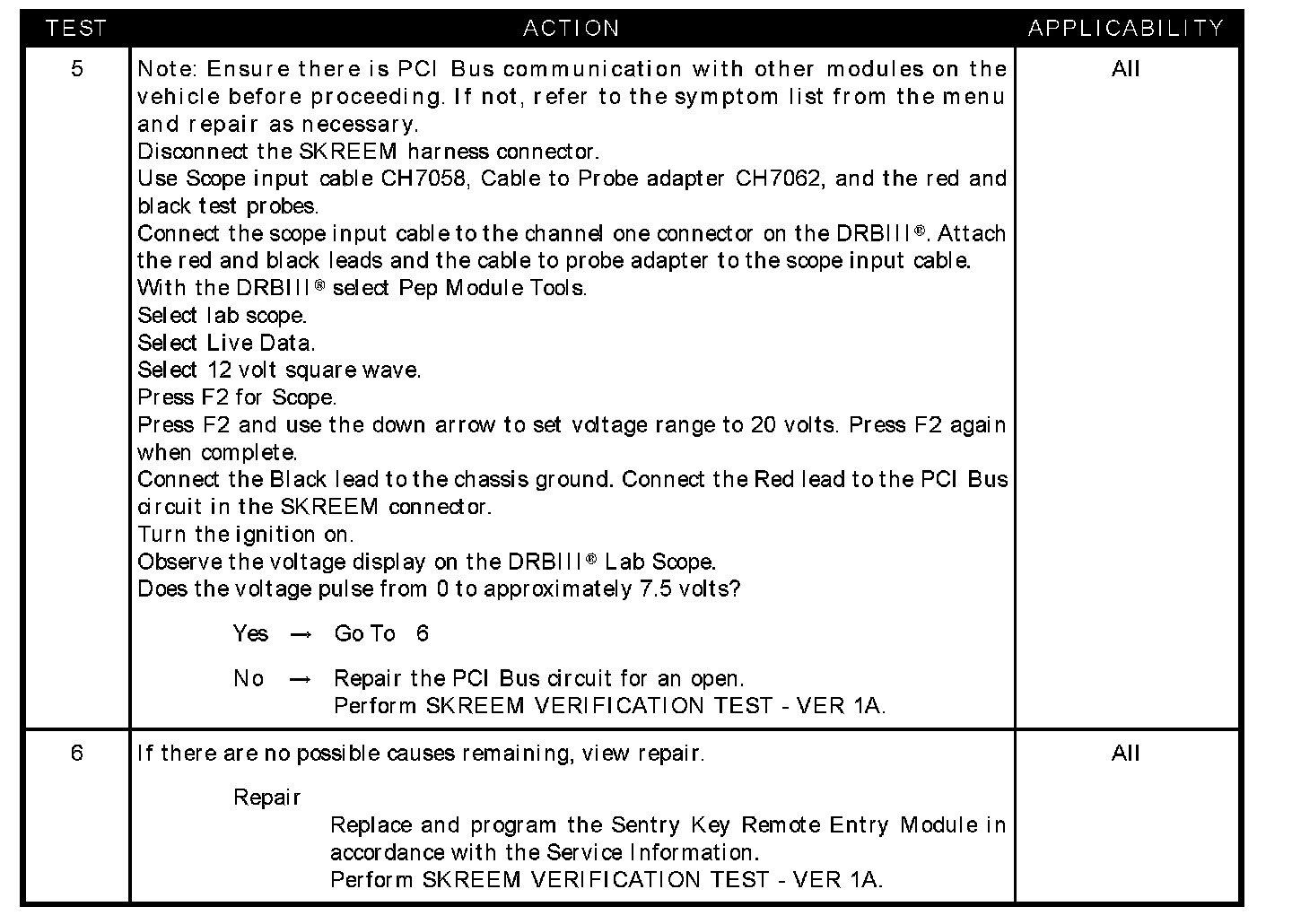

Test 5 - 6:

SYMPTOM
NO RESPONSE FROM SENTRY KEY REMOTE ENTRY MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Ground circuit open
- Ignition switch output circuit open
- Fused B(+) circuit open
- Open PCI bus circuit
- Sentry key remote entry module
