Disassembly And Assembly: Notes

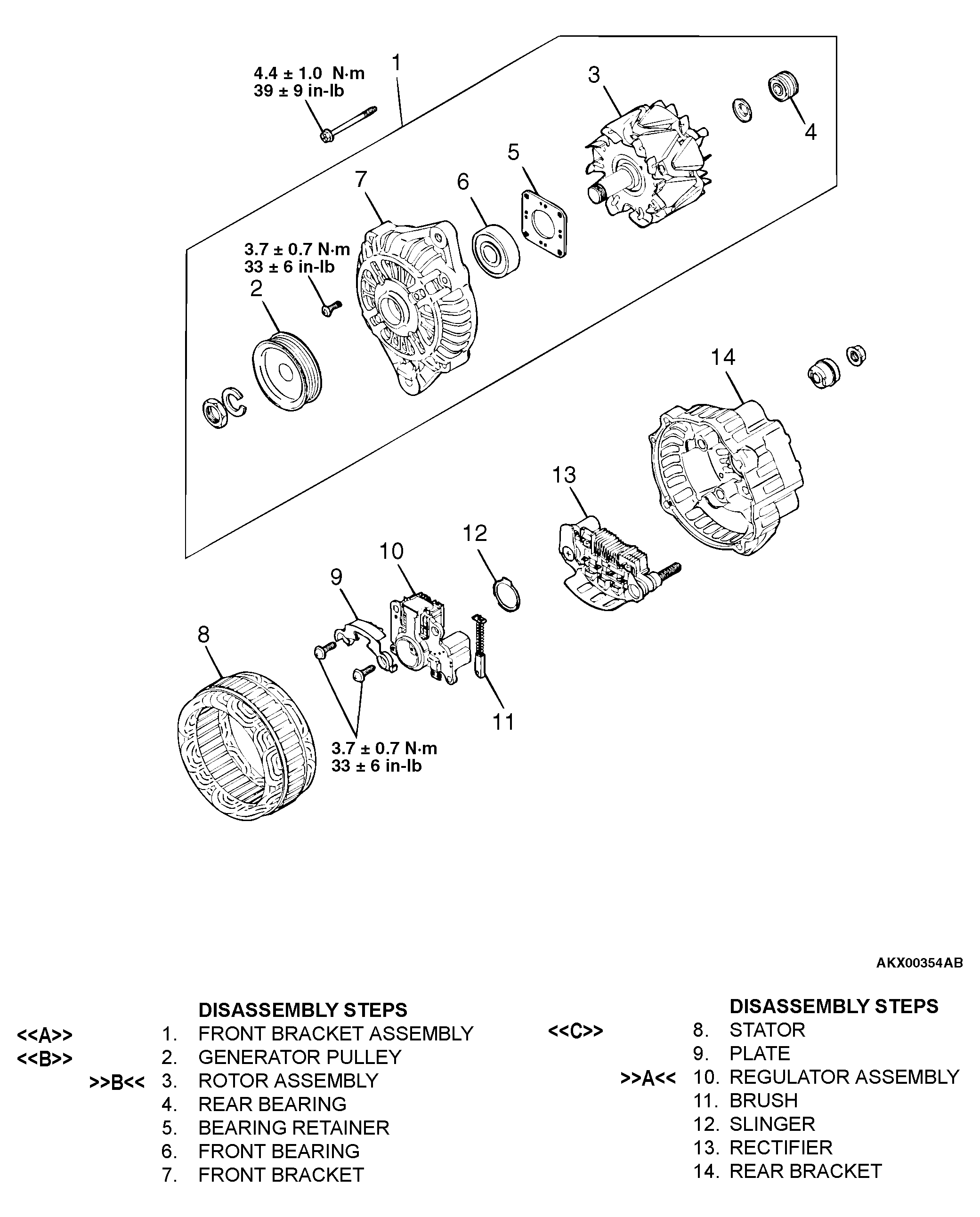

Fig 1: Exploded View Of Generator Components

G04537429

Courtesy of DAIMLERCHRYSLER CORPORATION
