Removal And Installation: Notes

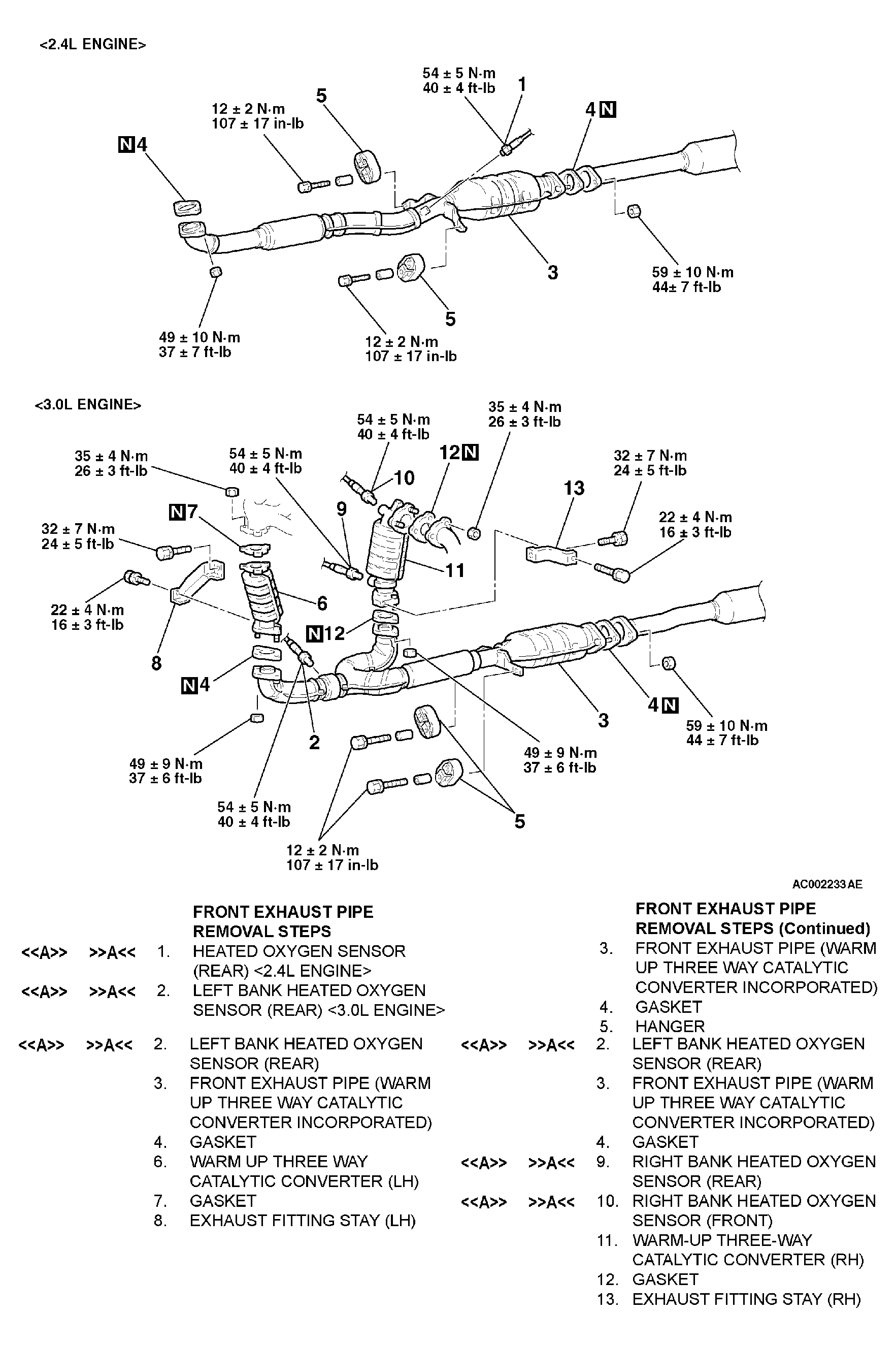

Fig 1: Removing & Installing Catalytic Converter
G04538811Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tool:
