Blower Motor Inoperative - ATC

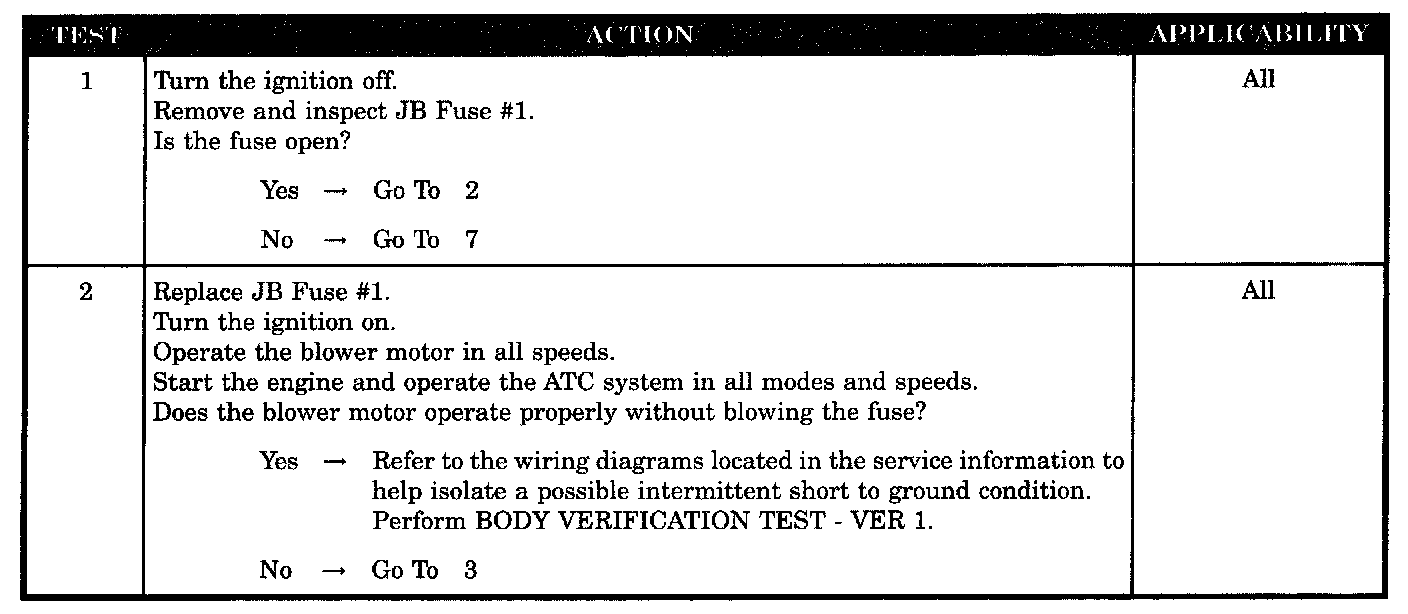

Test 1 - 2:

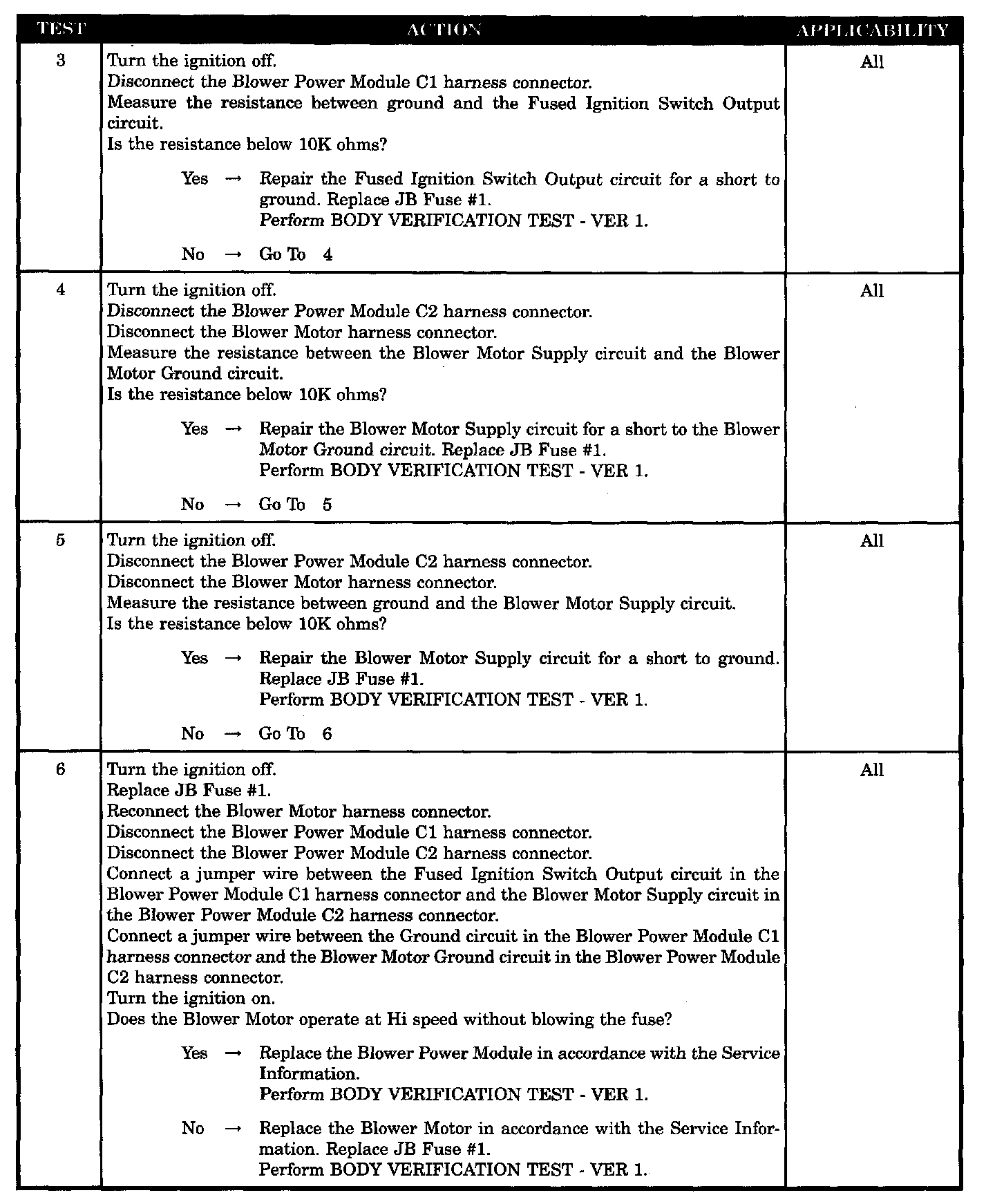

Test 3 - 6:

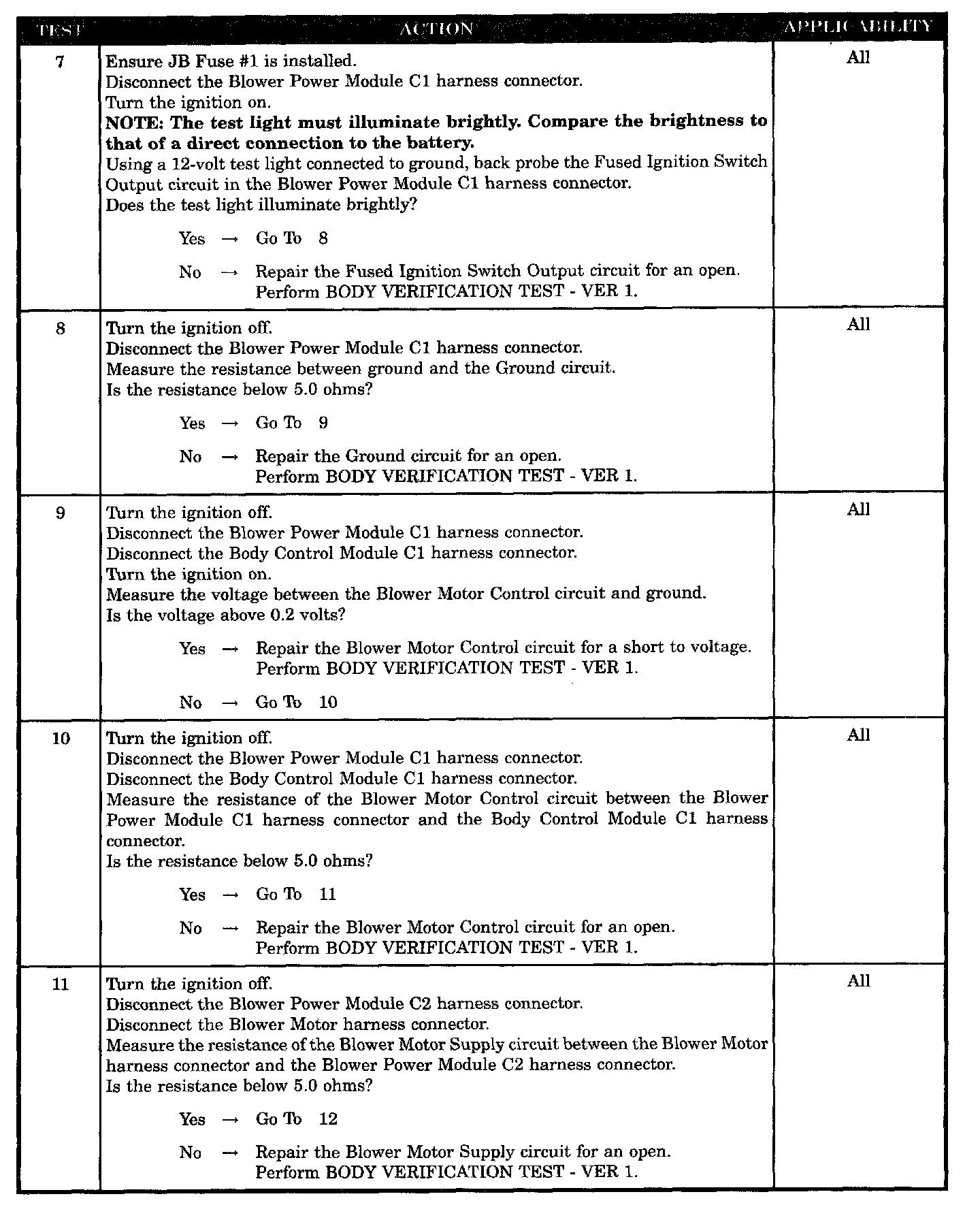

Test 7 - 11:

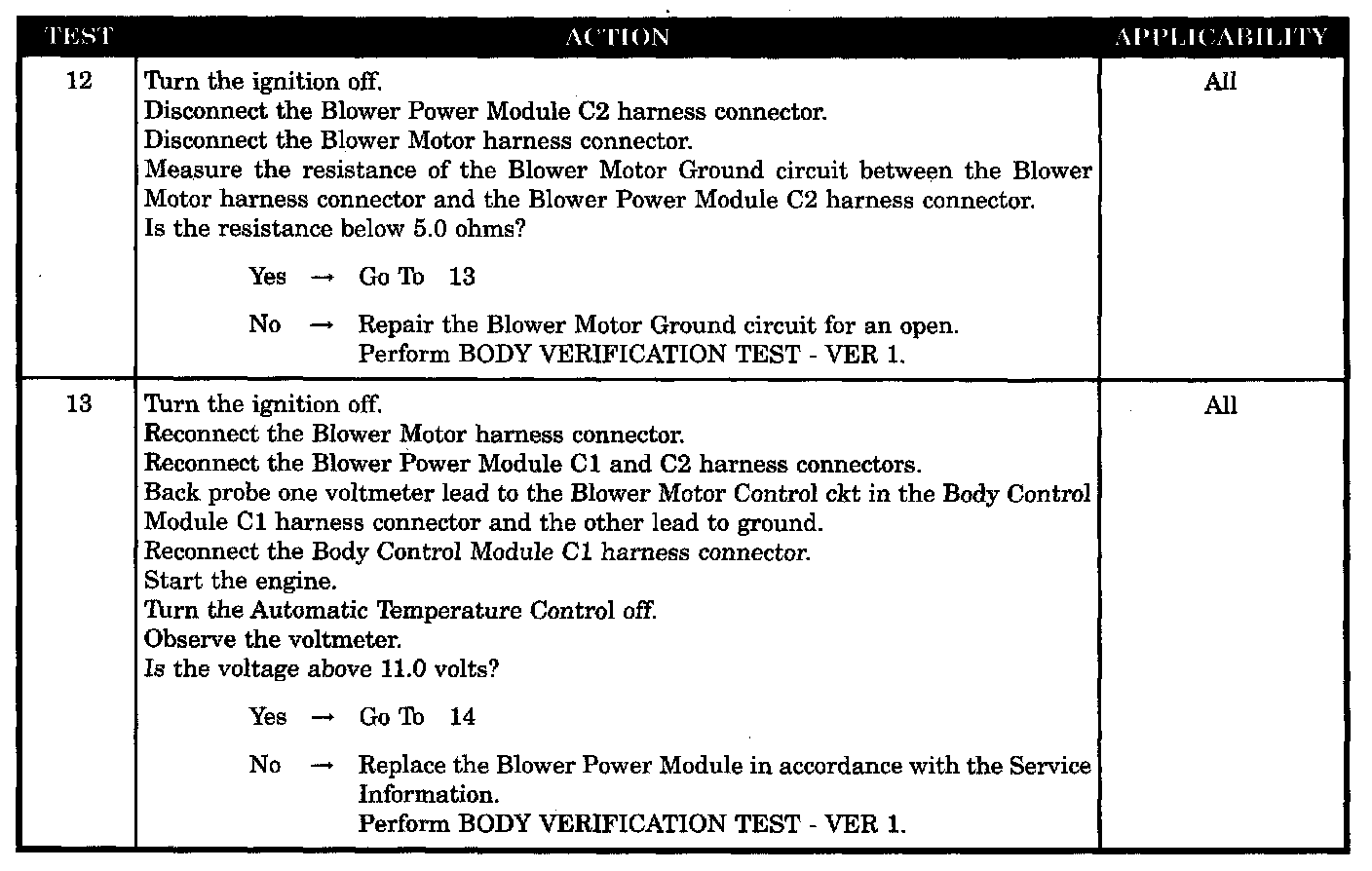

Test 12 - 13:

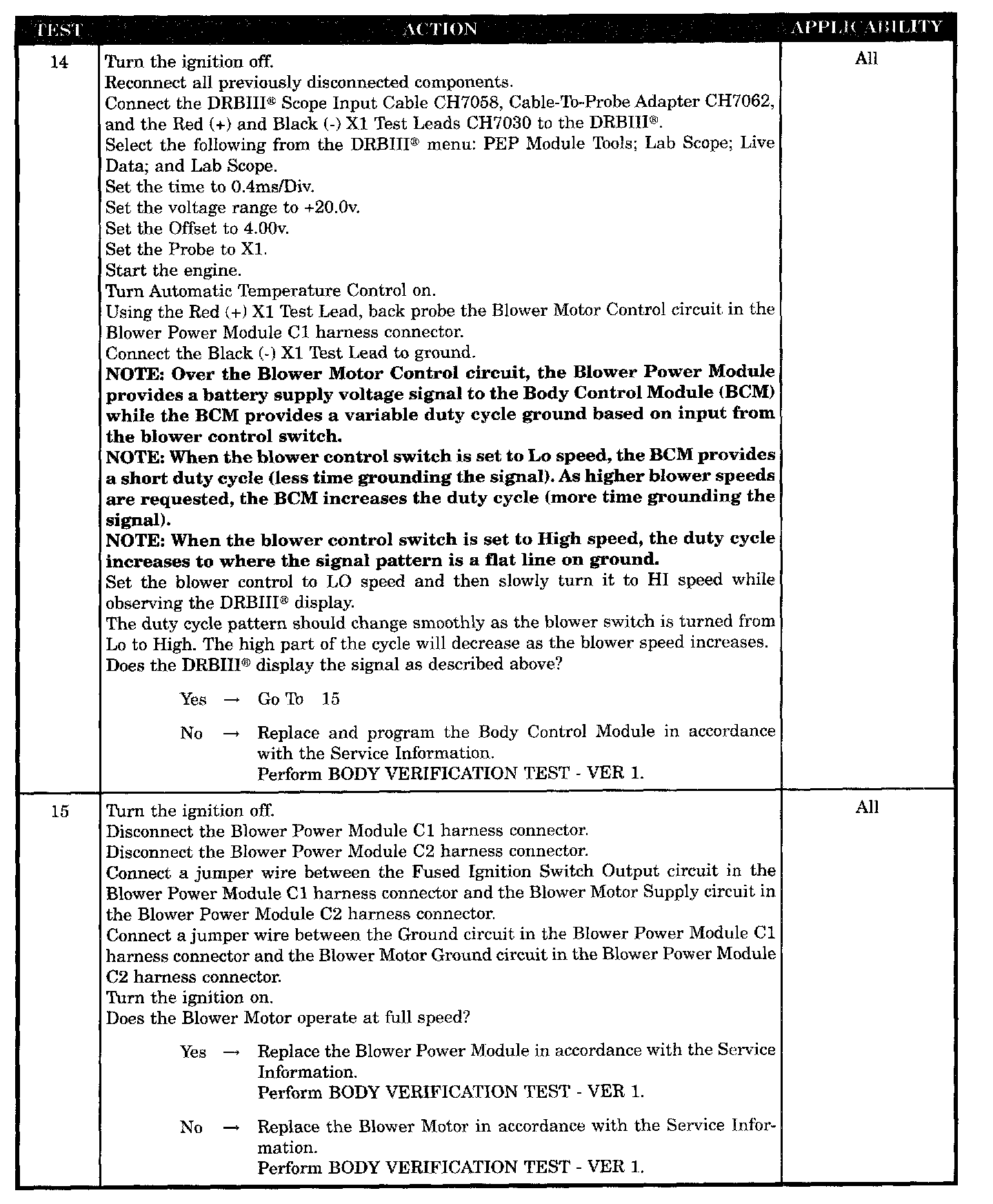

Test 14 - 15:

SYMPTOM
BLOWER MOTOR INOPERATIVE - ATC

POSSIBLE CAUSES
- JB fuse # 1
- Fused ignition switch output circuit shorted to ground
- Blower motor supply circuit shorted to blower motor ground circuit
- Blower motor supply circuit shorted to ground
- Blower motor shorted to ground
- Blower power module shorted to ground
- Fused ignition switch output circuit open
- Ground circuit open
- Blower motor control circuit shorted to voltage
- Blower motor control circuit open
- Blower motor supply circuit open
- Blower motor ground circuit open
- Blower power module
- Body control module
- Blower motor
- Blower power module
