High Beam Indicator Inoperative

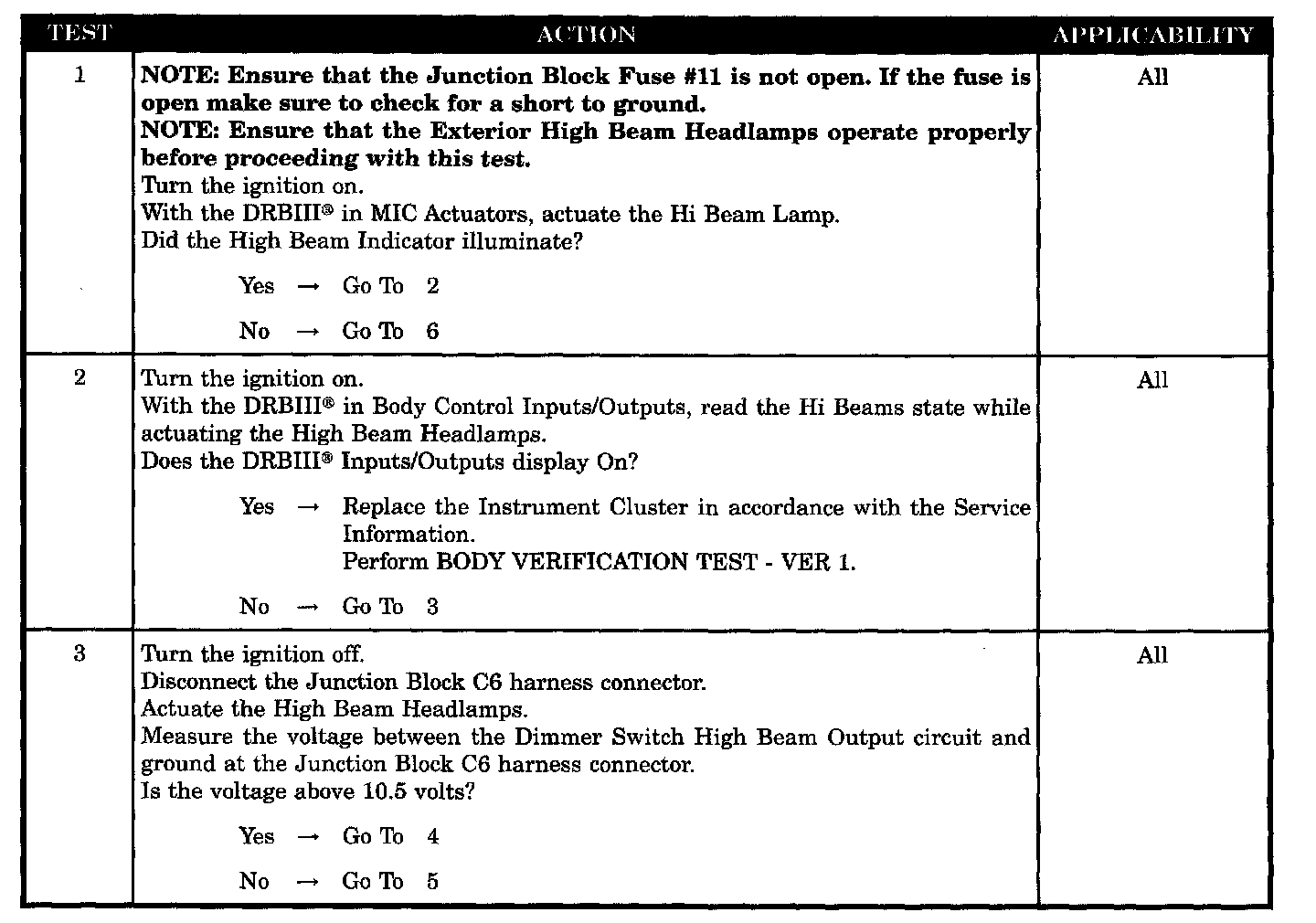

Test 1 - 3:

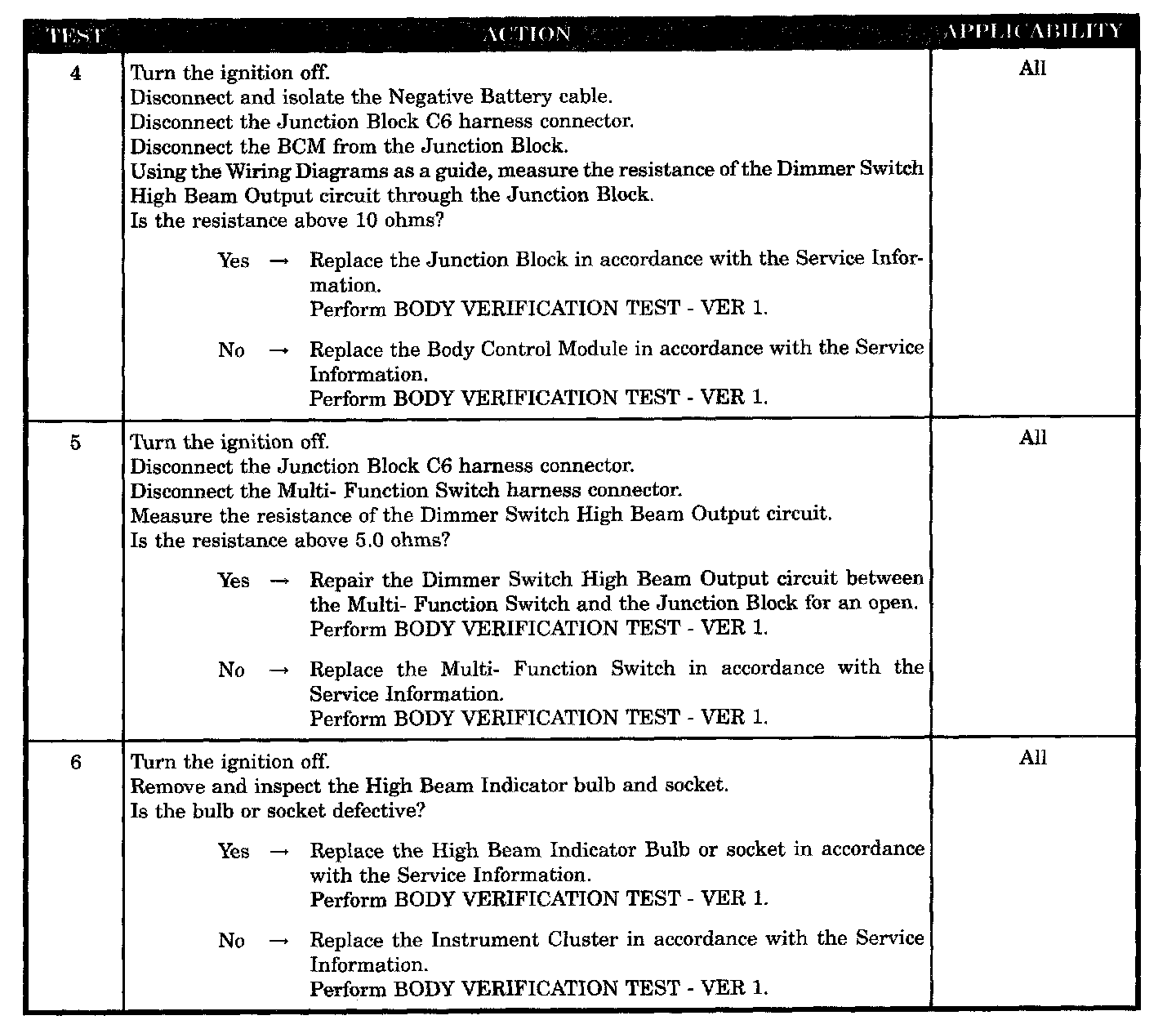

Test 4 - 6:






SYMPTOM
HIGH BEAM INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Indicator bulb
- Dimmer switch high beam output circuit open
- Body control module
- Junction block
- Multi- function switch open
- Instrument cluster
