Engine Mounting

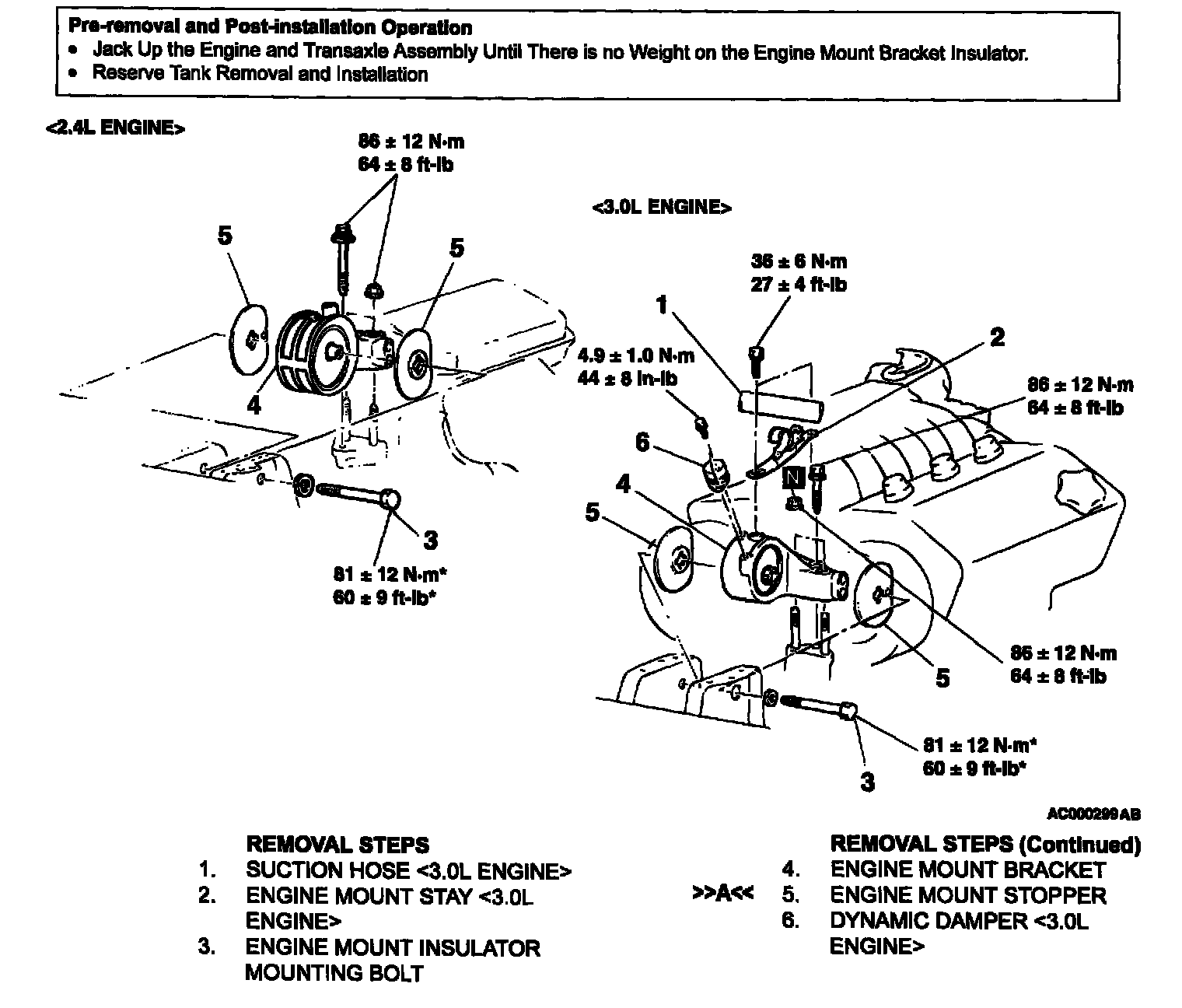

ENGINE MOUNTING





<2.4L ENGINE>

CAUTION: Mounting locations marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
