Home
>>
Chrysler
>>
2005
>>
Sebring Coupe L4-2.4L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Oil Pan, Engine
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

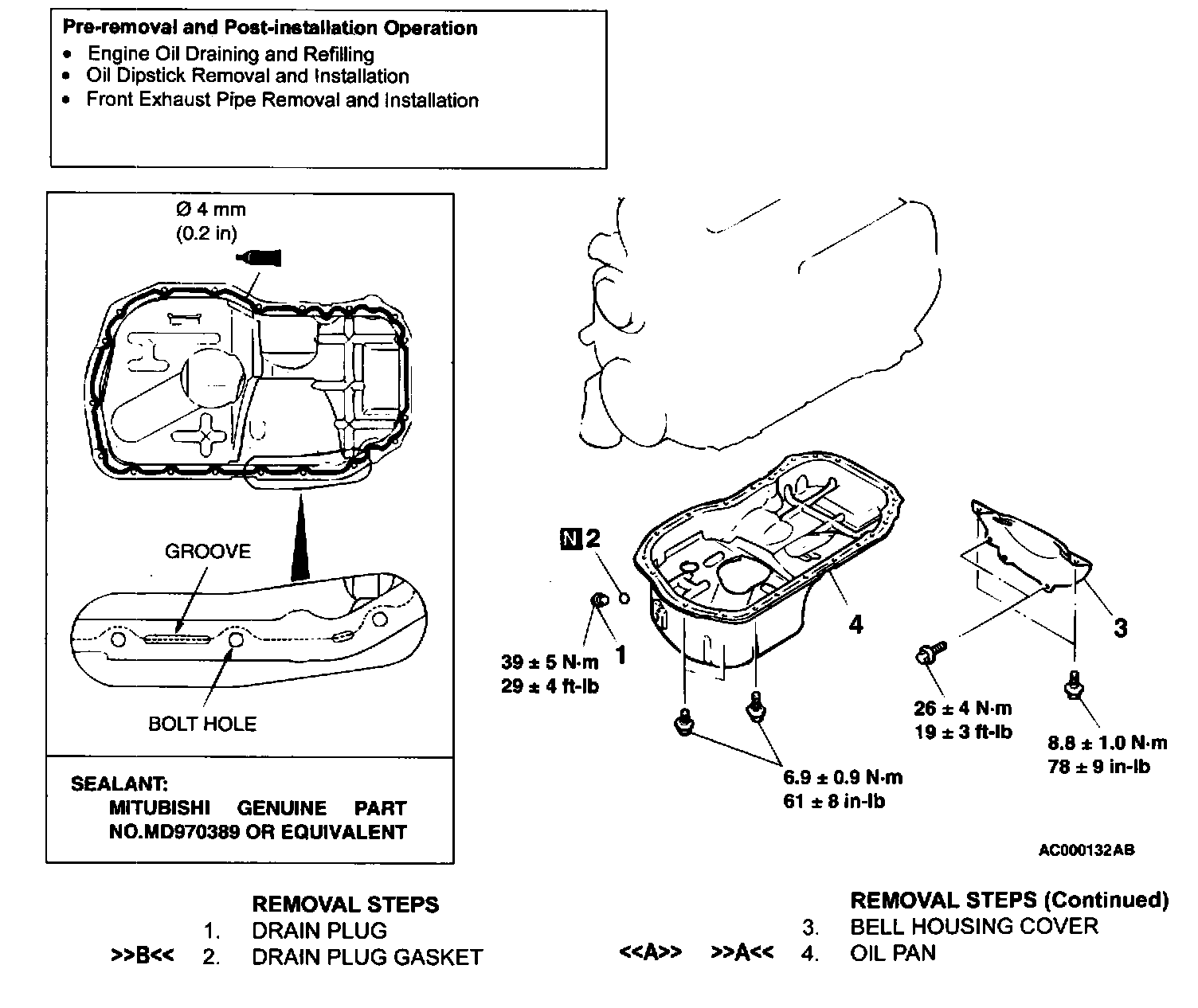

Oil Pan, Engine
OIL PAN
