Oil Pressure Sensor: Service and Repair

OIL PRESSURE SENSOR/SWITCH
REMOVAL
1. Raise vehicle.
2. Position oil collecting container under pressure switch location.

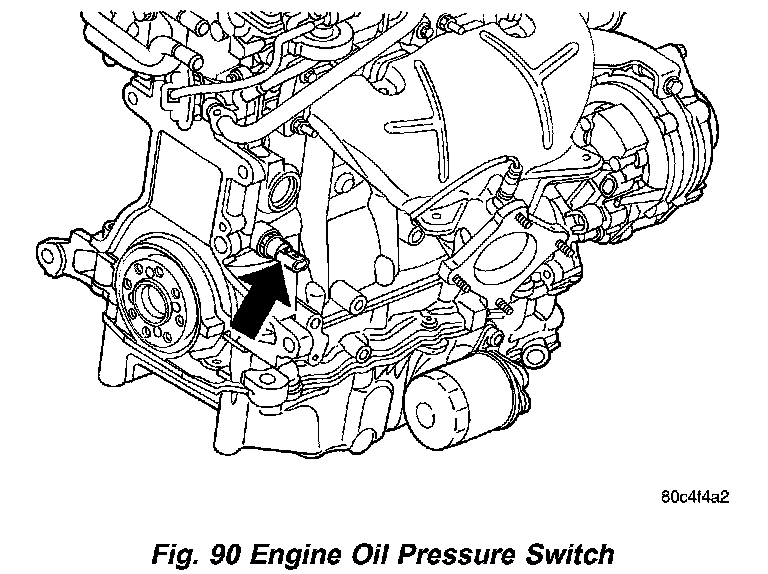

3. Disconnect oil pressure switch electrical connector and remove switch (Fig. 90).

INSTALLATION
1. Install oil pressure switch and connect electrical connector (Fig. 90).
2. Lower vehicle.
3. Start engine and allow to run a minimum of 2 minutes.
4. Shut engine off and check engine oil level. Adjust level as necessary.
