Sensor-Front Wheel Speed: Installation: AWD

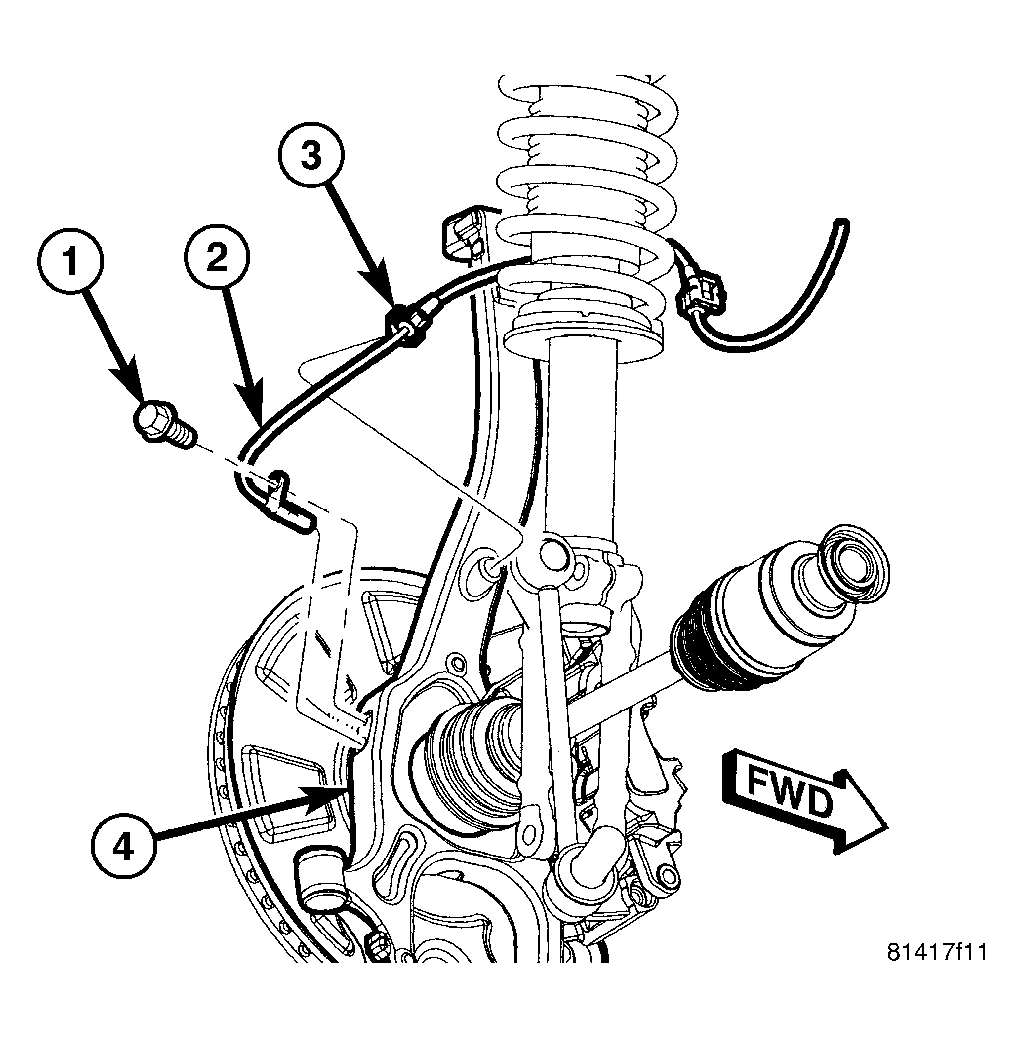

Fig 1: Wheel Speed Sensor At Front Knuckle - AWD

Courtesy of DAIMLERCHRYSLER CORP.

Install wheel speed sensor (2) head into knuckle (4) and install mounting screw (1). Tighten screw to 11 N.m (95 in. lbs.) torque.
Attach wheel speed sensor cable and routing clip (3) to knuckle (4).

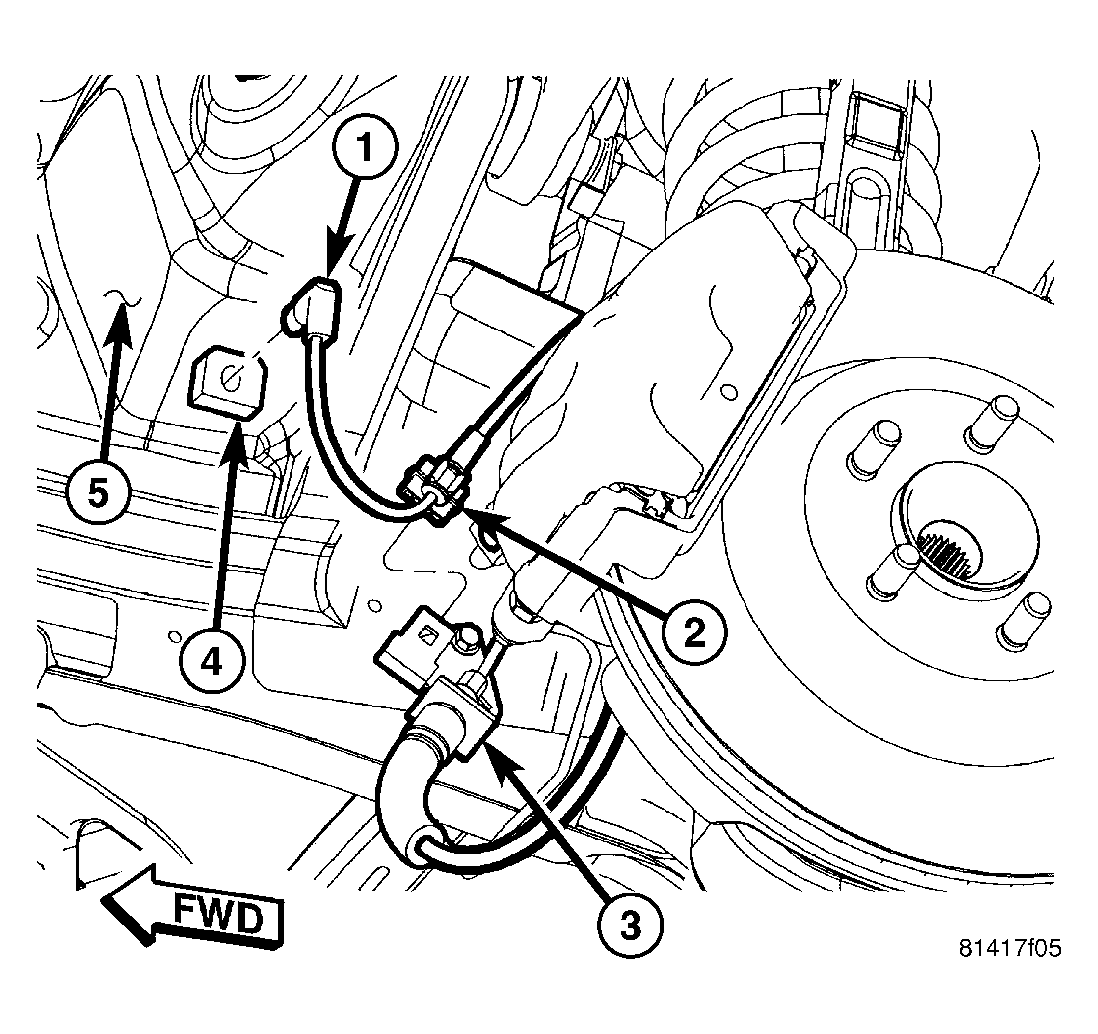

Fig 2: Wheel Speed Sensor at Body - AWD
Courtesy of DAIMLERCHRYSLER CORP.
Attach sensor cable routing clip (2) to brake hose bracket (3).
Connect sensor connector (1) to body wiring harness connector (4). When installing connector, make sure retaining clip on body connector is properly in place and sensor connect cannot be pulled out.
Lower vehicle.
Perform Verification Test and clear any faults. (Refer to BRAKES - DIAGNOSIS AND TESTING)
