Sensor-Rear Wheel Speed: Removal

Raise and support vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)

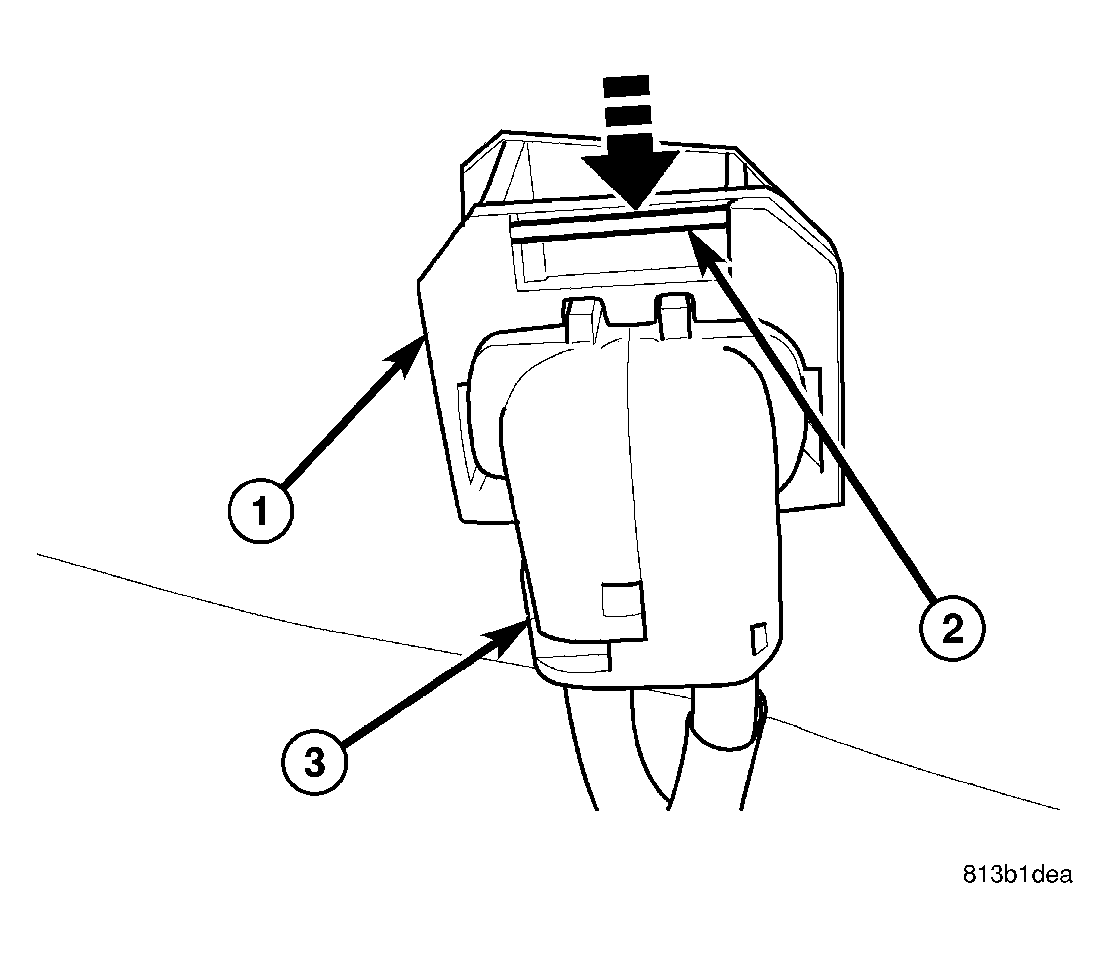

Fig 1: Releasing Wheel Speed Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: To release sensor connector from body wiring harness connector (1) in following step, move retaining clip (2) as indicated here, then pull sensor connector (3) outward.

Fig 2: Sensor Connection to Body Connector
Courtesy of DAIMLERCHRYSLER CORP.
Remove sensor connectors (3 and 4) from body wiring harness connector (1) located in luggage compartment floor pan (2).
Separate left sensor connector (4) from right sensor connector (3).

Fig 3: Left/Right Rear Wheel Speed Sensor Routing
Courtesy of DAIMLERCHRYSLER CORP.
If removing left sensor, unclip sensor cable (3) from routing clip near body connector (1).

Fig 4: Left WSS Routing Over Rear Differential
Courtesy of DAIMLERCHRYSLER CORP.
If removing left sensor, unclip sensor cable (1) from routing clips (2) along rear of crossmember near rear differential (3).

Fig 5: WSS Routing Along Left Toe Link
Courtesy of DAIMLERCHRYSLER CORP.
If removing left sensor, unclip sensor cable (2) from routing clip (1) above toe link mount on rear crossmember.
Unclip sensor cable (2) from routing clips (3) along toe link.

Fig 6: Wheel Speed Sensor t Rear Knuckle
Courtesy of DAIMLERCHRYSLER CORP.
Unclip sensor cable at rear brake rotor shield (1).
Remove screw (2) fastening sensor head (3) to rear knuckle.
Remove wheel speed sensor.
