Speed Control: Servo: Installation: Servo

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cable Retaining Clip

Courtesy of CHRYSLER LLC

1 - HAIRPIN CLIP

Install hairpin clip to servo and cable. See Fig 1.

Fig 2: Throttle Cable Attachment To Throttle Body
Courtesy of CHRYSLER LLC
Install servo studs through cable bell and then the bracket.
Install nuts, tighten to 7 N.m (60 in. lbs.).
Install speed control cable to throttle cam. Refer to INSTALLATION .

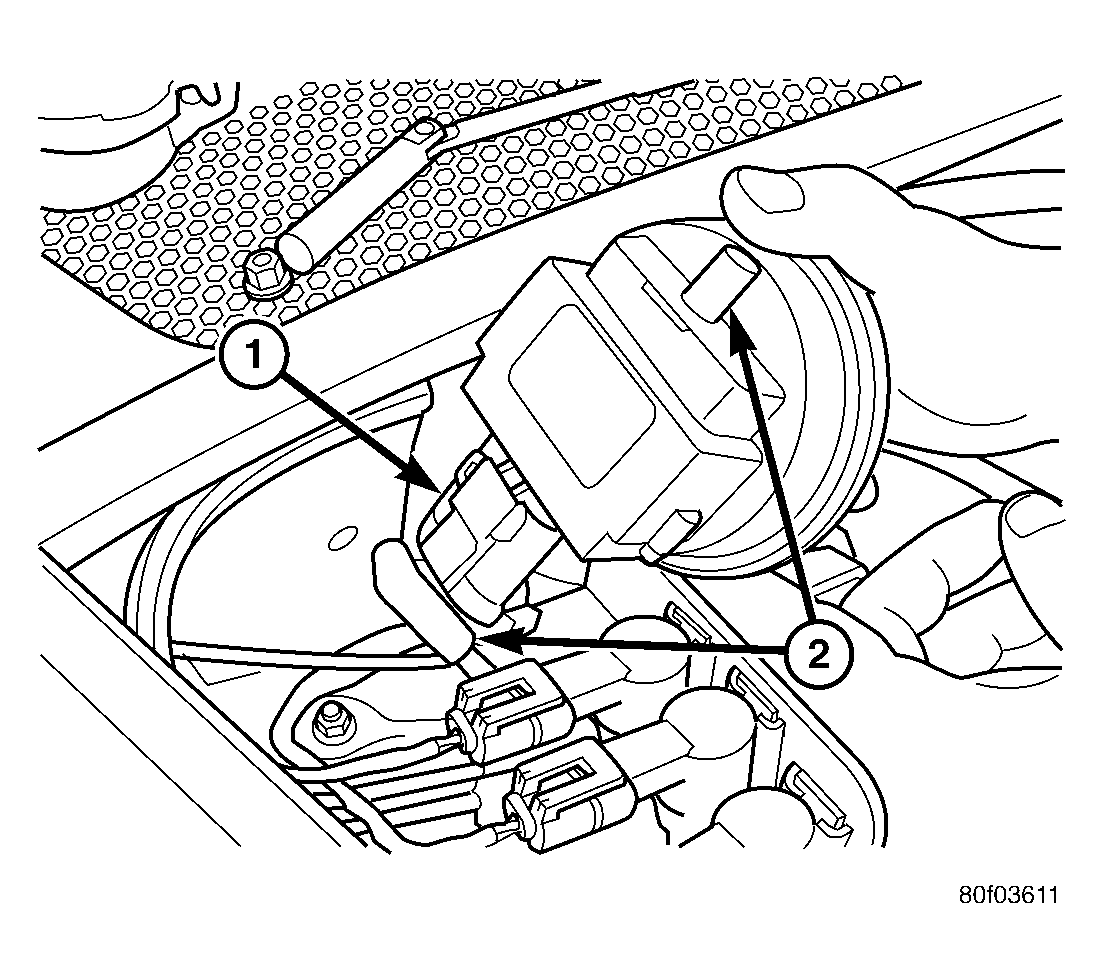

Fig 3: Servo Vacuum & Electrical Connections
Courtesy of CHRYSLER LLC

1 - Electrical Connector

2 - Vacuum Line and Nipple
Connect electrical connector.
Connect the vacuum hose to servo.
Install the engine cover.

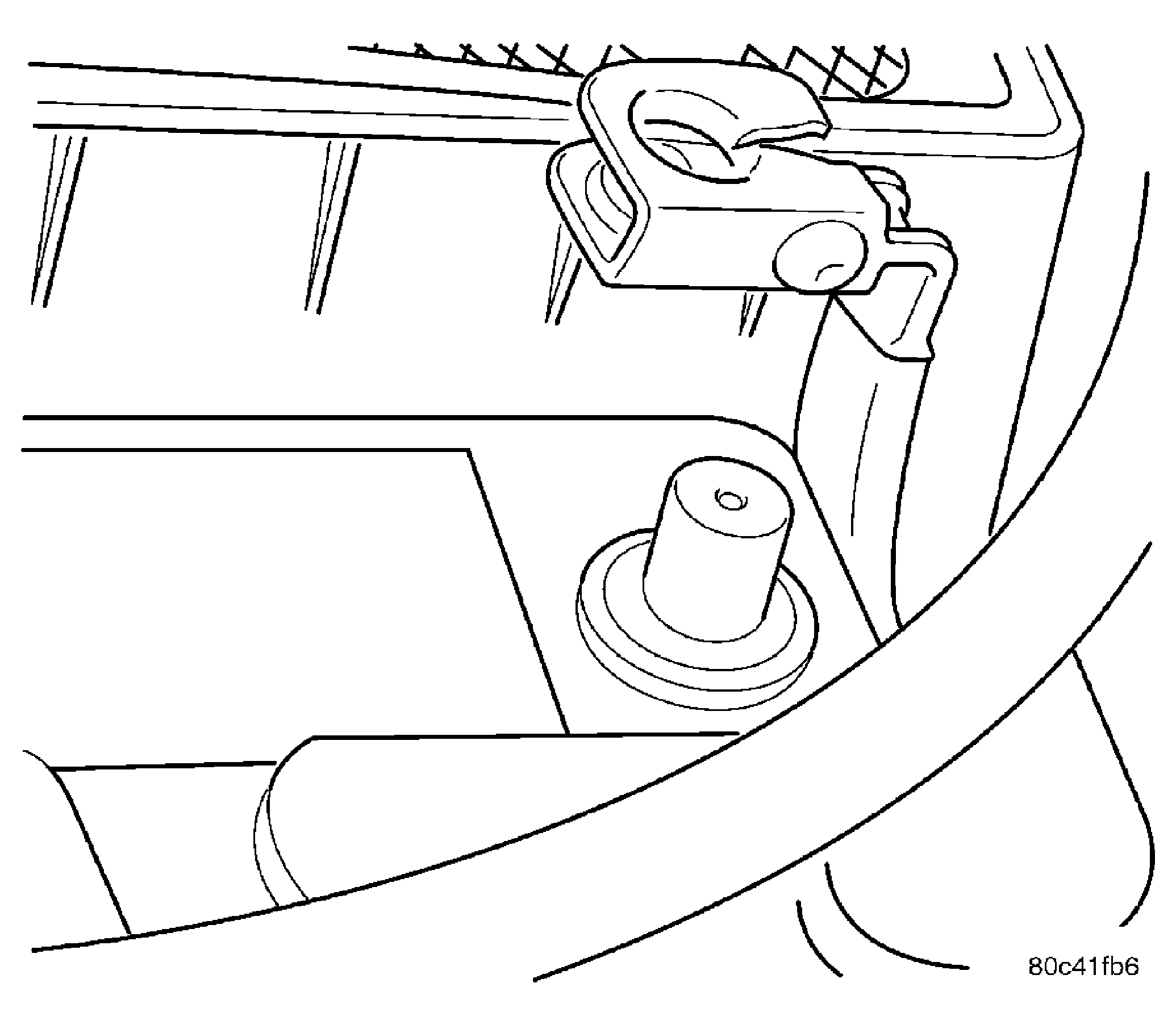

Fig 4: Identifying Battery Negative Cable
Courtesy of CHRYSLER LLC
Install the negative battery cable.
Install the air cleaner lid and makeup air hose.
