Engine Block Heater: Removal: Notes

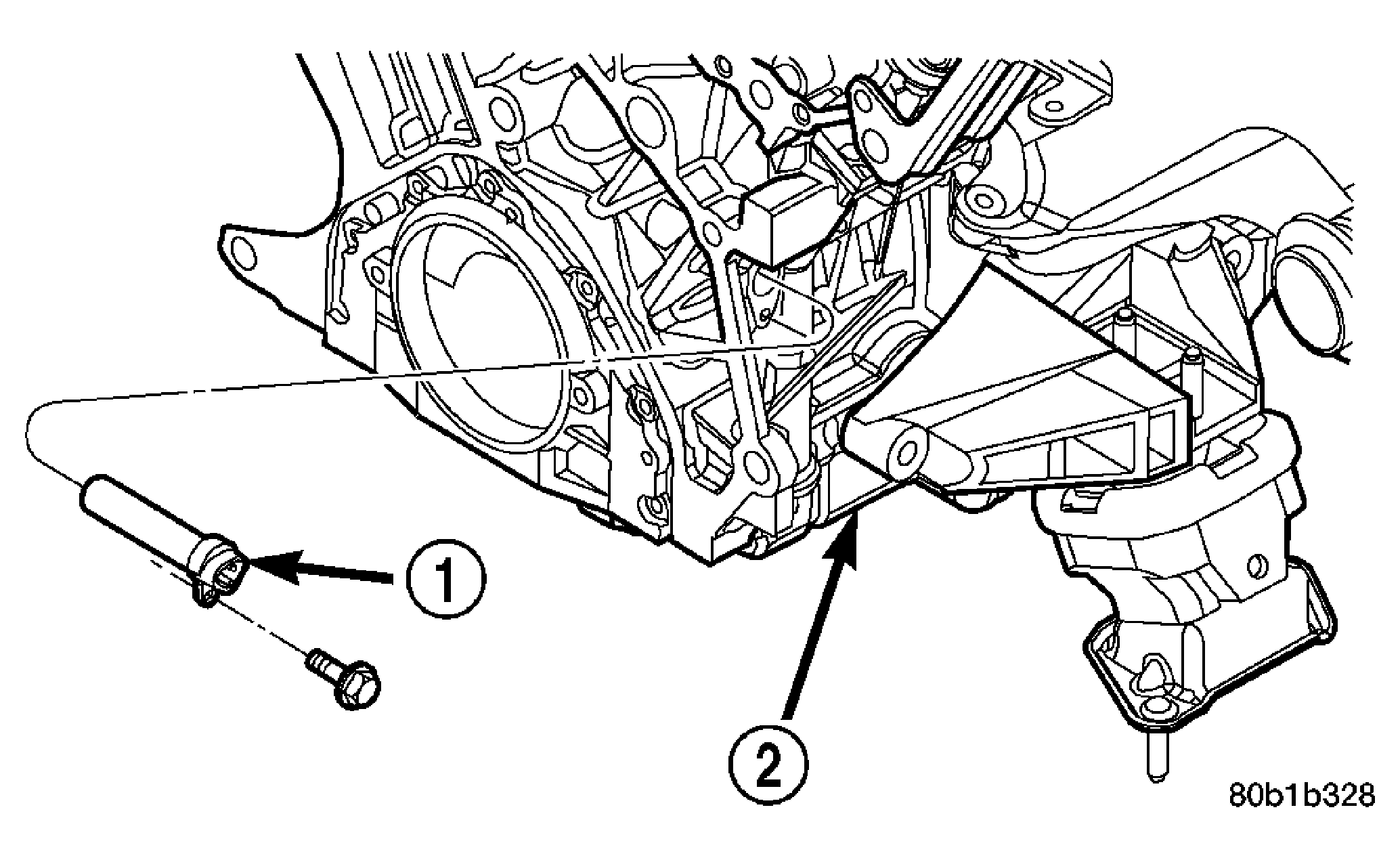

Fig 1: Engine Block Heater
GC0014696Courtesy of DAIMLERCHRYSLER CORP.
1 - BLOCK HEATER
2 - ENGINE - RIGHT SIDE
  1. Raise vehicle on hoist.
  2. Detach power cord plug from block heater (1).
  3. Remove block heater attaching screw located below heater terminals.
  4. Remove block heater from cylinder block (2).
