3.5L Engine

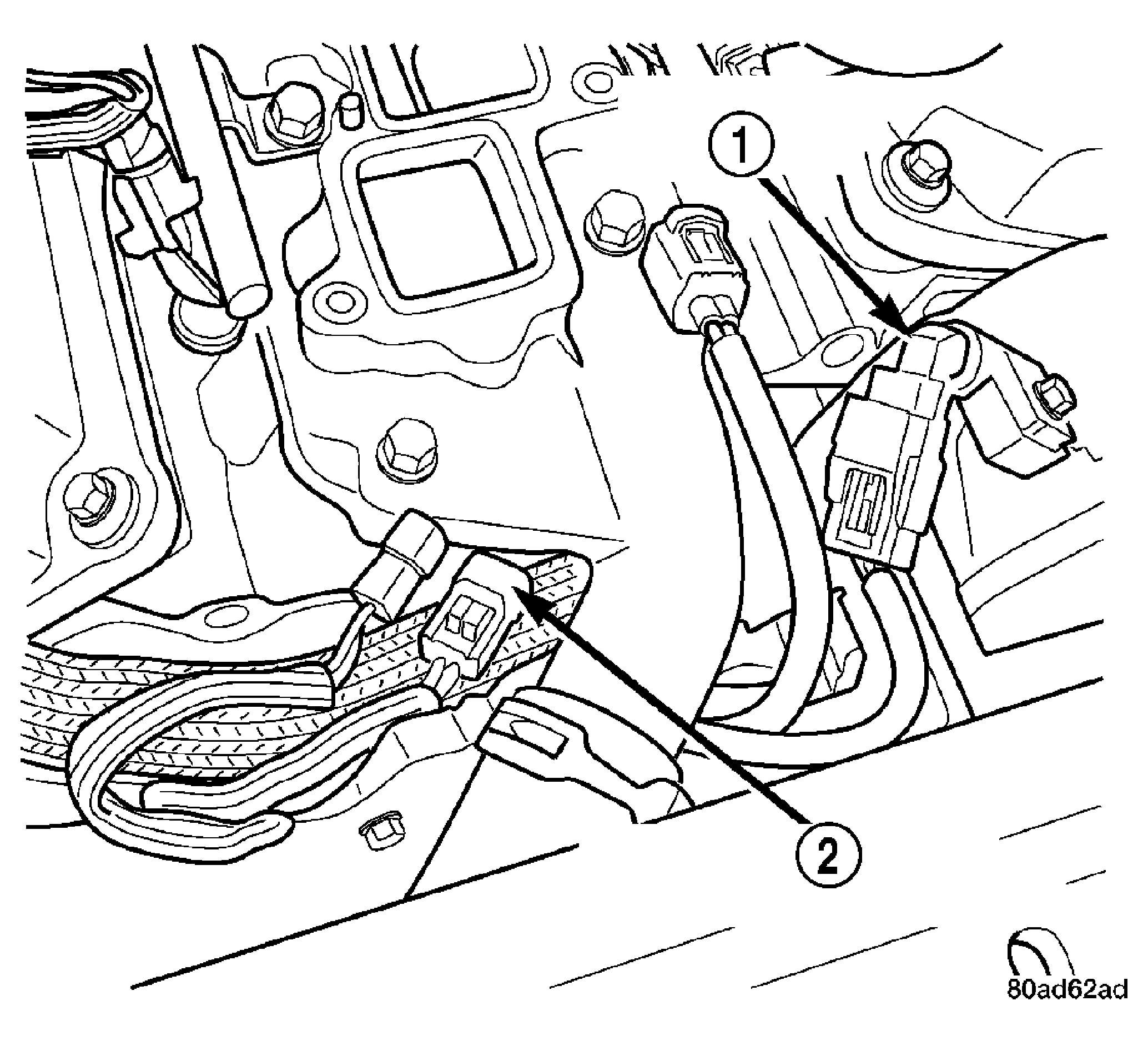

Fig 1: Engine Coolant Temperature Sensor - 3.5L
GC0014702Courtesy of DAIMLERCHRYSLER CORP.
1 - CAMSHAFT POSITION SENSOR
2 - ENGINE COOLANT TEMPERATURE SENSOR
  1. Install engine coolant temperature sensor (2). Tighten sensor to 28 N.m (20 ft. lbs.) torque.
  2. Attach electrical connector to sensor.
  3. Connect negative battery cable.
