3.5L Engine

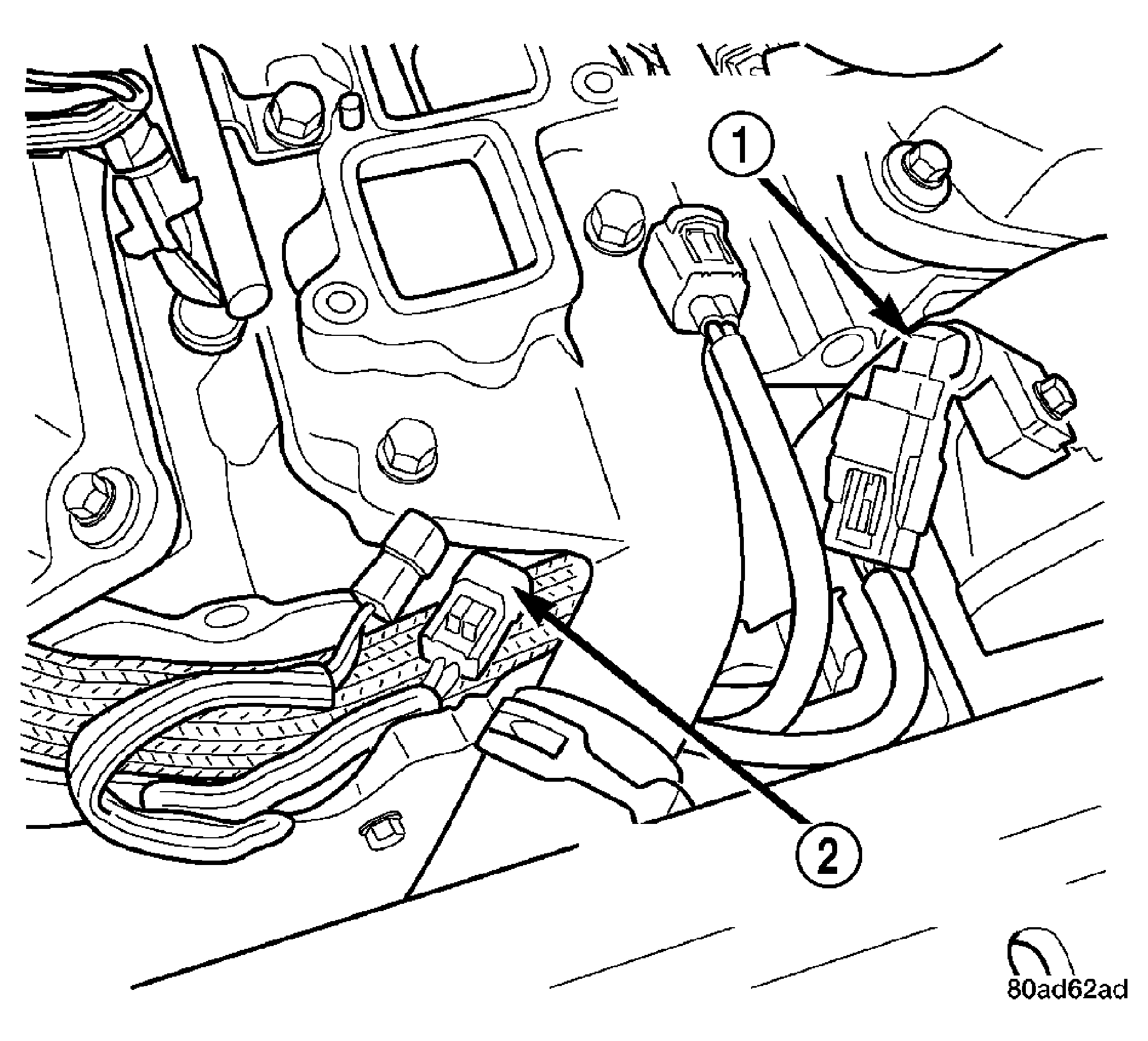

Fig 1: Engine Coolant Temperature Sensor - 3.5L
GC0014701Courtesy of DAIMLERCHRYSLER CORP.
1 - CAMSHAFT POSITION SENSOR
2 - ENGINE COOLANT TEMPERATURE SENSOR
  1. Disconnect negative battery cable.
  2. Partially drain cooling system (Refer to COOLING - STANDARD PROCEDURE) .
  3. With the engine cold, disconnect coolant sensor electrical connector.
  4. Remove sensor (2).
